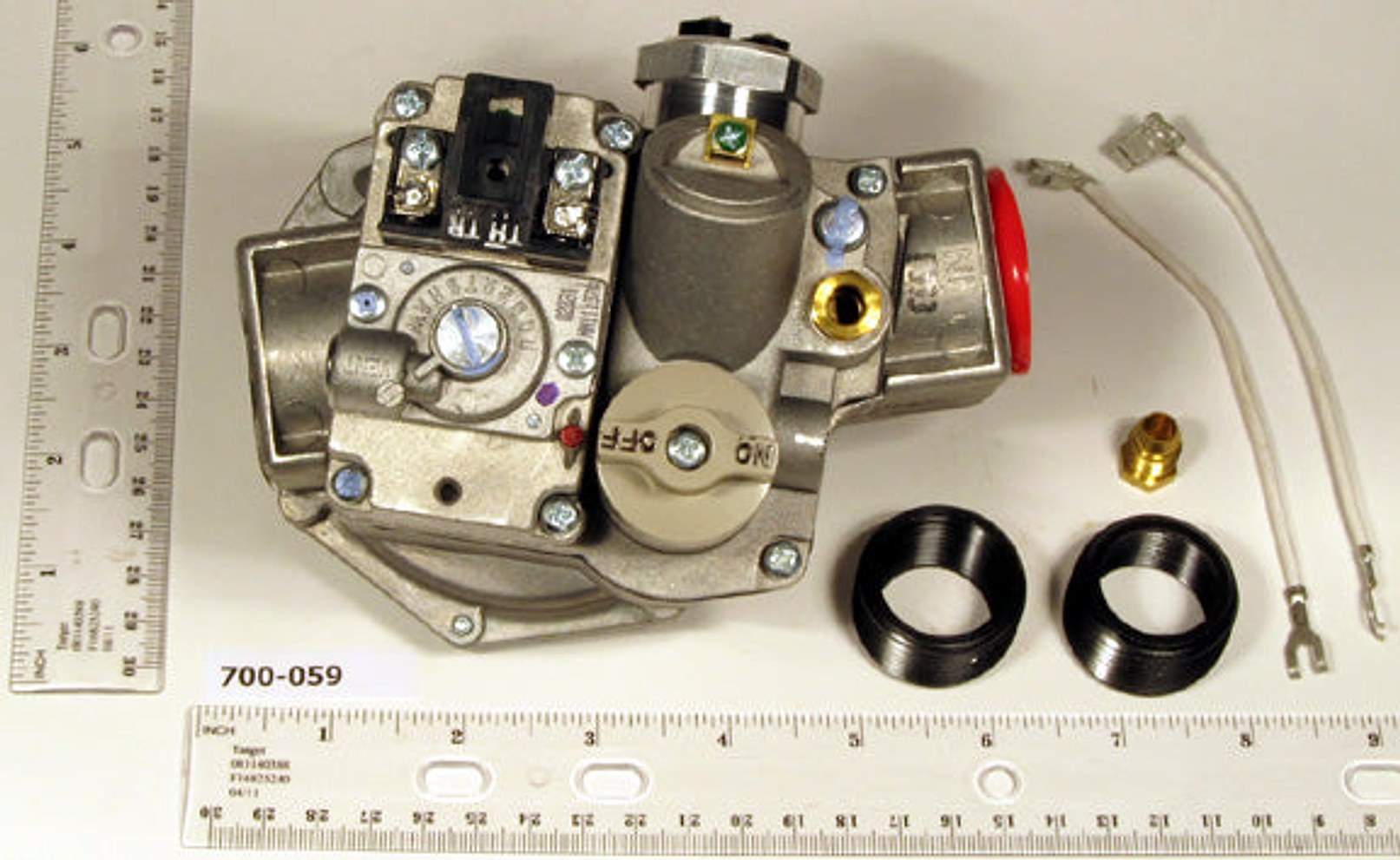

Robertshaw 700-059 Gas Valve

The Robertshaw 700-059 Gas Valve is a reliable hot surface and direct spark gas valve designed for intermittent pilot systems. It delivers precise ignition control for residential and commercial heating equipment, including central heating units, wall heaters, boilers, and mobile-home furnaces.

Operating at 1 inch nominal size with female threaded connections, this valve runs on 24 VAC at 60 Hz and tolerates -40 to 175°F. It handles up to 1/2 psi and supports up to 720,000 BTU/hour, making it suitable for natural gas systems that require dependable ignition and flow control. The unit includes an inlet filtered screen and is RoHS compliant, UL and CSA listed.

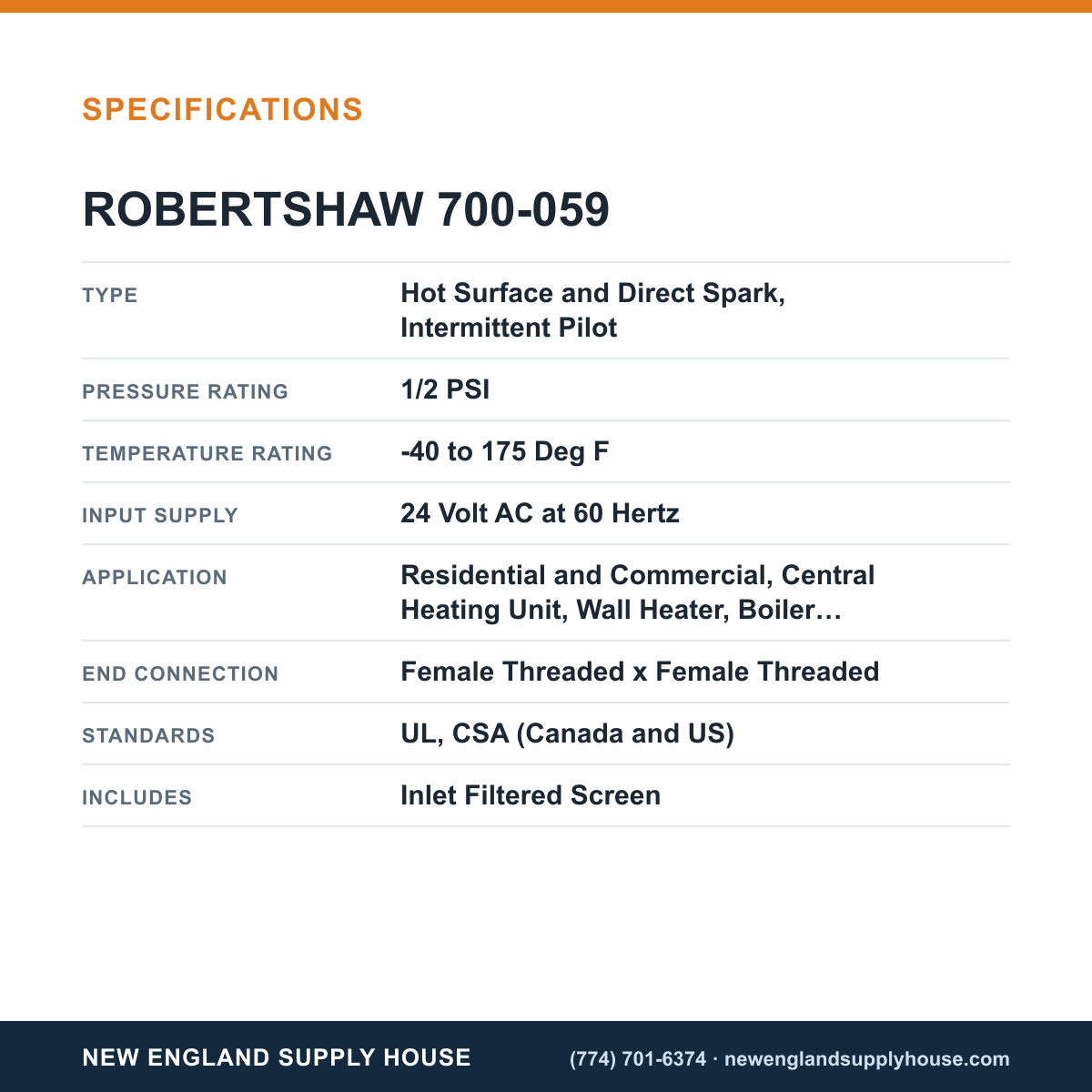

• Nominal Size: 1 Inch
• End Connection: Female Threaded x Female Threaded
• Electrical Rating: 24 VAC, 60 Hz
• Temperature Range: -40°F to 175°F
• Pressure Rating: 1/2 psi
• Ignition Type: Hot Surface, Direct Spark, Intermittent Pilot
• Capacity: 720,000 BTU/Hour
• Inclusions: Inlet Filtered Screen
• Compliance: UL, CSA, RoHS Compliant
• Applications: Residential & Commercial Heating (Central Heating, Wall Heaters, Boilers, Mobile Homes)
• Pressure Regulating Setting: 4 Inch WC Natural Gas
