Robertshaw 700-426 Combination Gas Valve

Robertshaw 700-426 Combination Gas Valve is a reliable gas control solution for heating systems. With a nominal 3/4 inch size and female threaded connections, this valve delivers dependable performance in natural gas lines.

It operates on 24V AC at 0.2 A or 12V DC at 0.18 A, and is rated for -40 to 175°F and up to 1/2 psi. The valve includes an inlet filtered screen and a regulator cover plate, and is designed for heating applications with UL and CSA standards and RoHS compliance.

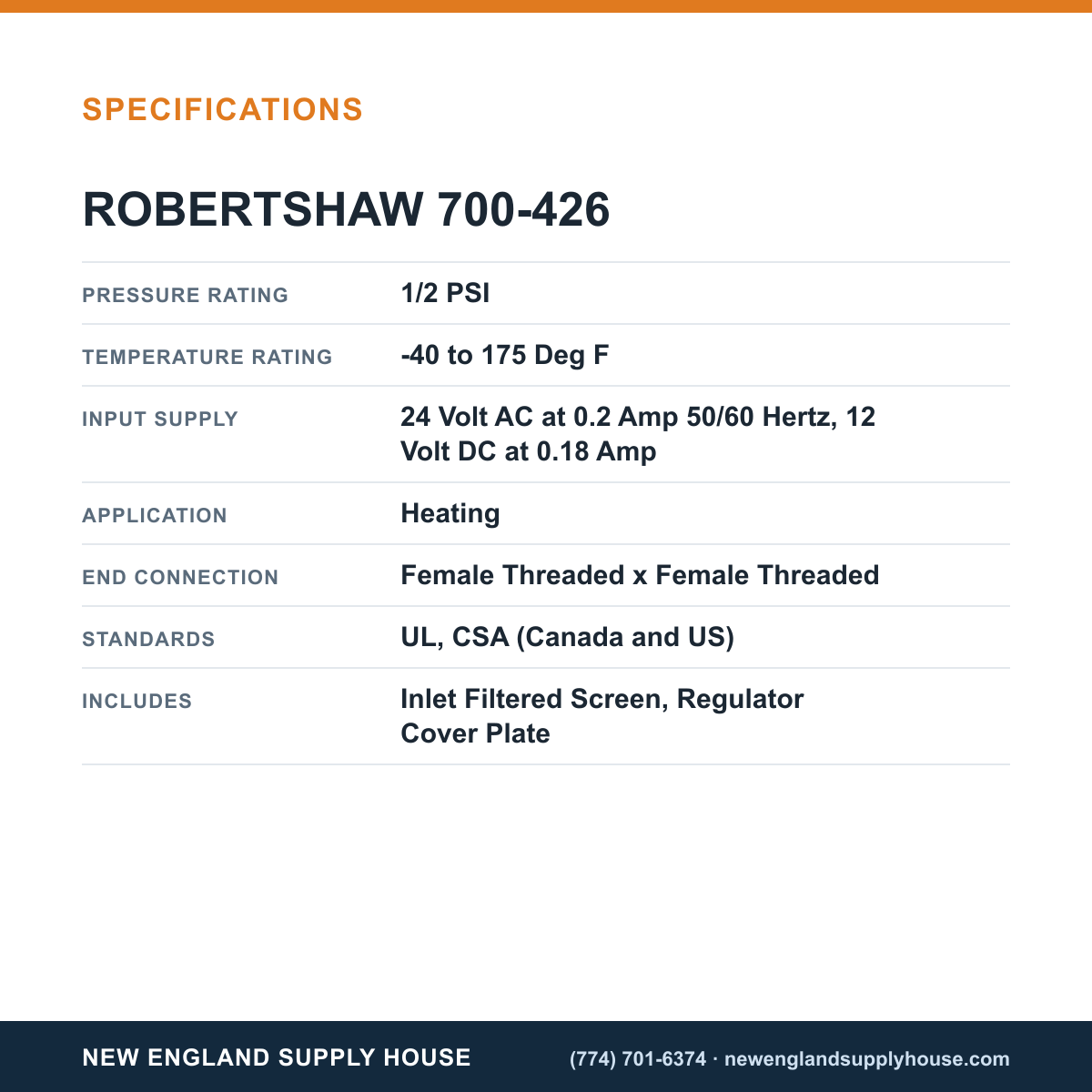

• Nominal size 3/4 inch
• End connections: female threaded x female threaded
• Input supply: 24V AC @ 0.2 A or 12V DC @ 0.18 A
• Temperature rating: -40 to 175°F
• Pressure rating: 1/2 psi
• Inlet filtered screen
• Regulator cover plate included
• Side outlet size: straight-thru
• Pilot outlet: 1/4 inch tubing
• Reducer bushing size: 2 inch threaded
• Capacity: 300,000 BTU/hour
• Regulator setting: 3.5 inch WC (Natural Gas)
• UL, CSA approved; RoHS compliant

Designed for reliable heating performance, the Robertshaw 700-426 Combination Gas Valve combines robust construction with precise gas regulation to support safety and efficiency in gas-fired equipment.
