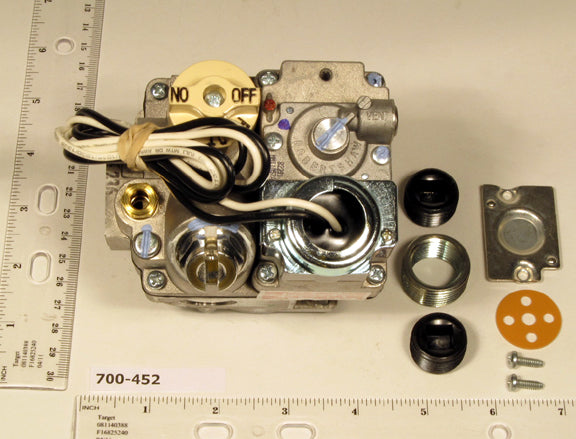

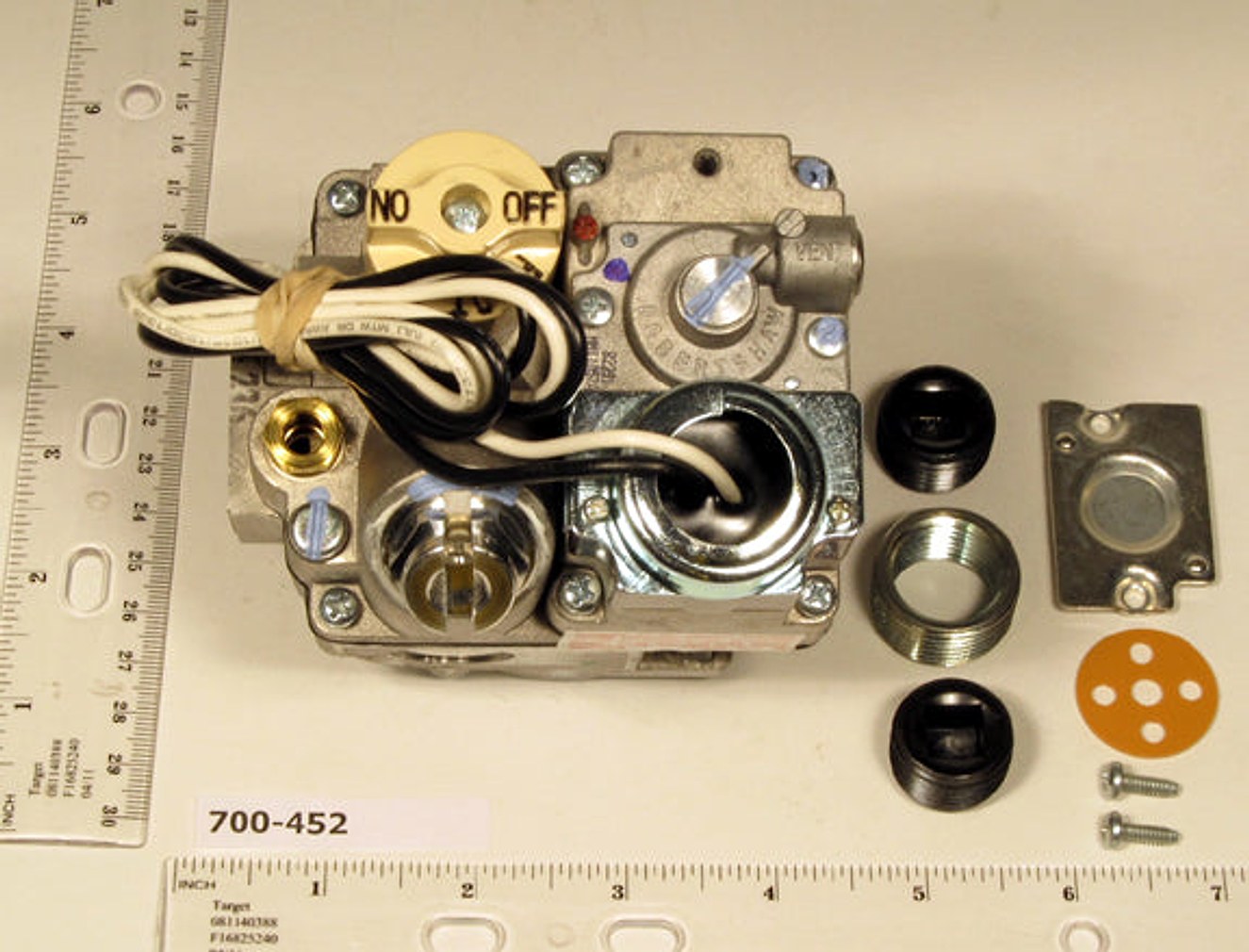

Robertshaw 700-452 Gas Valve

Robertshaw 700-452 Gas Valve delivers reliable line-voltage control for heating systems. Engineered with a slotted safety magnet and dual female threaded end connections, this valve is built for long-lasting performance.

Designed for safety and efficiency, it operates on 120 V AC at 50/60 Hz (0.034 A) or 240 V AC at 50/60 Hz (0.017 A), with a broad -40 to 175 °F temperature rating. The unit includes an inlet filtered screen and a 3-position outlet for versatile installation in heating applications. UL and CSA certified and RoHS compliant, it supports natural gas with a 3.5 in WC regulator setting.

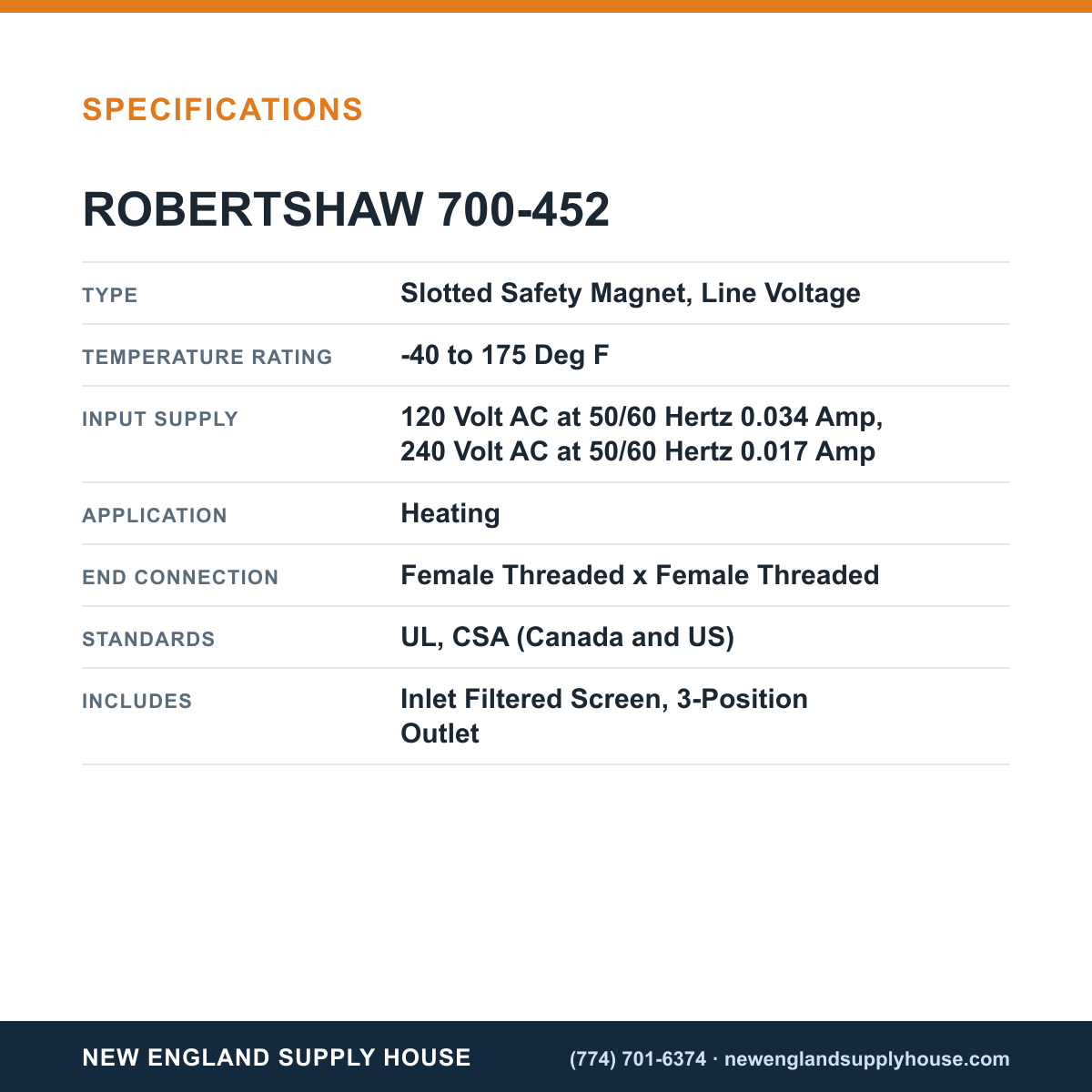

• Type / Voltage: Slotted safety magnet; line voltage gas valve (120 V AC / 240 V AC)
• End connections: Female threaded x Female threaded
• Inlet/outlet: Side outlet 1/2 inch; 3-position outlet
• Electrical current: 120 V AC @ 50/60 Hz (0.034 A); 240 V AC @ 50/60 Hz (0.017 A)
• Temperature range: -40 to 175 °F
• Capacity: 240,000 BTU/hour
• Inclusions: Inlet filtered screen; Pilot outlet 1/4 inch tubing; Reducer bushing 1 inch threaded; Lead length 32 inches
• Application: Heating
• Standards: UL, CSA; RoHS compliant
