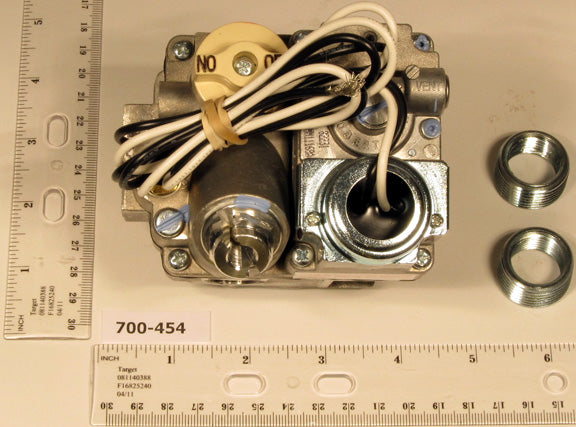

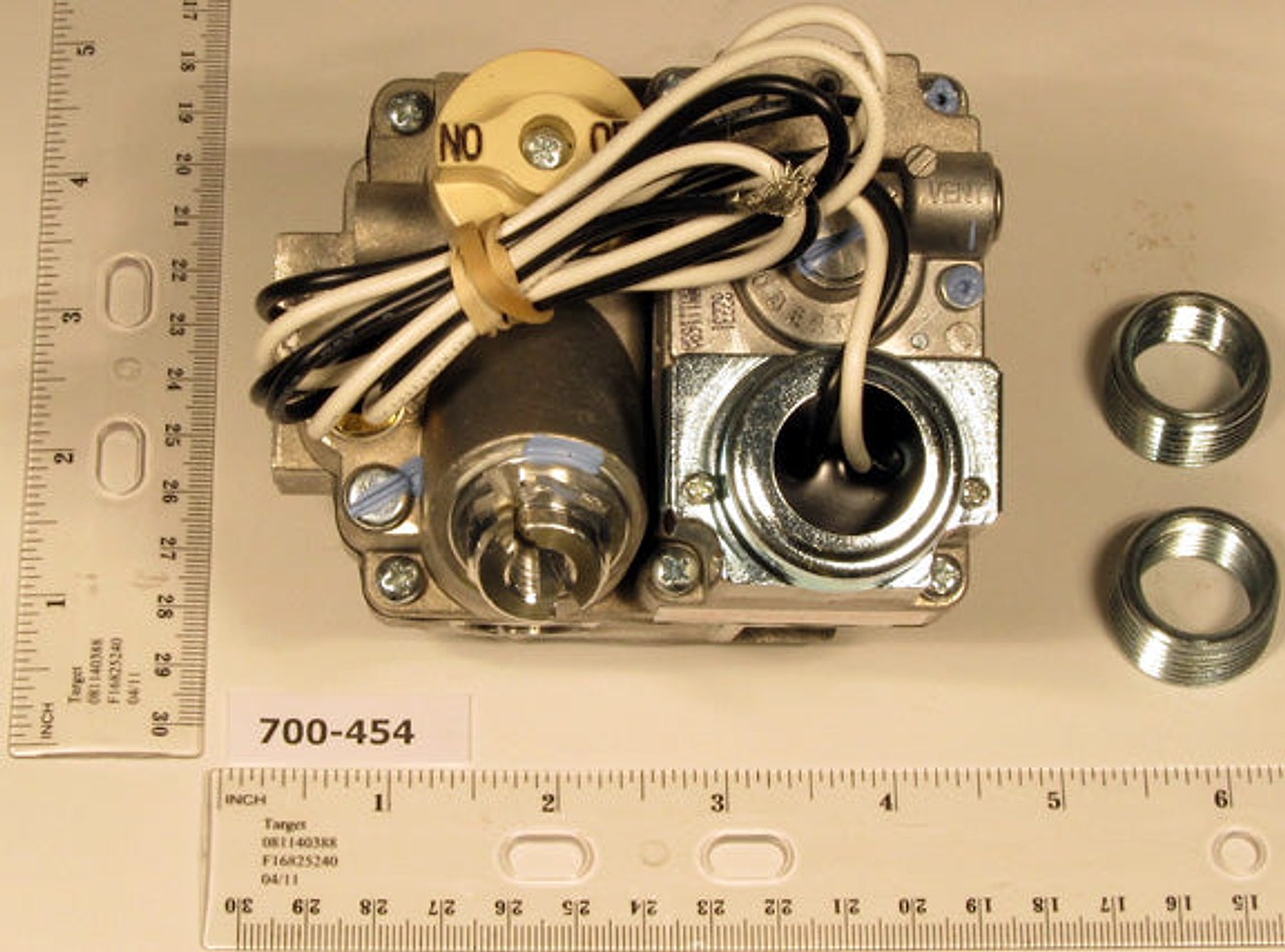

Robertshaw 700-454 Gas Valve

Robertshaw 700-454 Gas Valve is a reliable line-voltage gas control designed for heating applications. This 3/4 inch nominal valve features a slotted safety magnet and a durable inlet with a filtered screen, plus a 3-position outlet for adaptable control in compact installations.

Designed for natural gas and compatible with UL and CSA standards, the valve operates from 120V AC (50/60 Hz) at 0.034 A or 240V AC at 0.017 A, delivering efficient performance with low power draw. It includes a 32-inch lead, a 1/4-inch pilot outlet tubing, and reducer bushings to simplify mounting. With a capacity up to 300,000 BTU/hour and a regulator setting of 3.5 inches WC, this gas valve provides safe, reliable control for heating equipment in residential or commercial settings.

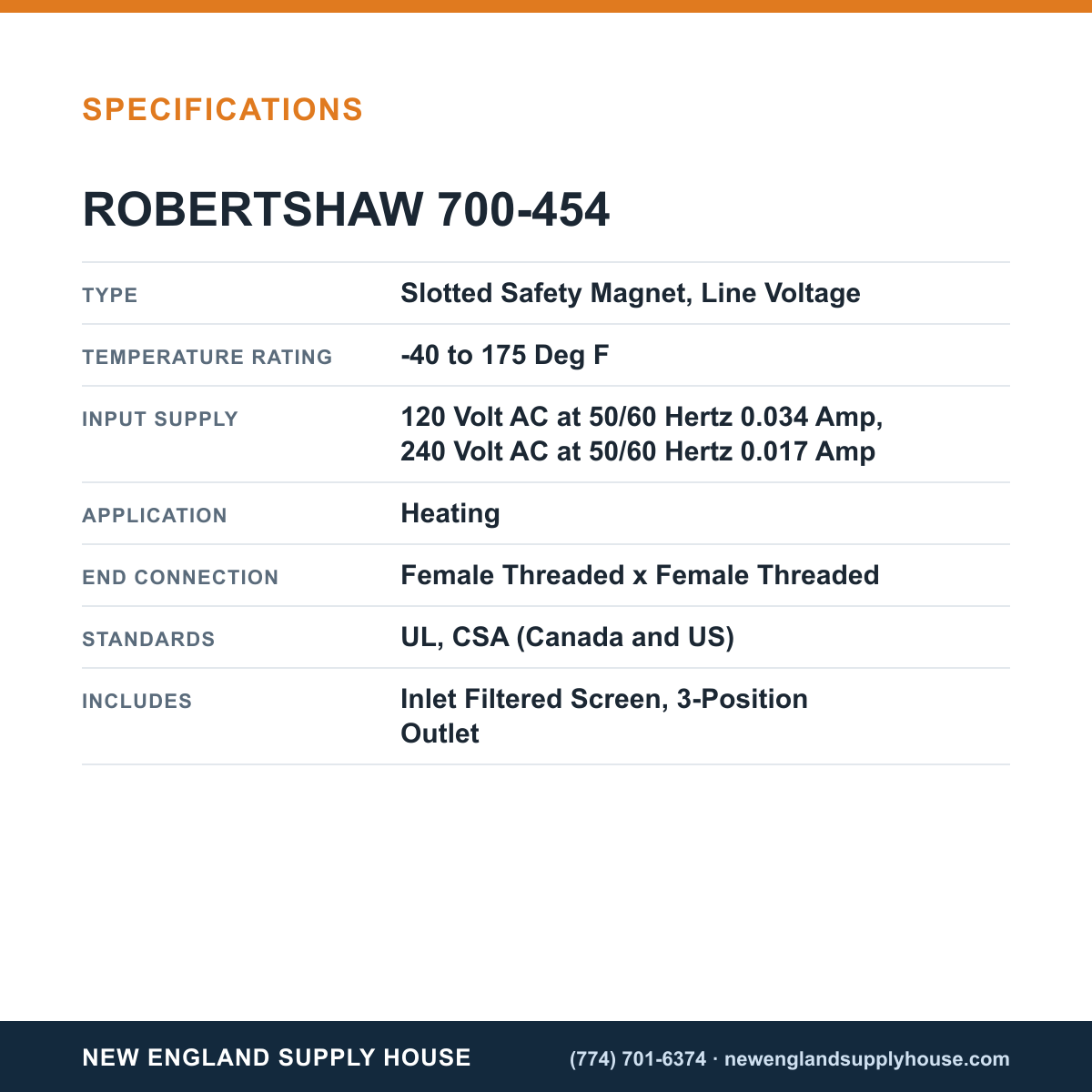

• Type: Slotted safety magnet, line voltage gas valve
• Size & connections: 3/4 inch nominal, end connection Female Threaded x Female Threaded
• Electrical: 120V AC at 50/60 Hz (0.034 A); 240V AC (0.017 A)
• Inlet/outlet: Inlet filtered screen; 3-position outlet; side straight-thru
• Pilot: 1/4 inch tubing
• Standards & compliance: UL, CSA; RoHS compliant
• Additional hardware: Two reducer bushings 3/4" x 1/2" threaded; 32" lead length
• Performance: Up to 300,000 BTU/hour; 3.5 in WC regulator setting
