Robertshaw 700-456 Gas Valve

Robertshaw 700-456 Gas Valve delivers precise control for natural gas systems. This line-voltage valve is built for safe operation in appliances, furnaces, and commercial equipment, featuring a 1 inch x 3/4 inch nominal size and female threaded ends for easy, reliable installation.

The valve integrates a slotted safety magnet and provides dependable shutoff in response to control signals. It supports line-voltage input with dual voltage options: 120V AC at 50/60 Hz (0.034 A) or 240V AC at 50/60 Hz (0.017 A), depending on your system.

With an inlet filtered screen, a 3-position outlet, and a straight-thru side outlet, it offers versatile gas flow configuration. The pilot outlet accepts 1/4 inch tubing, and the unit is RoHS compliant for environmentally friendly design. Rated for natural gas at 3.5 inch water column, it handles up to 600,000 BTU/hour and operates over a wide -40°F to 175°F range.

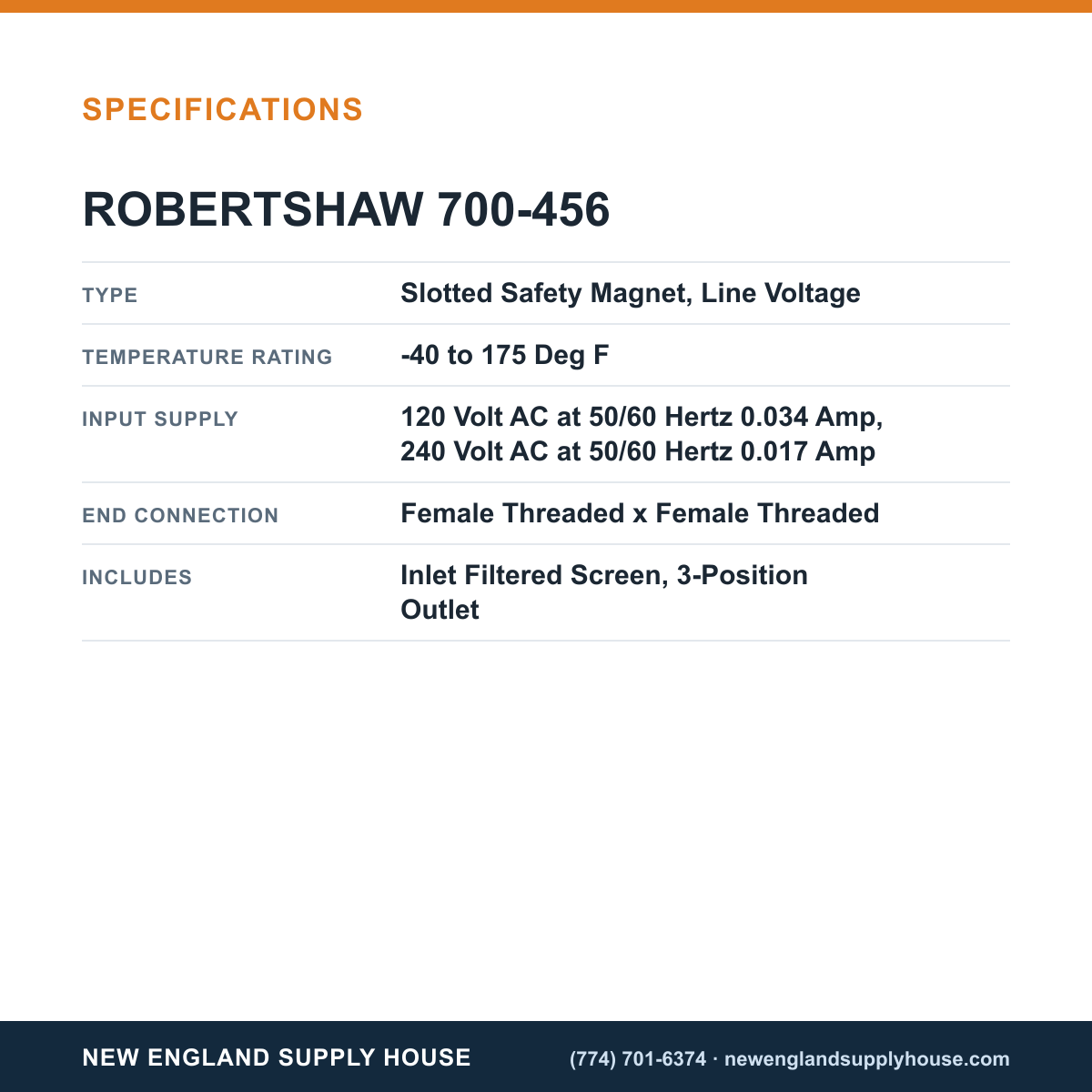

• Nominal size: 1" x 3/4" with female thread connections
• Line-voltage operation: 120V AC (0.034 A) or 240V AC (0.017 A)
• Inlet filtered screen and 3-position outlet for flexible flow control
• Side outlet straight-thru design for easy mounting
• Pilot outlet accepts 1/4" tubing
• RoHS compliant construction
• High capacity: up to 600,000 BTU/hour; temperature range -40°F to 175°F
• Natural gas compatibility: regulator setting 3.5 inch WC
