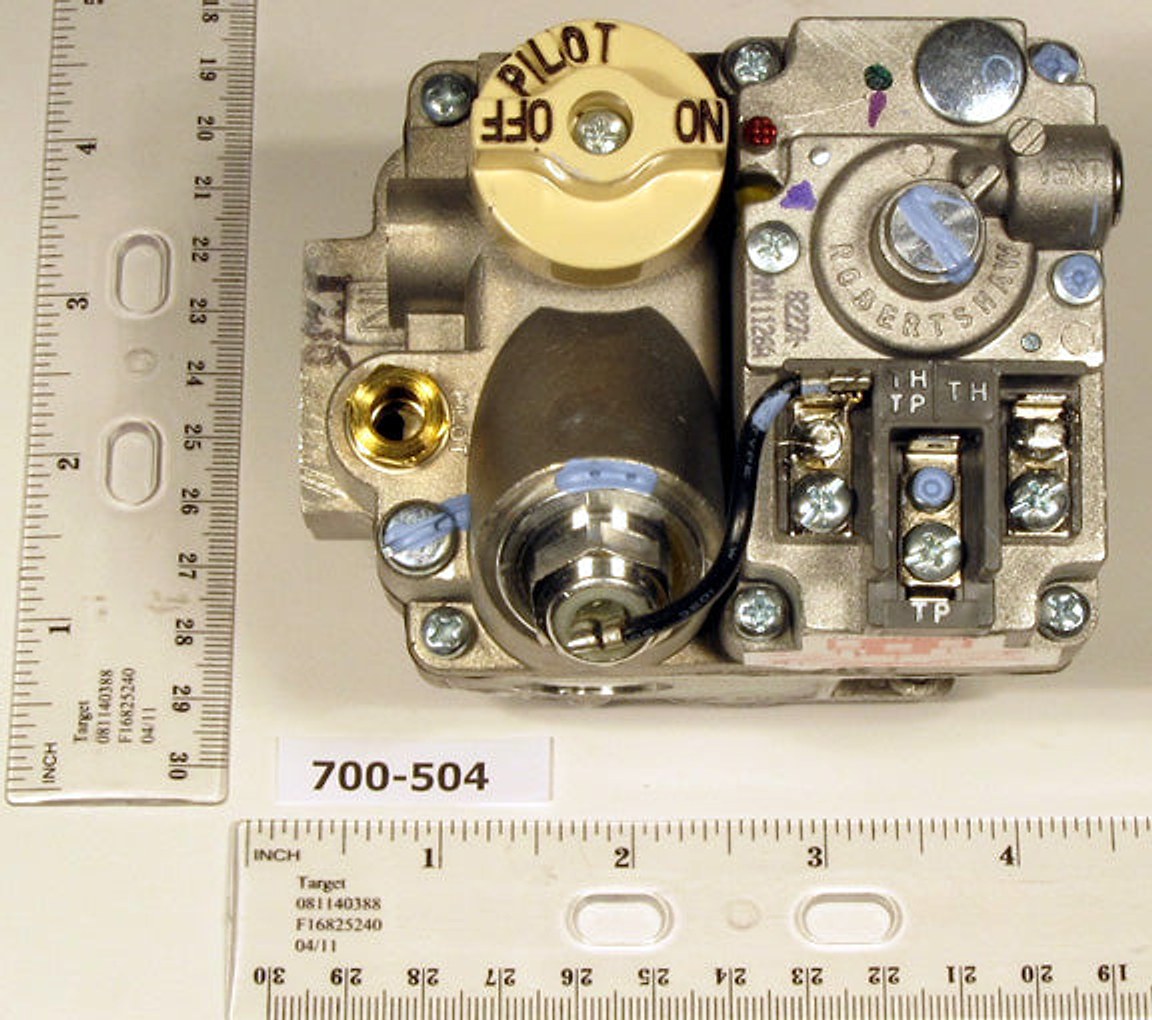

Robertshaw 700-504 Gas Valve

Robertshaw 700-504 Gas Valve delivers precise gas control for heating systems and pool heaters. This thermostat-operated valve is engineered for natural gas with a reliable actuator, enabling smooth, safe operation in furnaces and other heating equipment.

Designed for durability, it features a 1/2 inch x 3/4 inch nominal size and a female threaded x female threaded end connection, plus a 1/2 inch side outlet and a 1/4 inch pilot outlet. The inlet includes a filtered screen for debris protection, and the unit is RoHS compliant and UL/CSA listed for North American use. It handles up to 240,000 BTU/hour and operates at 250–750 millivolts, with a temperature range from -40 to 175°F and a 1/2 psi pressure rating.

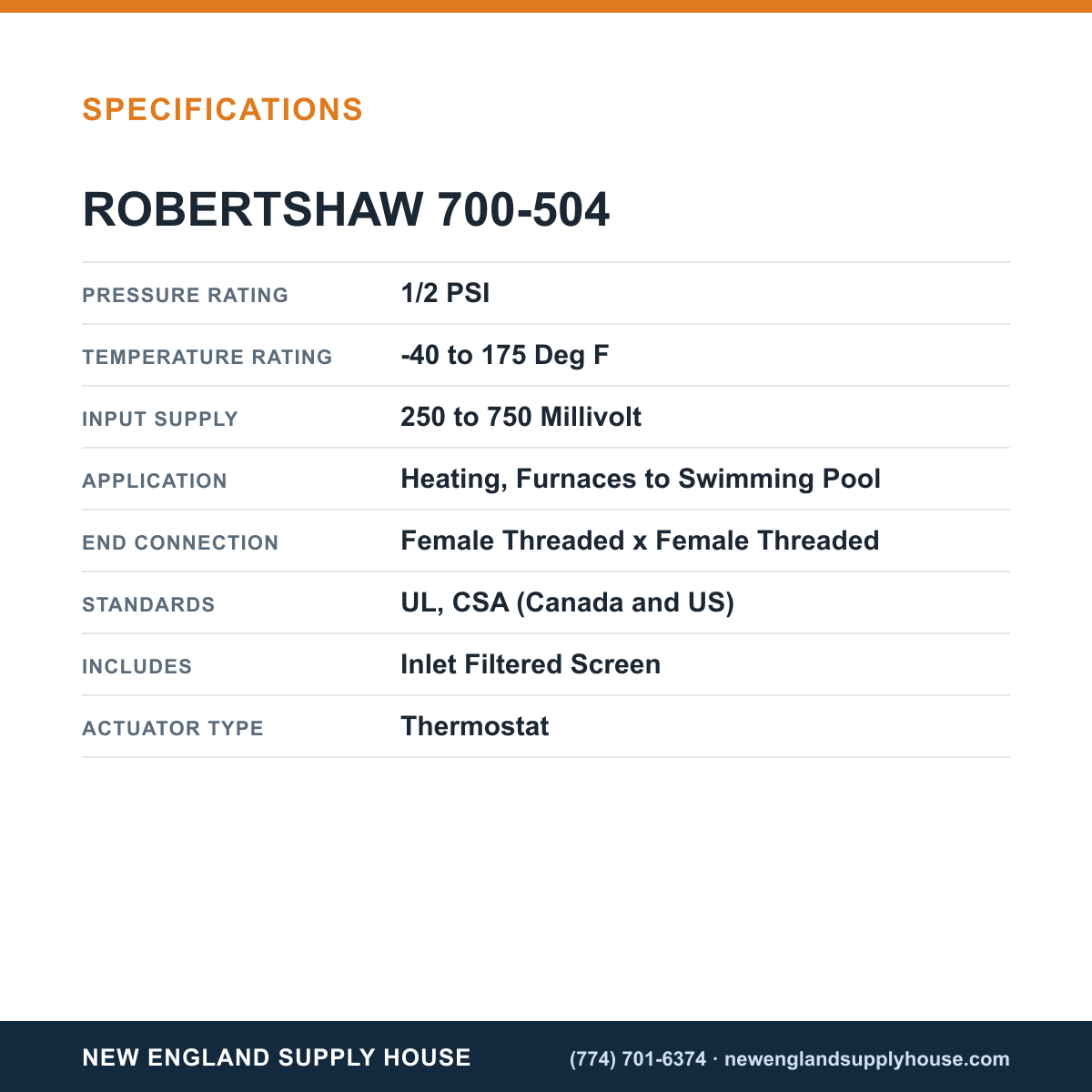

• Nominal Size: 1/2" x 3/4"
• End Connections: Female Threaded x Female Threaded
• Actuator Type: Thermostat
• Input: 250–750 mV
• Temperature Range: -40 to 175°F
• Capacity: 240,000 BTU/hour
• Inlet Screen: Filtered Screen
• Certifications: UL, CSA; RoHS Compliant
• Pilot Outlet: 1/4" tubing
• Side Outlet: 1/2"
• Reducer Bushing: 1" threaded
• Applications: Heating, Furnaces, Swimming Pool

Designed to meet demanding North American standards, this valve provides reliable, thermostat-controlled gas flow for efficient heating and pool systems.
