Robertshaw 700-506 Gas Valve

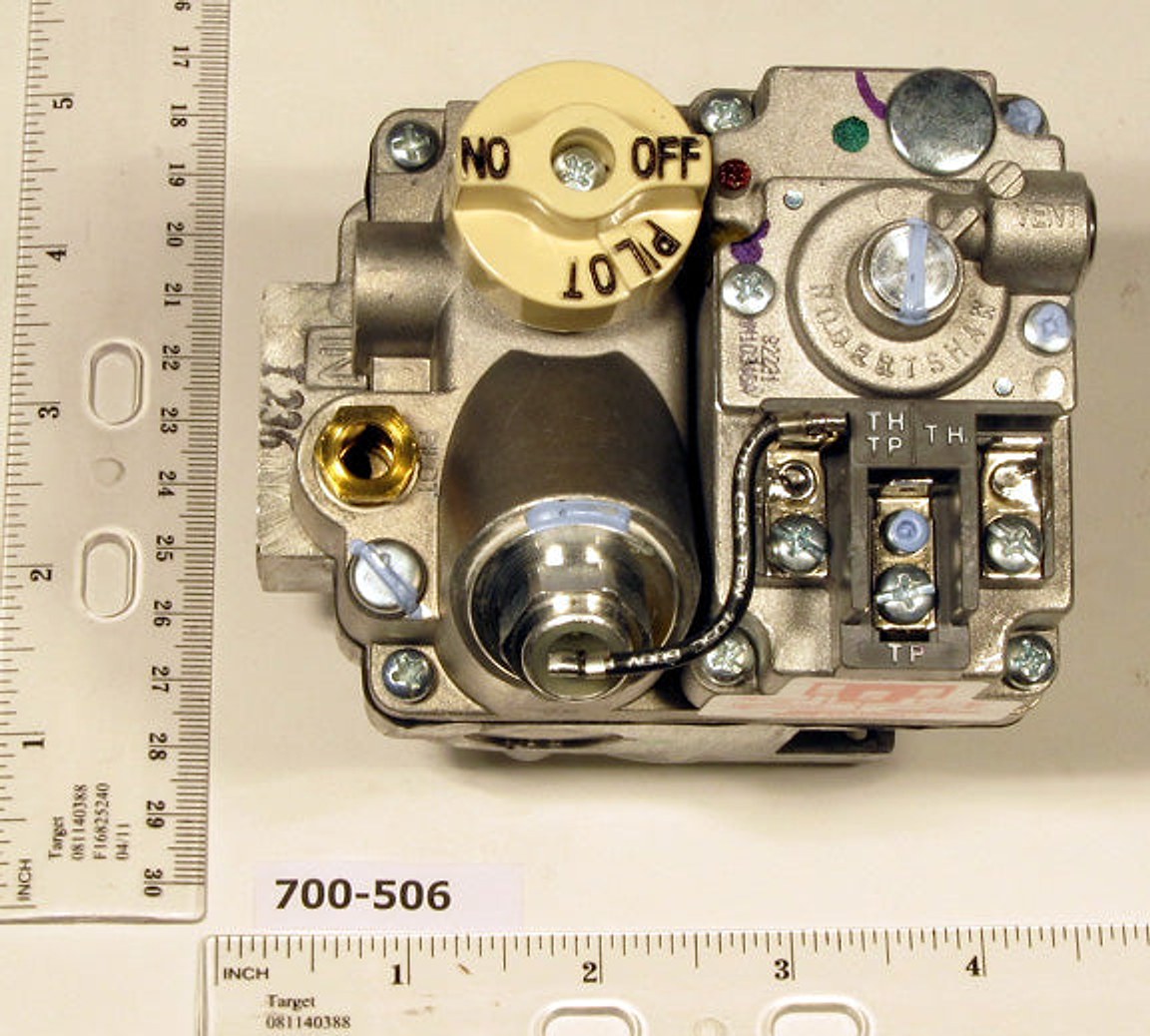

Robertshaw 700-506 gas valve is a reliable control solution for heating applications, furnaces, and pool heaters. The 700-506 features a 3/4 inch nominal size with female threaded x female threaded end connections and a thermostat actuator for precise temperature control. With an input supply rating of 250 to 750 millivolts, it works efficiently in low-voltage environments, while operating safely from -40 to 175 degrees Fahrenheit. This gas valve is rated up to 1/2 psi and includes an inlet filtered screen for clean operation. UL and CSA compliance, along with RoHS, ensure it meets modern safety and environmental standards.

For installation and performance, the valve supports a straight-thru side outlet, a 1/4 inch pilot tubing outlet, and a 2 inch threaded reducer bushing. It delivers up to 300,000 BTU per hour and a natural gas pressure regulator setting of 3.5 inches of water column, making it suitable for a wide range of furnaces and pool systems. The device uses screw/spade terminals for secure wiring and a robust, reliable design.

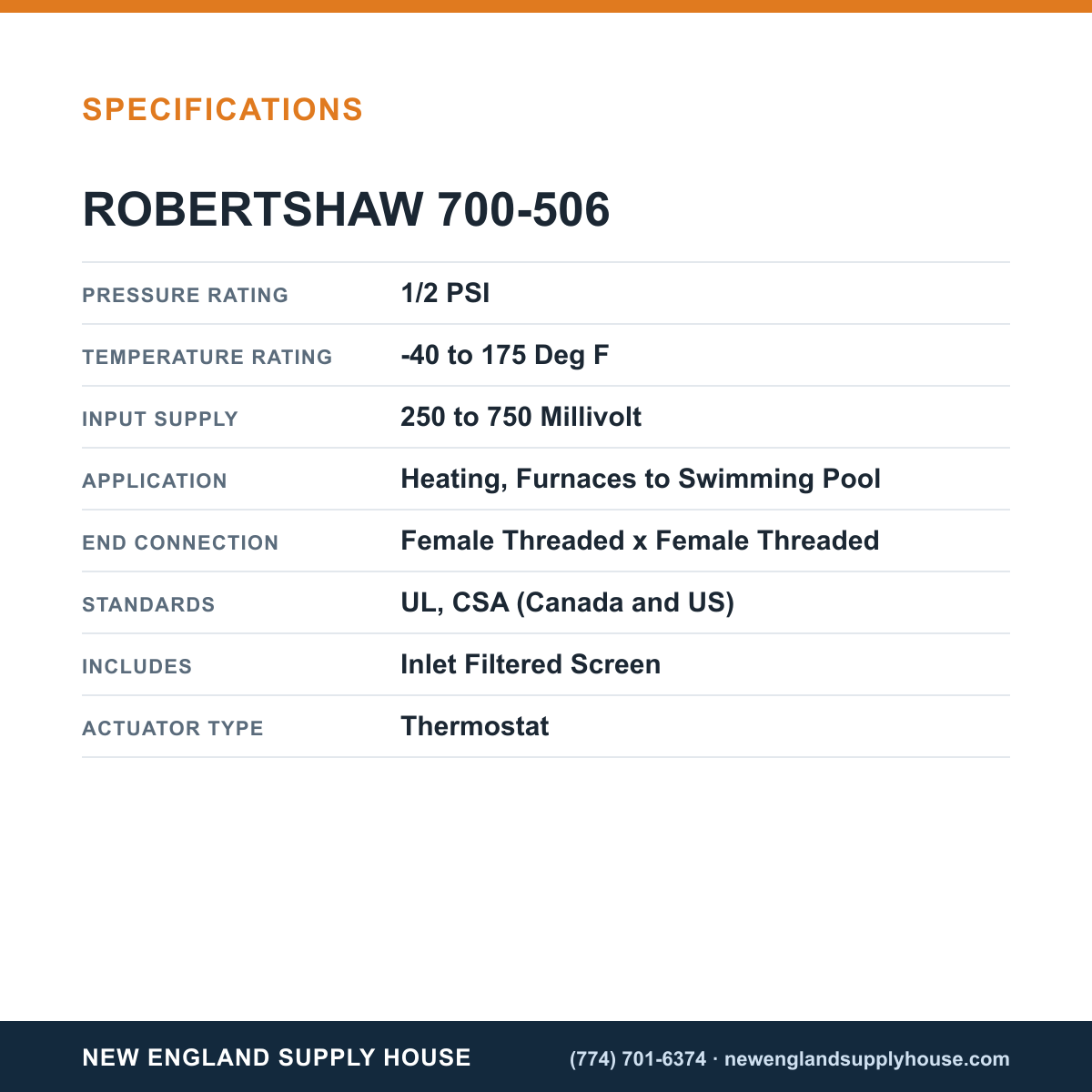

• Nominal size: 3/4 inch
• End connections: female threaded x female threaded
• Actuator type: thermostat
• Input: 250–750 mV
• Operating temp: -40 to 175 F
• Pressure rating: 1/2 psi
• Inlet filtered screen included
• UL and CSA compliant
