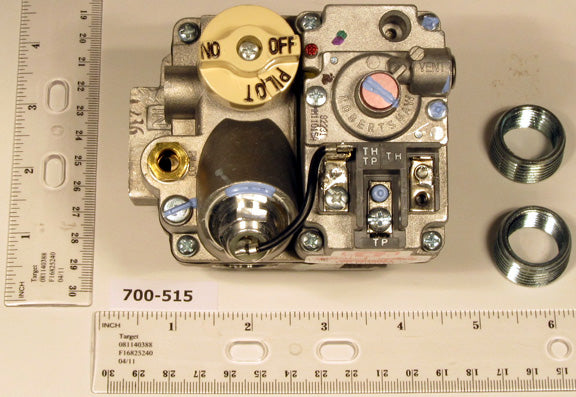

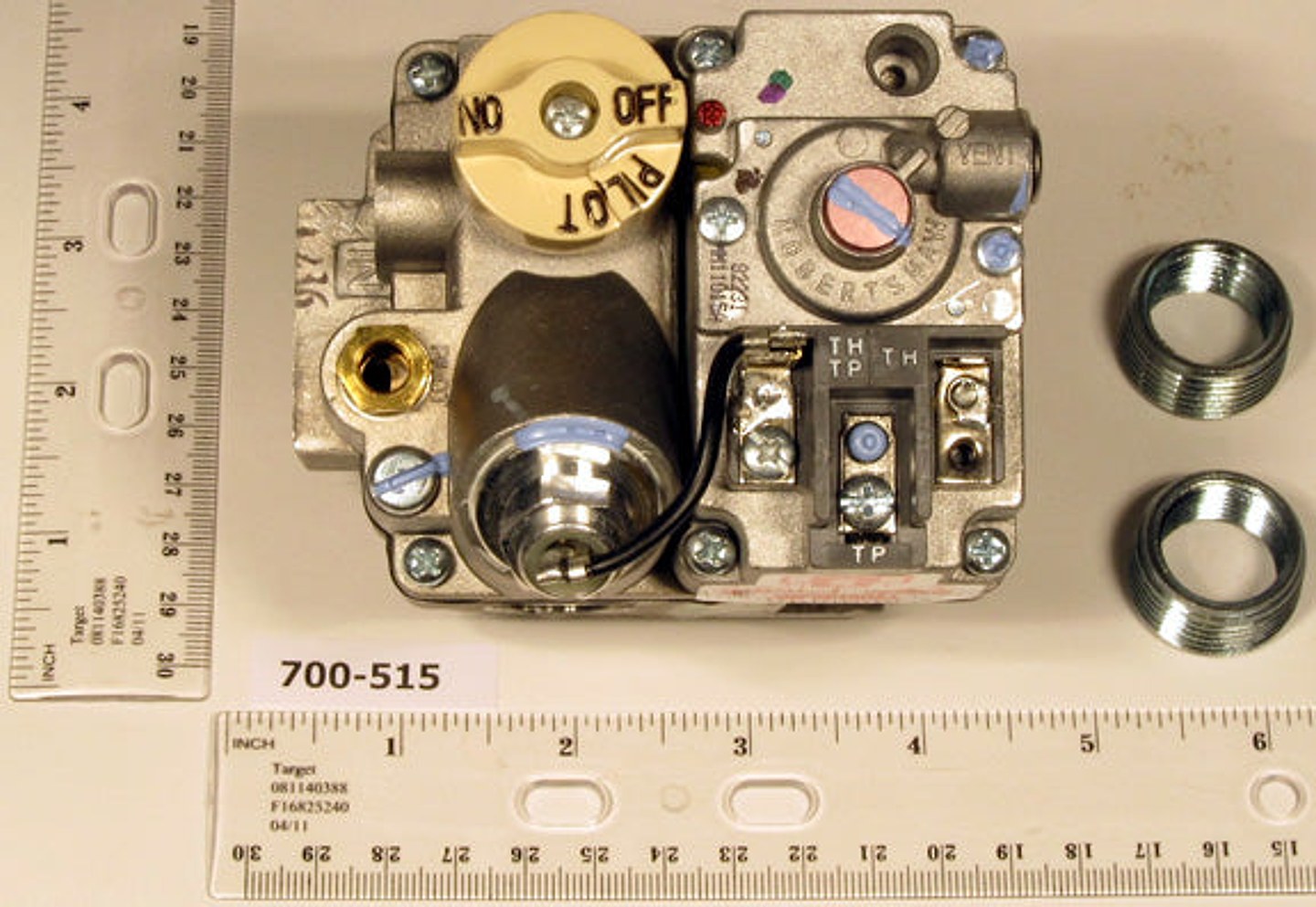

Robertshaw 700-515 Gas Valve

The Robertshaw 700-515 Gas Valve is a reliable choice for heating systems, furnaces, and pool heaters. With a 3/4-inch nominal size and female threaded end connections, installation is straightforward and secure. This valve features a thermostat actuator for precise control, and an input supply rating from 250 to 750 millivolts to accommodate different low-voltage sources. Its wide operating temperature range (-40 to 175 °F) and a 1/2 psi pressure rating ensure dependable performance across residential and commercial environments. The unit includes an inlet filtered screen for protection against debris and is RoHS compliant, UL/CSA listed for safety and compatibility.

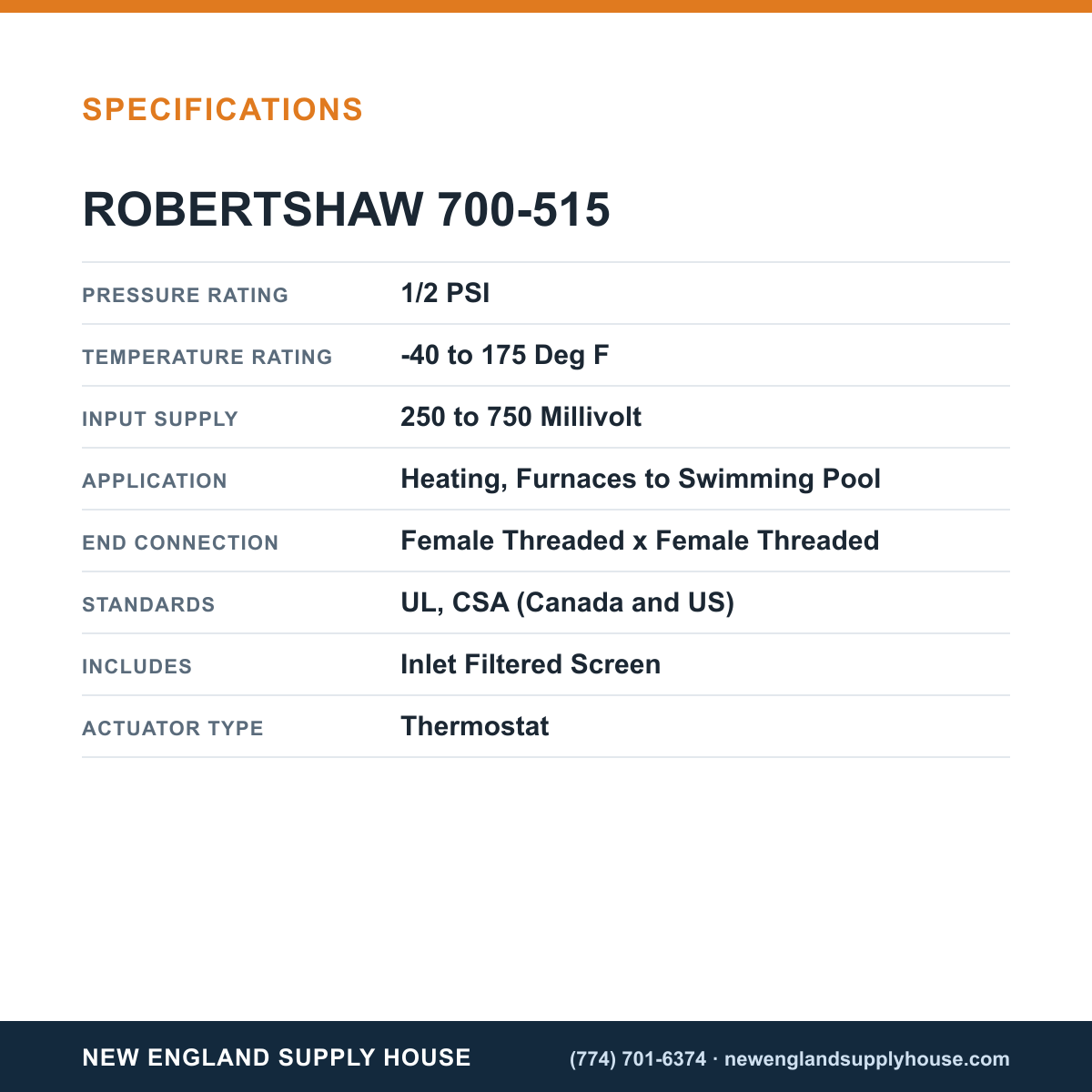

• Nominal Size: 3/4 inch
• End Connections: Female Threaded x Female Threaded
• Actuator: Thermostat
• Input Rating: 250–750 millivolts
• Temperature Range: -40 to 175 °F
• Pressure Rating: 1/2 psi
• Inlet: Filtered Screen Included
• Pilot Outlet: 1/4 inch tubing
• Side Outlet: Straight-Thru
• Reducer Bushing: 2 inch threaded
• Capacity: 485,000 BTU/Hour
• Gas Regulation: 10 Inch WC (Natural Gas)
• Terminal Type: Screw/Spade
• Applications: Heating, Furnaces to Swimming Pool
• Standards: UL, CSA; RoHS compliant
