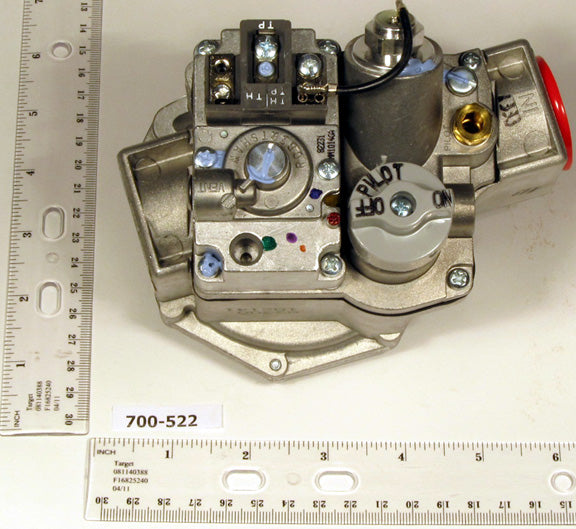

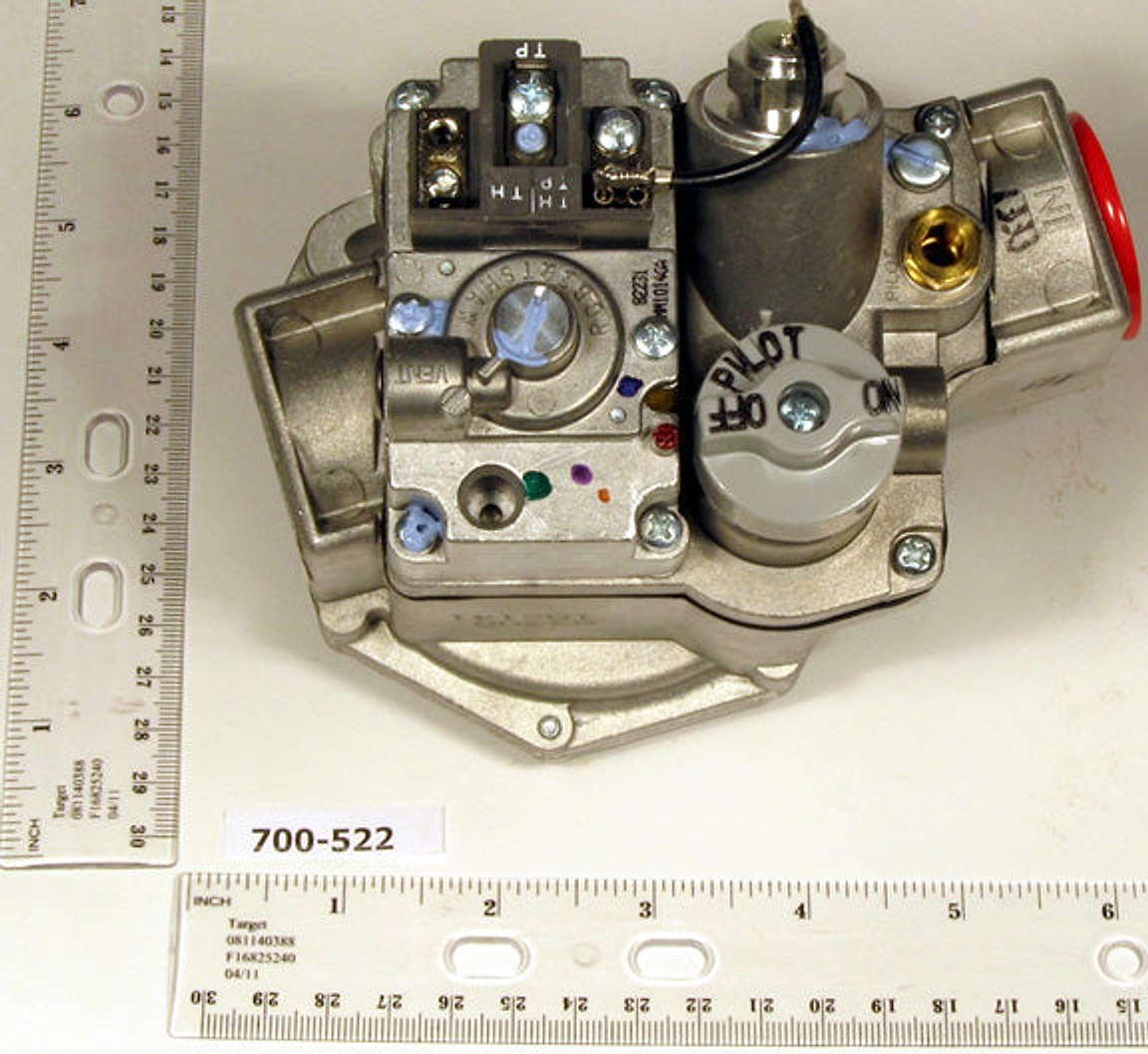

Robertshaw 700-522 Gas Valve

The Robertshaw 700-522 Gas Valve delivers precise gas control for furnaces and pool heaters. Designed with a 1 inch nominal size and female threaded end connections, this valve uses a thermostat actuator for reliable regulation across a wide operating range. With an input supply rating of 250 to 750 millivolts and a temperature tolerance from -40 to 175°F, it handles challenging conditions while maintaining safe, steady performance.

Key features of the Robertshaw 700-522 include durable construction for natural gas systems, a 1/2 PSI pressure rating, and an inlet filtered screen to protect the internal passageways. This RoHS compliant valve supports screw or spade terminals, side straight-thru outlet, and a 1/4 inch pilot tubing outlet for precise pilot control. The 2 inch threaded reducer bushing simplifies retrofit and installation in compact appliance footprints.

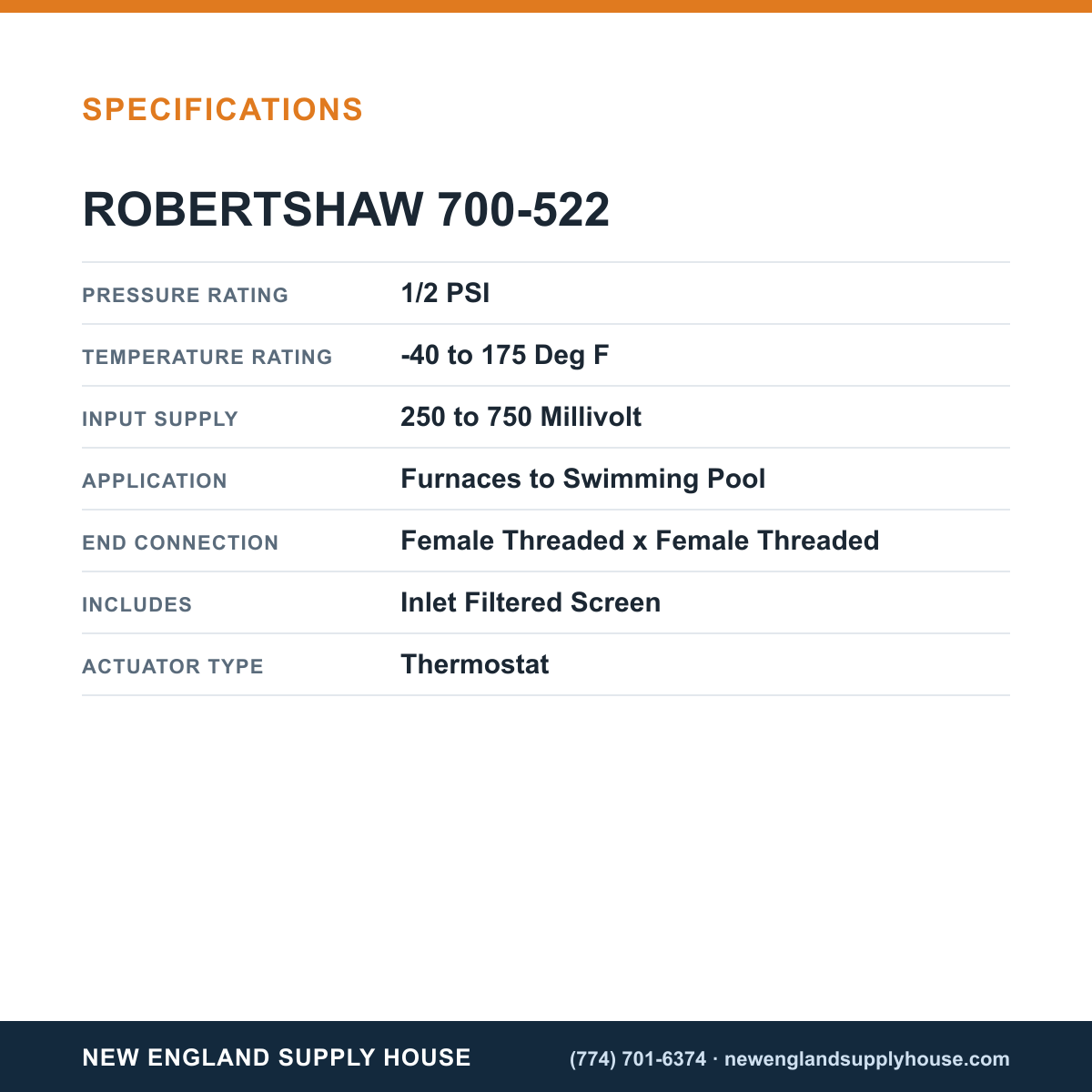

• Nominal Size: 1 Inch; End Connection: Female Threaded x Female Threaded
• Actuator Type: Thermostat; Input: 250–750 mV
• Temperature Range: -40 to 175°F; Pressure: 1/2 PSI
• Pilot Outlet: 1/4" tubing; Side Outlet: Straight-Thru
• Capacity: 720,000 BTU/hour; Regulator Setting: 3.5" WC (Natural Gas)
• Inclusions: Inlet Filtered Screen; Terminal Type: Screw/Spade; RoHS Compliant
• Applications: Furnaces to Swimming Pool
