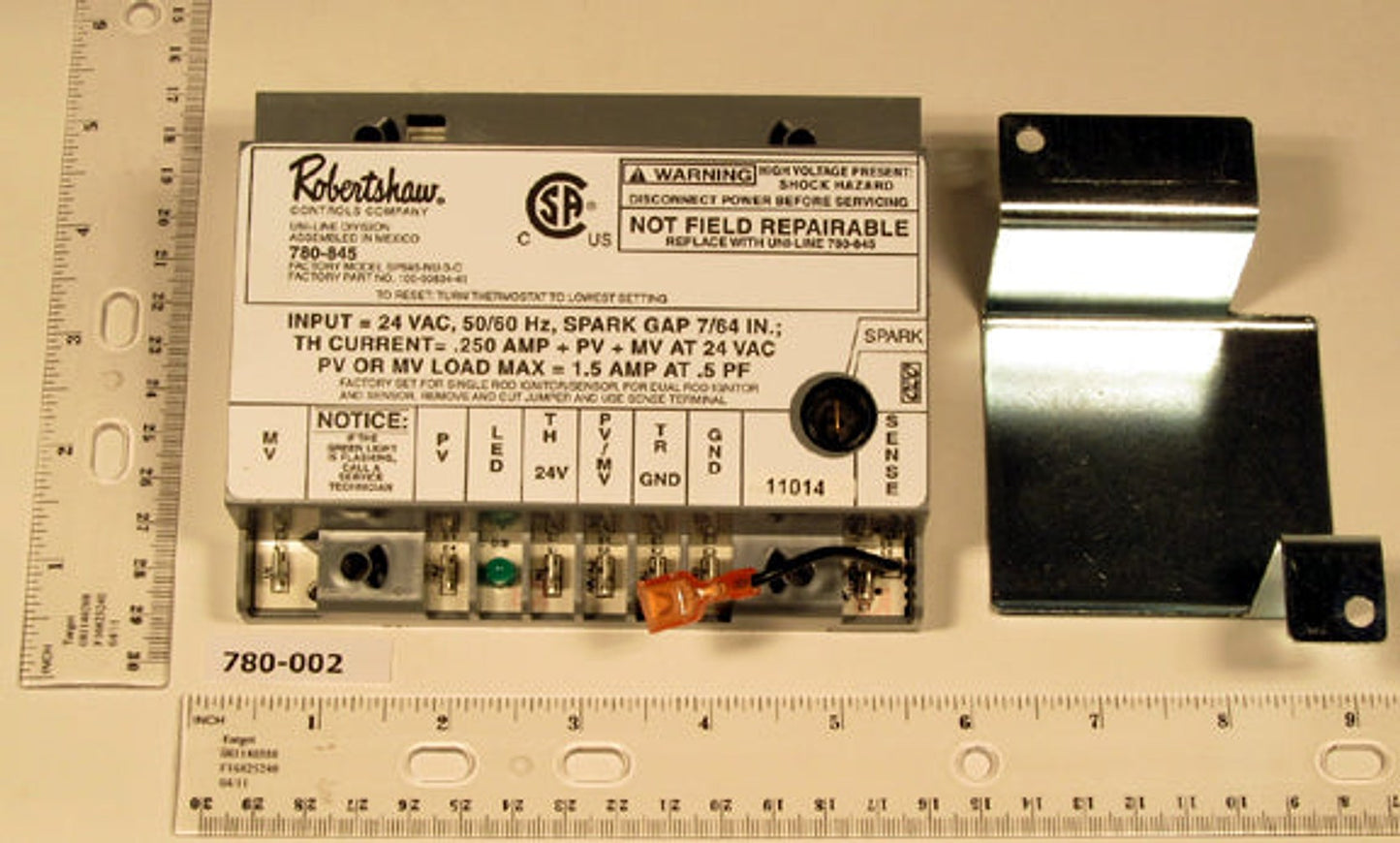

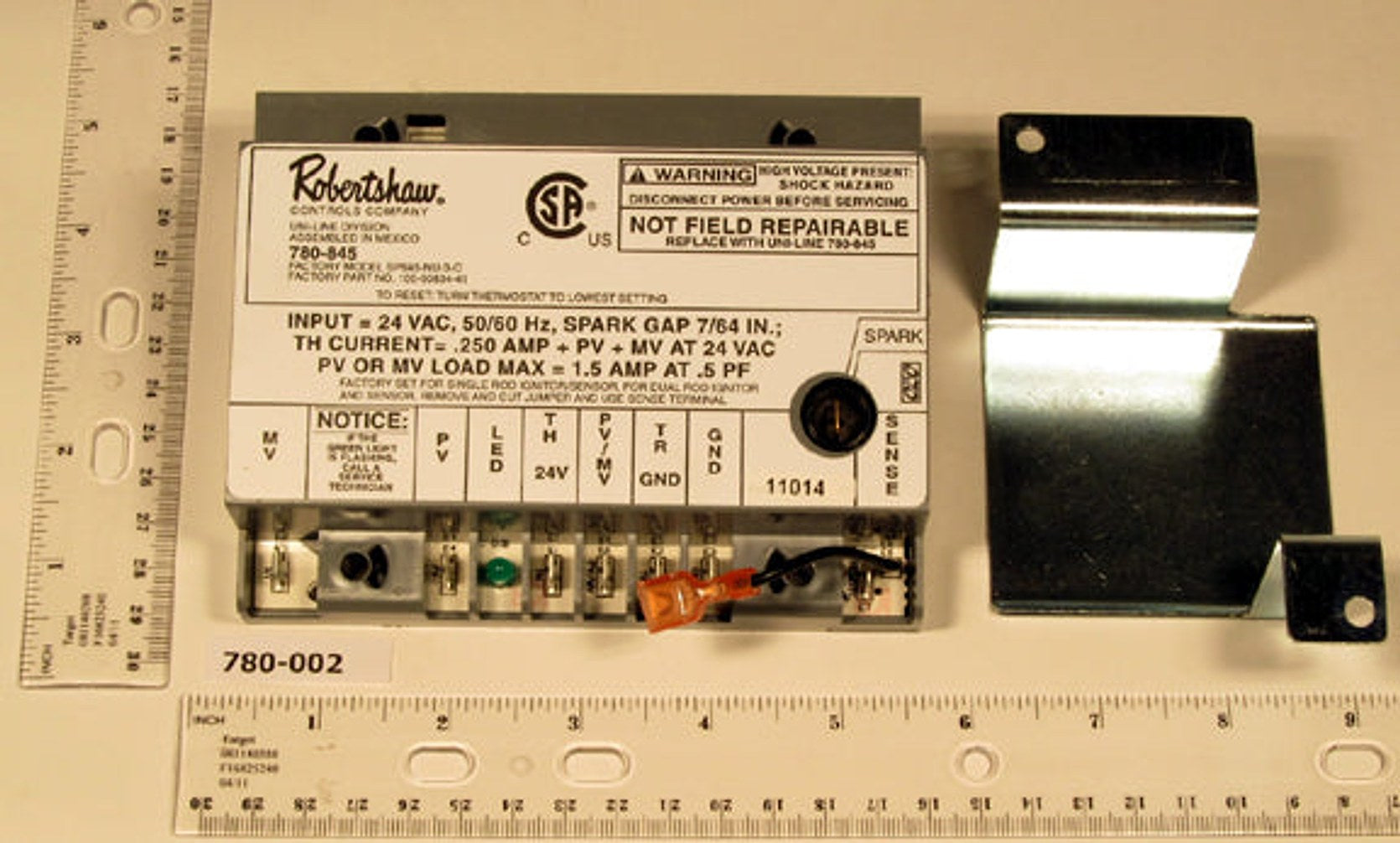

Robertshaw 780-002 Gas Ignition Control Kit

The Robertshaw 780-002 Gas Ignition Control Kit is a versatile ignition controller designed for intermittent pilot systems with spark ignition and lockout protection. This unit delivers precise flame sensing and a fast Flame Failure Response Time of 0.8 seconds, helping ensure safe and efficient operation in heating applications. Engineered for 24 Volt AC input at 50/60 Hz and suitable for Local Sense, Remote Sense, and Heating setups, it carries CSA approvals for Canada and the US. With a robust valve rating of 1 Amp at 0.5 PF and a broad temperature range of -40 to 175 Deg F, it performs reliably in challenging environments. A compact, easy-to-install package that ships with essential adapters makes it ideal for retrofit or new installations.

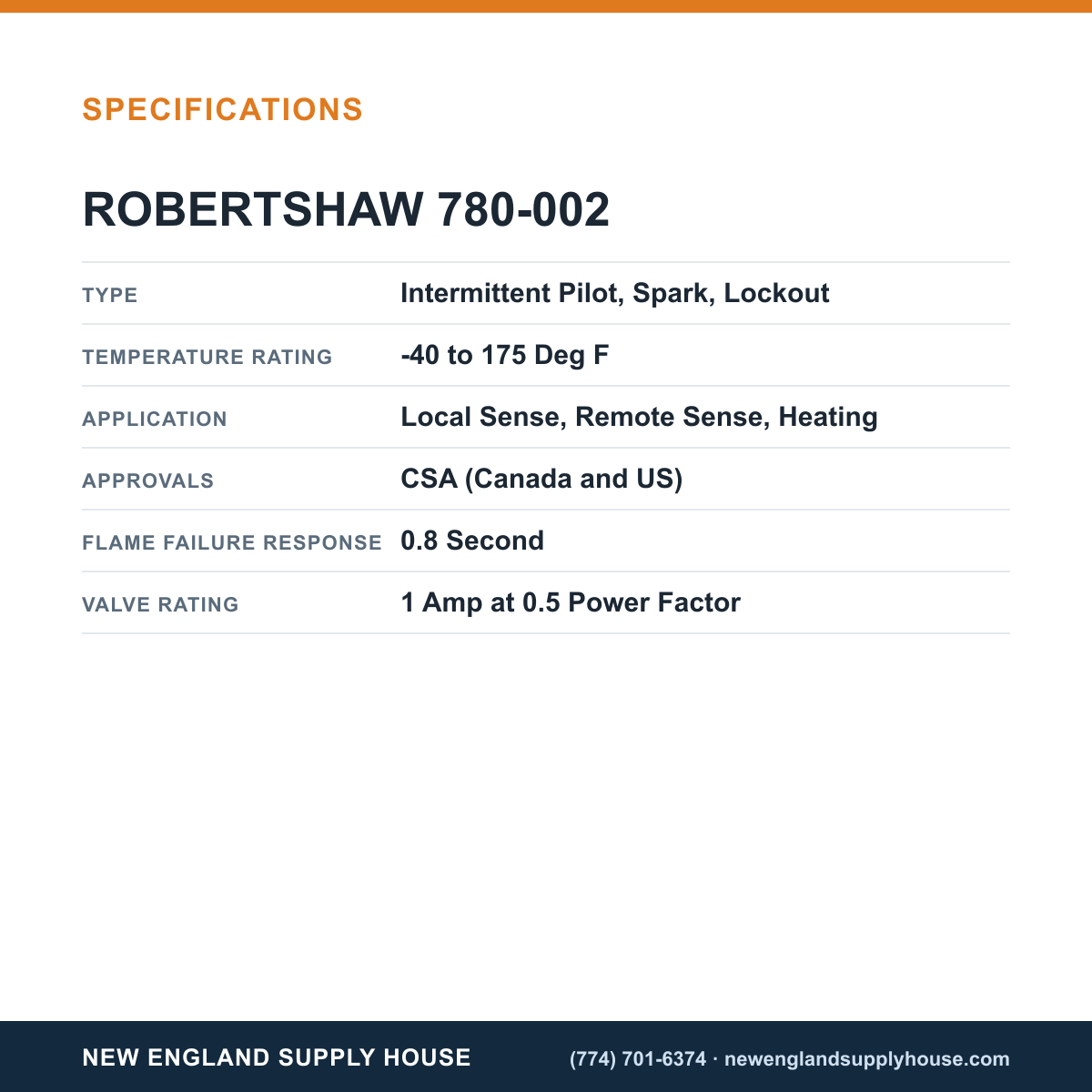

• Type: Intermittent Pilot, Spark, Lockout
• Flame Failure Response Time: 0.8 Second
• Valve Rating: 1 Amp at 0.5 PF
• Input Voltage: 24 Volt AC at 50/60 Hz
• Temperature Range: -40 to 175 Deg F
• Applications: Local Sense, Remote Sense, Heating
• Flame Sense Current: 0.7 Milliamp DC at 25 Deg C
• Thermostat Anticipator Setting: 0.7 Amp
• Combined Load: 1.5 Amp at 0.4 PF
• Includes: Vent Damper Adapter Assembly
• Approval: CSA (Canada and US)
