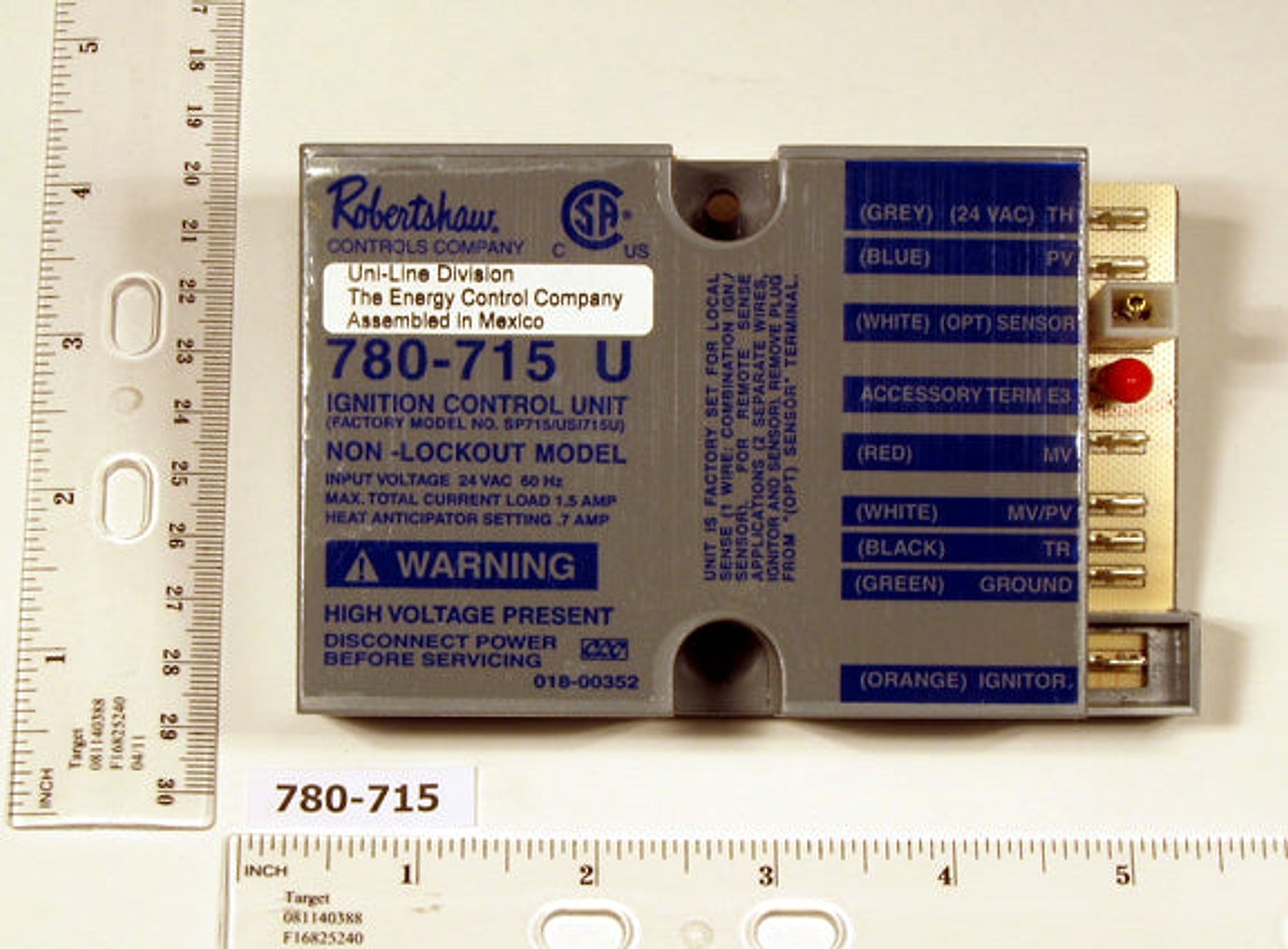

Robertshaw 780-715 Ignition Control Module

The Robertshaw 780-715 Ignition Control Module delivers reliable intermittent pilot, non-lockout ignition control for heating systems. This control handles Intermittent Pilot, Non-Lockout configurations with a 24 Volt AC supply and a 0.8-second flame failure response, promoting safer startups and efficient operation. It supports Local Sense and Remote Sense, and is rated for a 1 Amp valve at 0.5 PF, with a 24 VAC power rating suitable for most residential and light commercial furnaces. Built to withstand harsh environments from -40 to 175 Deg F, it’s CSA approved for Canada and the US, ensuring compliance in mixed market installations. The module also accommodates a Vent Damper Adapter Assembly and integrates with thermostats through a 0.7 Amp anticipator setting, making control logic straightforward and reliable.

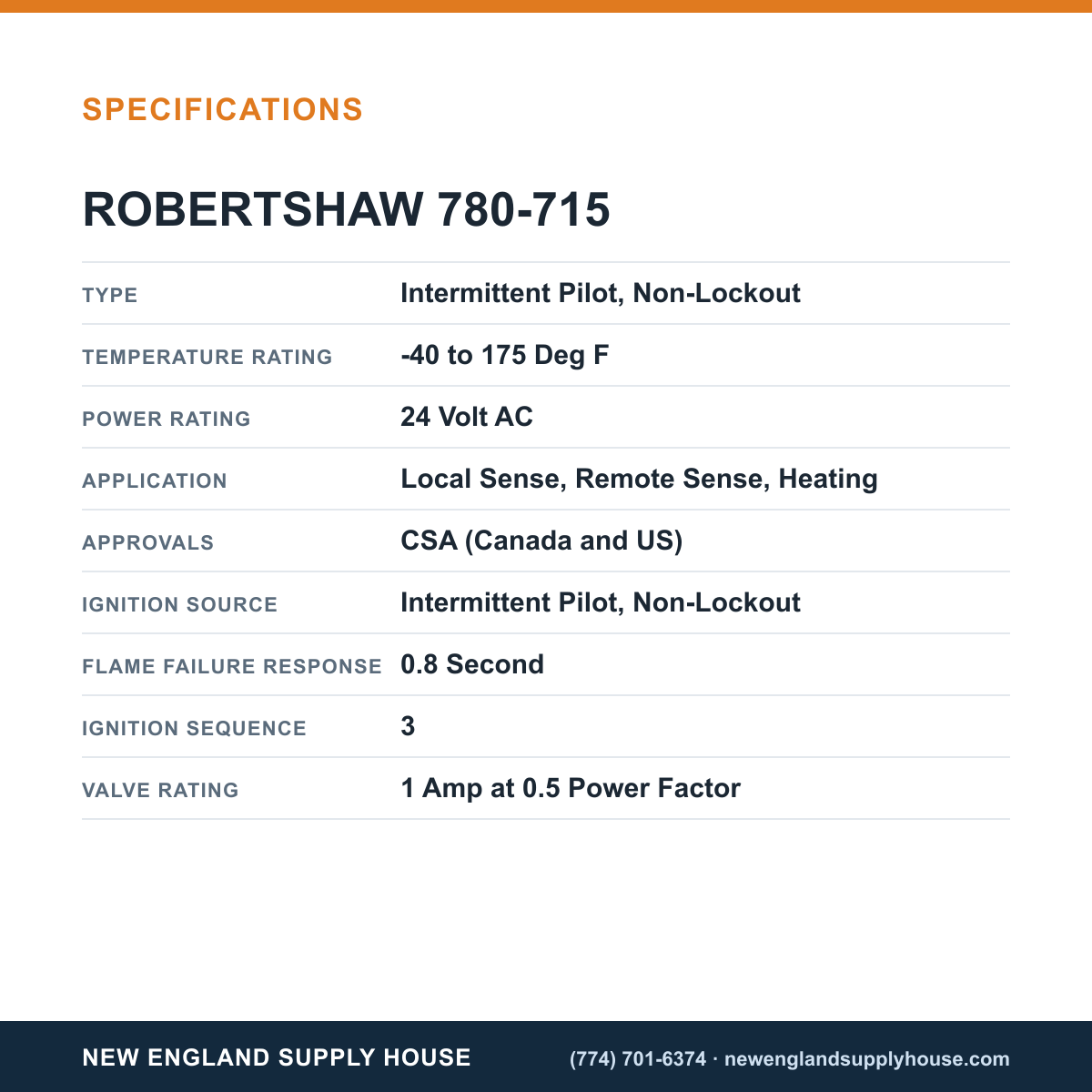

• Intermittent Pilot, Non-Lockout ignition sequence
• Flame Failure Response Time: 0.8 seconds
• Input Voltage: 24 Volt AC at 50/60 Hz
• Valve Rating: 1 Amp at 0.5 Power Factor
• Power/Thermostat: 24 Volt AC, 0.7 Amp anticipator
• Temperature Range: -40 to 175 Deg F
• CSA Approved (Canada and US)
• Includes Vent Damper Adapter Assembly
• Supports Local Sense and Remote Sense configurations
