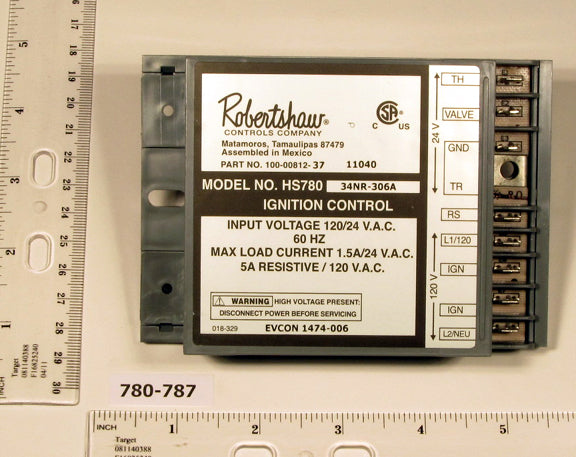

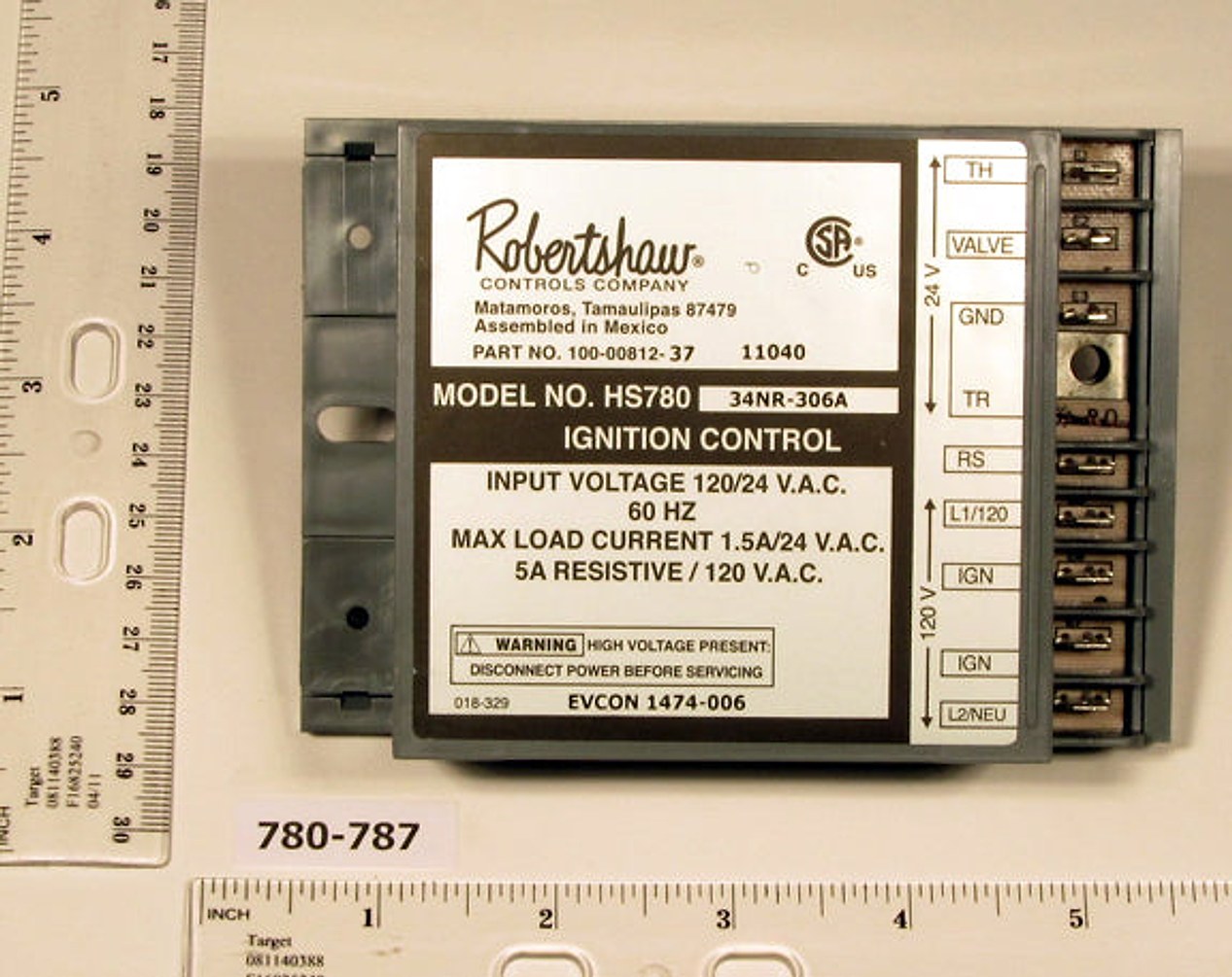

Robertshaw 780-787 Ignition Control Module

The Robertshaw 780-787 Ignition Control Module delivers reliable hot surface ignition for heating systems, featuring flame sensing and 24V AC operation. This primary control supports Ignition Sequence 3 and a 6-second ignition trial, ensuring quick and safe starts.

Designed for versatile applications, the module supports Local Sense and Remote Flame Sense configurations and a 34-second prepurge, promoting safer startups and efficient operation. It handles a 1.5 Amp valve current at 24V AC and tolerates temperatures from -40 to 176 degrees Fahrenheit.

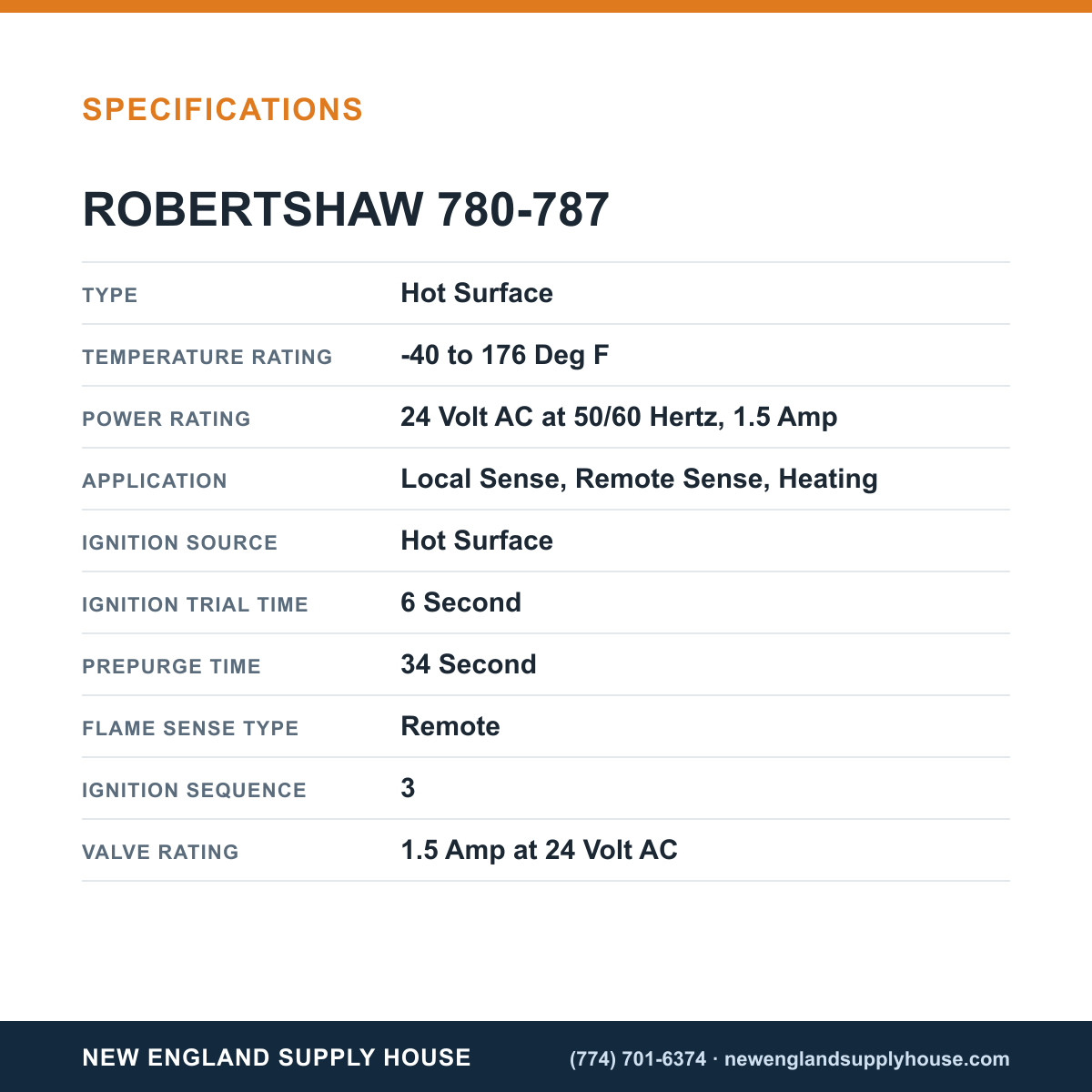

• Ignition sequence: 3 steps with a 6-second trial
• Prepurge time: 34 seconds
• Valve rating: 1.5 Amp at 24 Volt AC; max igniter current 5 Amp
• Sensing options: Local Sense and Remote Flame Sense
• Power specifications: 24 Volt AC at 50/60 Hz
• Temperature range: -40 to 176 Deg F
• Thermostat interaction: Anticipator setting 0.1 Amp
