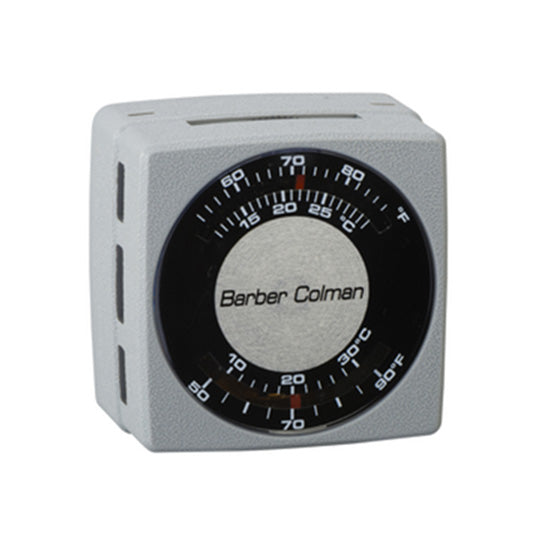

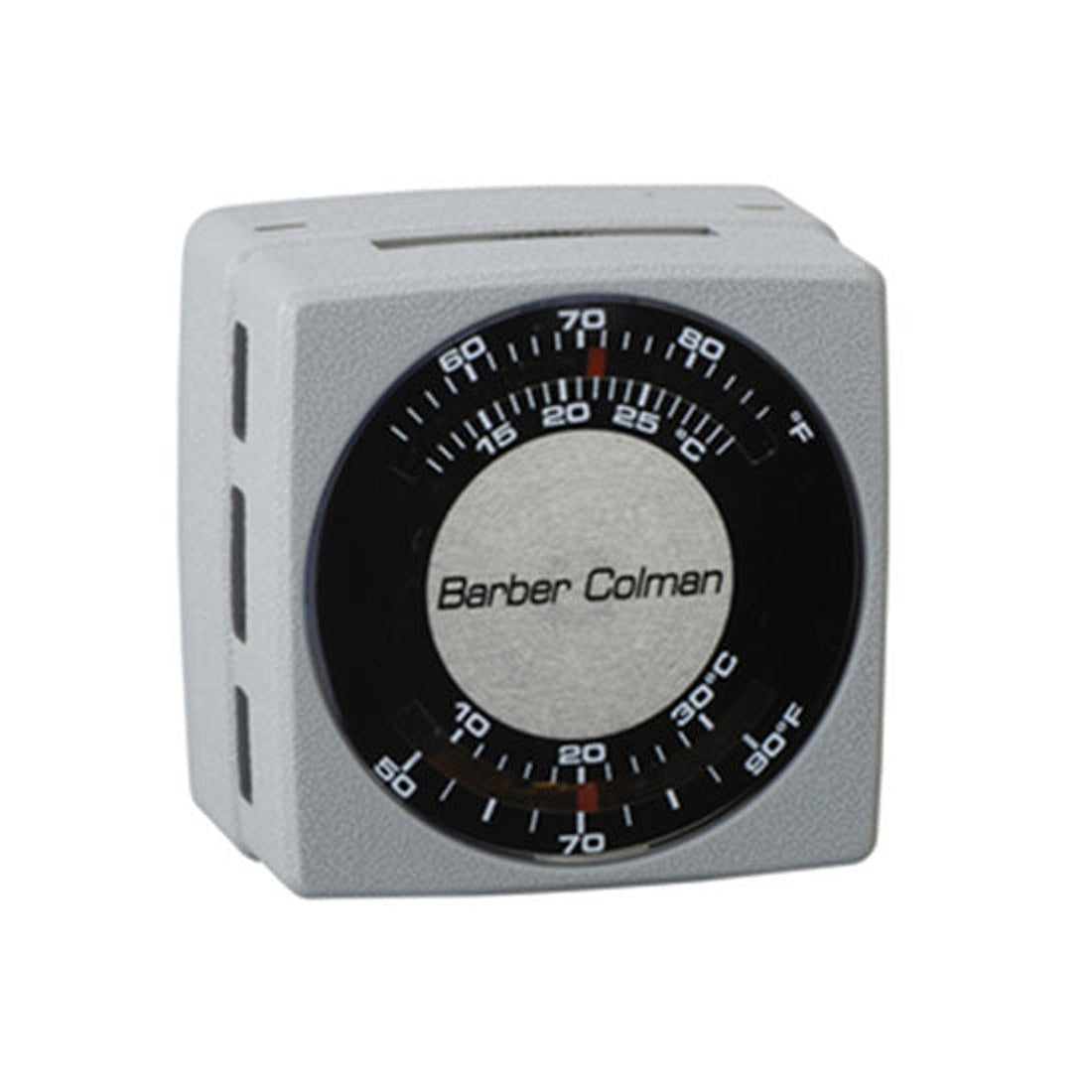

Schneider Electric 2211-013 Room Thermostat

Schneider Electric 2211-013 Room Thermostat is a compact, reliable pneumatic room thermostat designed for precise temperature regulation. This Type 1-Pipe, Pneumatic, Single Temperature, Reverse Acting, Proportional thermostat offers durable, accurate control with a gray plastic cover for a clean, low-profile installation.

Designed for upright wall mounting, this pneumatic room thermostat integrates seamlessly into standard HVAC layouts. It features low air consumption (0.017 SCFM at 20 PSIG), an internal air filter, and a fabric-reinforced neoprene diaphragm to deliver stable, proportional temperature response up to 30 PSIG. The setting range spans 55–85°F for flexible comfort control.

Key features

• Type 1-Pipe pneumatic, single-temperature, reverse-acting proportional control
• Upright wall mounting for easy access and retrofit
• Internal air filter and fabric-reinforced neoprene diaphragm for durability
• Max air pressure 30 PSIG; compatible with standard HVAC air systems
• Low air consumption 0.017 SCFM at 20 PSIG for energy-efficient operation
• Includes 1/4 inch x 3/16 inch barbed coupling, tubing kit, standard mounting kit, and gray plastic cover
