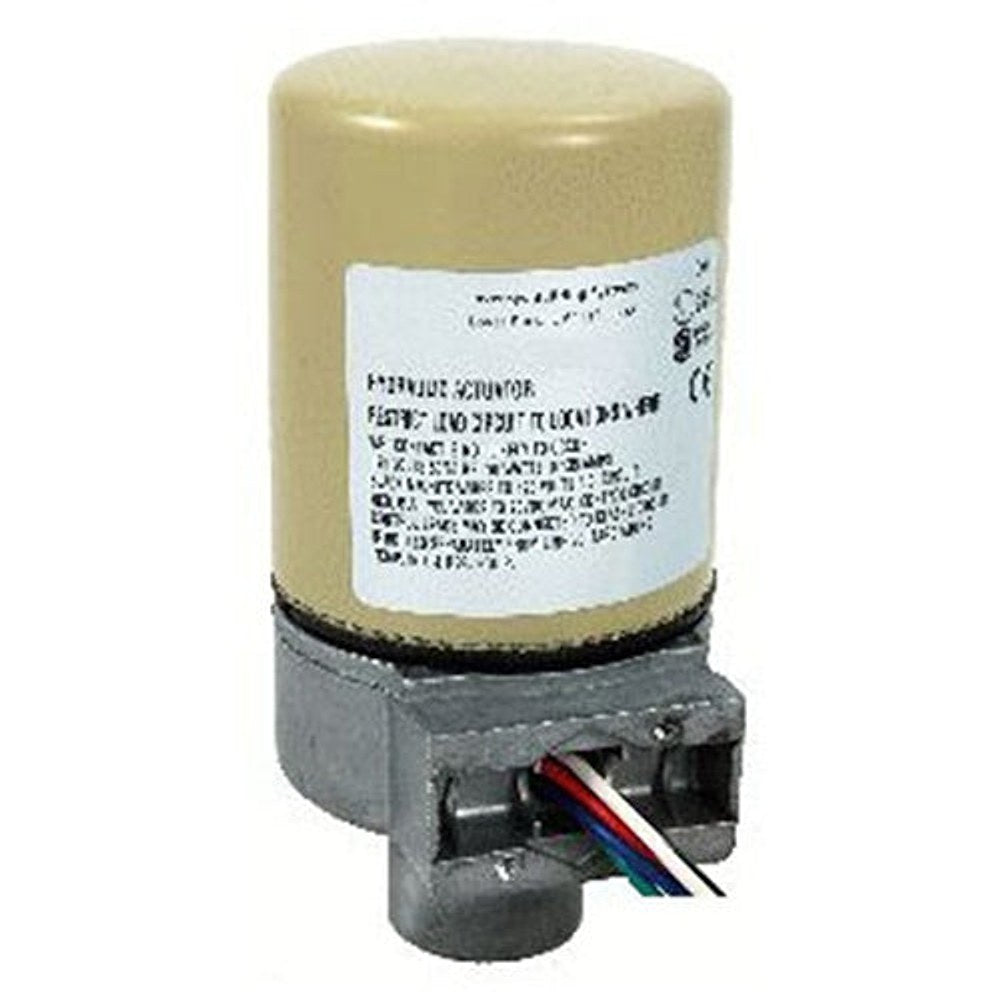

Schneider Electric MA-5210-500 Damper/Valve Actuator

The Schneider Electric MA-5210-500 Damper/Valve Actuator is an ON/OFF, SPST, 2-position actuator designed for reliable damper and globe valve control. With spring-return operation, it automatically returns to the fail-safe position when power is removed and fits a compact NEMA 1 enclosure for indoor HVAC panels.

Operating at 120 V AC (50/60 Hz), this damper actuator draws only 10 W and provides 20 inch-pounds of torque, delivering precise, responsive positioning for dampers and globe valves in commercial and industrial systems. Its sturdy construction and standard mounting make it ideal for control loops that demand durability and UL 873, CSA, and CE approvals.

Key specifications include a compact size, 3-1/4" diameter x 3-23/32" width x 6-3/4" height; supply connections via a 4 ft color-coded lead with 1/2" conduit; and operating temperatures from 0 to 140°F, ensuring reliable performance across common environments.

• Type: ON/OFF, SPST; 2-position actuator
• Operation: Spring return for failsafe positioning
• Voltage: 120 VAC; Frequency: 50/60 Hz
• Power: 10 W; Torque: 20 in-lbs
• Enclosure: NEMA 1; Application: damper and globe valve
• Lead/conduit: 4 ft color-coded lead with 1/2" conduit
• Operating temperature: 0–140°F
• Certifications: UL 873, CSA, CE
