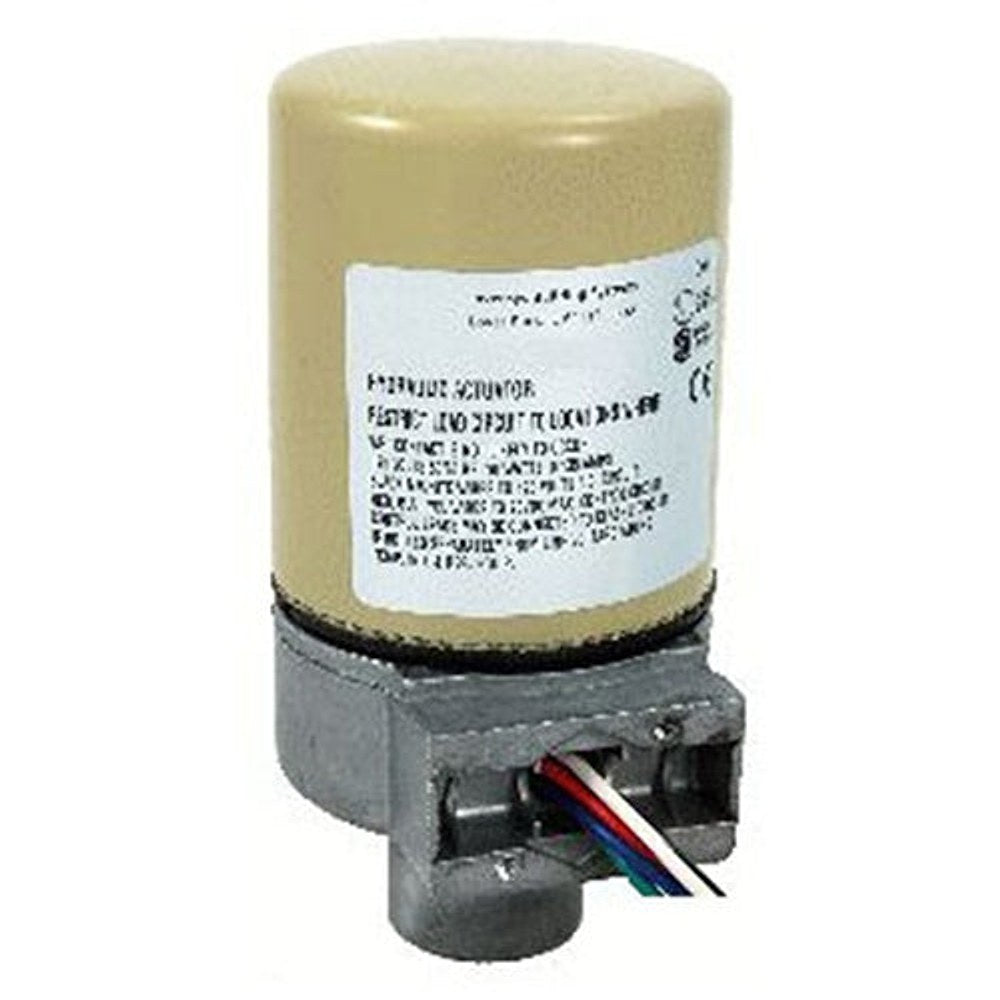

Schneider Electric MA-5213-500 Damper/Valve Actuator

The Schneider Electric MA-5213-500 Damper/Valve Actuator is a reliable ON/OFF, SPST 2-position actuator designed for damper and globe valve control. With spring-return operation, it provides fail-safe positioning in HVAC systems. This 24V AC actuator delivers up to 10 watts of power and up to 20 in-lbs of torque, making it suitable for a wide range of damper applications. Built in a NEMA 1 enclosure, the unit fits a compact footprint (3-1/4" diameter x 3-23/32" width x 6-3/4" height) and is designed for harsh environments from 0 to 140°F. It carries UL 873, CSA, and CE approvals, ensuring safety and compatibility in demanding installations.

• Voltage and frequency: 24V AC, 50/60 Hz
• Operation and control: ON/OFF, SPST, 2‑Position, spring‑return (electric/hydraulic)
• Performance: 10 W power, 20 in-lb torque
• Enclosure and wiring: NEMA 1 enclosure; 4 ft color‑coded leads with 1/2" conduit
• Environment and approvals: 0–140°F; UL 873, CSA, CE
• Applications: Damper and globe valve control
