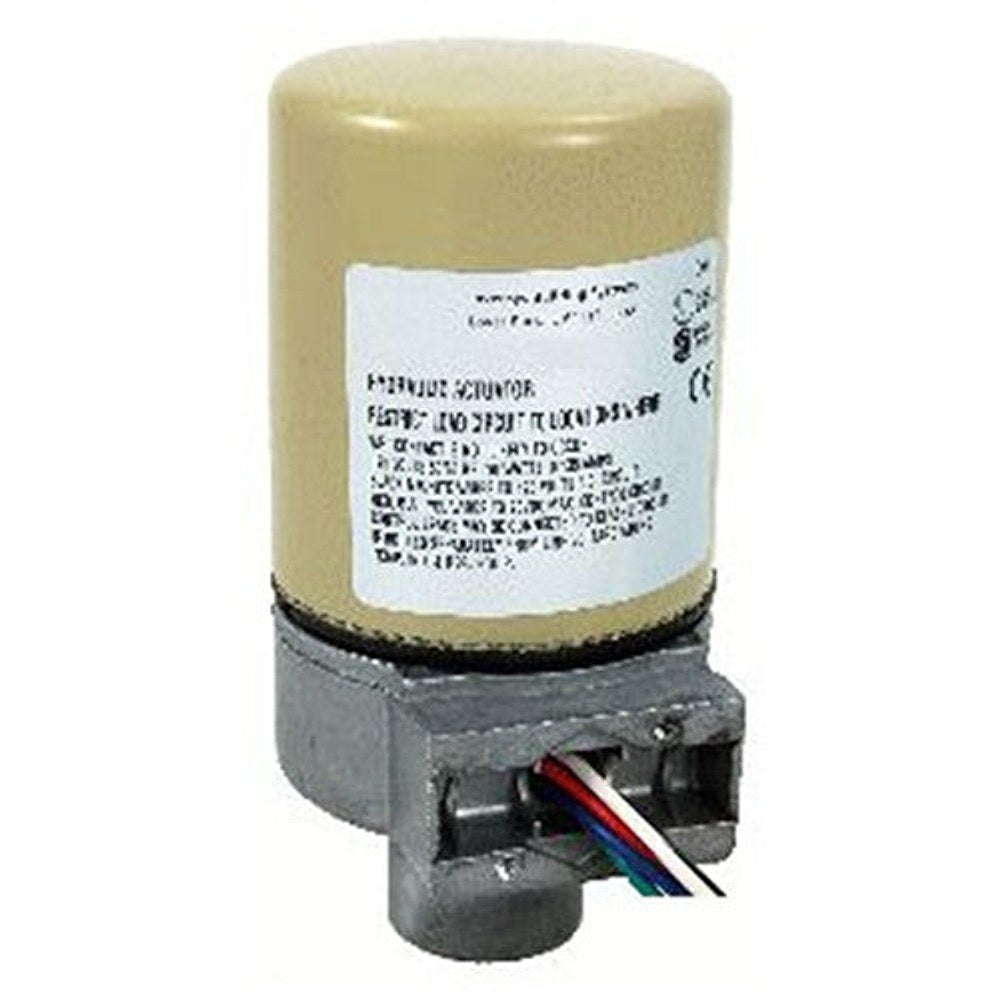

Schneider Electric MA-5213 Damper/Valve Actuator

Schneider Electric MA-5213 Damper/Valve Actuator

$1,122.50 USD
$1,122.50 USD
Sale Sold out
Shipping calculated at checkout.

Low stock: 5 left

15258

View full details

Schneider Electric MA-5213 Damper/Valve Actuator is an ON/OFF SPST actuator designed for dampers and globe valves. This 2-position, linear actuator uses Spring Return for fail-safe operation and runs on 24V AC, 50/60 Hz, delivering 10 W of power.

Built for reliable industrial HVAC performance, it features a NEMA 1 enclosure and a compact footprint: 3-1/4" diameter, 3-23/32" width, and 6-3/4" height. Wiring is easy with a 4-foot color-coded lead and 1/2" conduit connection. Operating temperature is 0 to 140°F.

  • Type: ON/OFF, SPST
  • Voltage: 24V AC
  • Operation: Spring Return, 2-Position
  • Enclosure: NEMA 1
  • Applications: Damper, Globe Valve
  • Torque: 20 in-lb
  • Temperature Range: 0–140°F
  • Approvals: UL 873, CSA, CE

Specifications

TypeON/OFF, SPST, Electric/Hydraulic, 2-Position, Linear
Size3-1/4 Inch Diameter x 3-23/32 Inch Width x 6-3/4 Inch Height
Voltage Rating24 Volt AC
Power Rating10 Watt
Frequency50/60 Hertz
ApplicationDamper, Globe Valve
ApprovalsUL 873, CSA, CE
EnclosureNEMA 1
Operation TypeSpring Return
Torque20 Inch-Pound
Operating Temperature0 to 140 Deg F
Supply Connection4 Foot Color Coded Lead with 1/2 Inch Conduit
Max AC Voltage24 Volt
