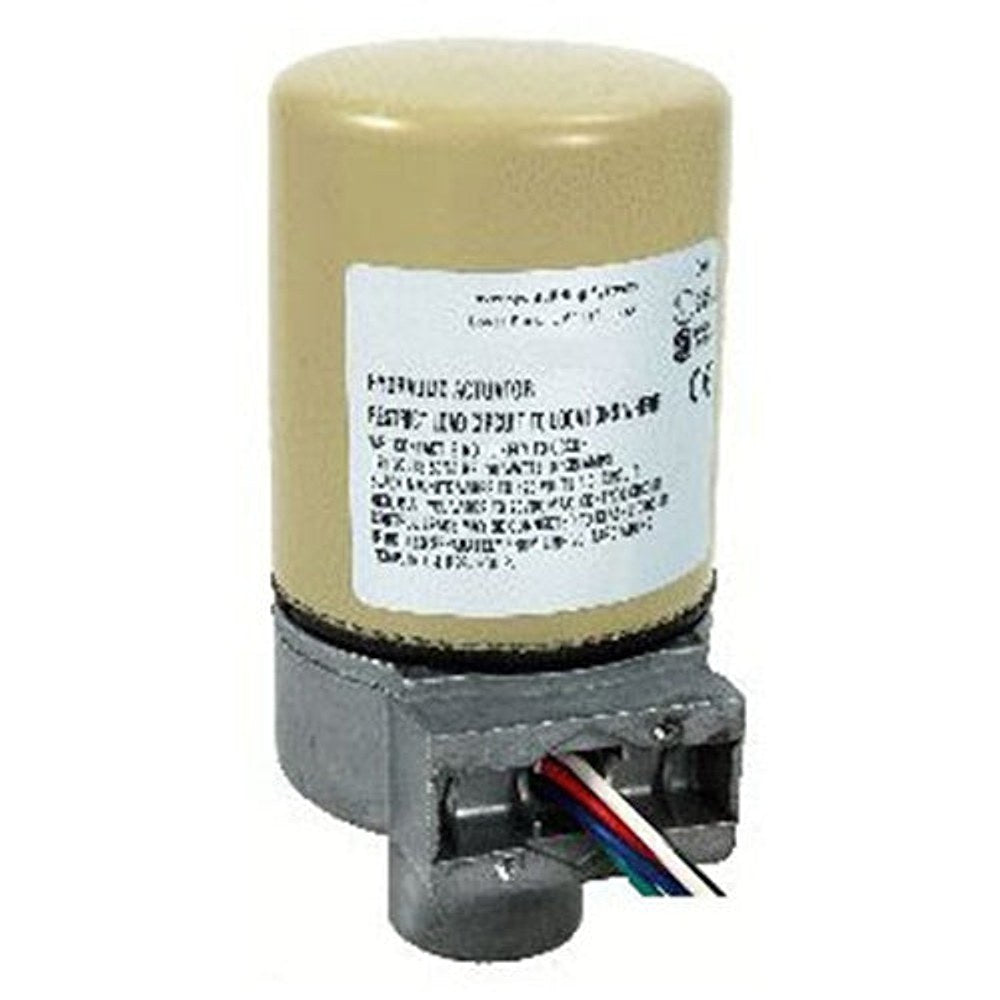

Schneider Electric MP-5513 Hydraulic Valve Actuator

Schneider Electric MP-5513 Hydraulic Valve Actuator is a spring-return, proportional actuator designed for precise positive positioning in HVAC and industrial fluid-control systems. This 2-position device accepts a 0-10 VDC control signal to deliver accurate linear movement for damper or valve applications. The damper stroke is 2 inches, while the valve stroke is 9/16 inch, enabling versatile control with a single actuator. The unit runs on 24 Volt AC at 50/60 Hz and features a durable die-cast lower housing paired with a painted steel upper housing for reliable service.

• Proportional control with 0-10 VDC input for damper and valve applications
• Spring-return, 2-position design for positive positioning
• Stroke: 2 inches (damper) and 9/16 inch (valve)
• Robust construction: die-cast lower housing, painted steel upper housing
• Electrical compatibility: 24 VAC, 50/60 Hz; impedance 10,000 Ohms
• Power rating: 10 Watts; approvals: UL, CSA, CE

Designed for durable HVAC and process-control integration, the MP-5513 delivers dependable electrical performance and easy system integration with standard 0-10 VDC controllers, ensuring smooth, precise actuation across a range of environments.
