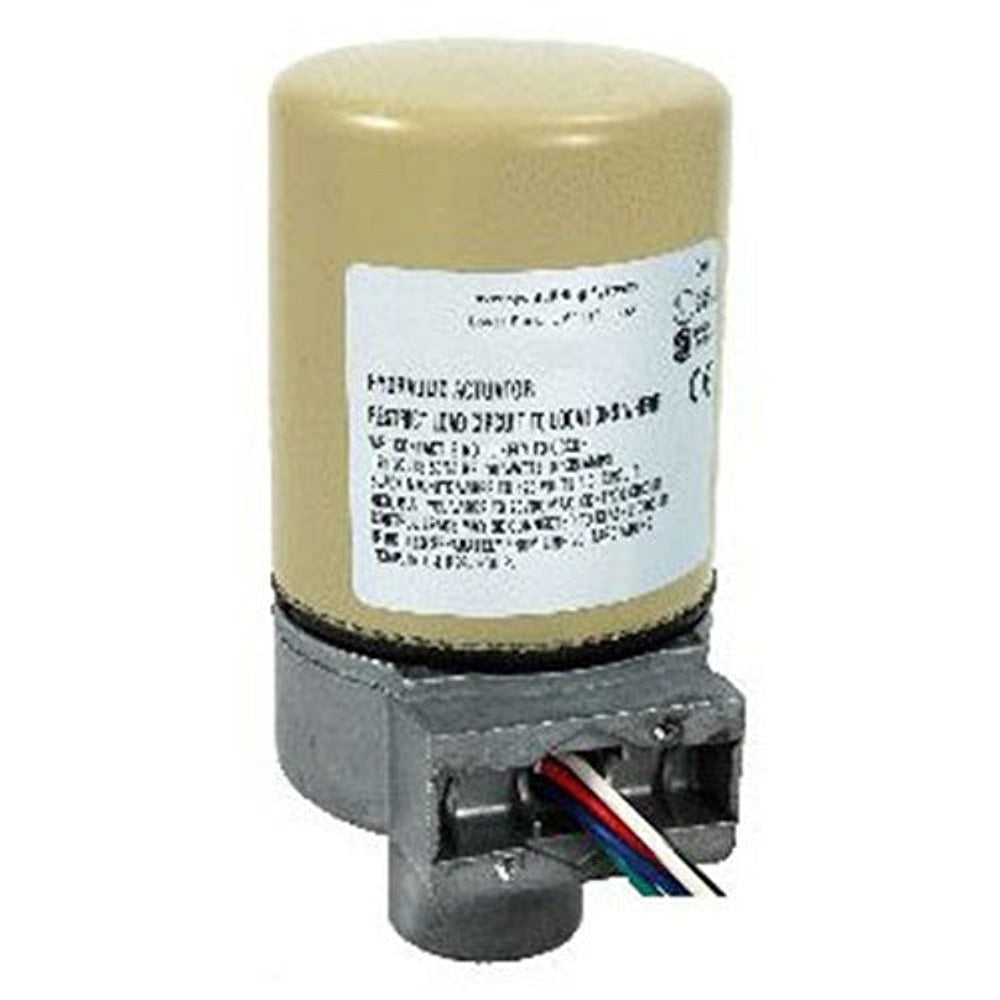

Schneider Electric MPR-5610 Hydraulic Valve Actuator

The Schneider Electric MPR-5610 Hydraulic Valve Actuator delivers precise valve control with a spring return design and proportional positioning for reliable operation. This 2-position actuator provides positive positioning across a range of industrial applications, ensuring accurate valve travel and repeatable performance.

Designed for rugged environments, the unit measures 6-3/4 in x 3-1/4 in and offers two stroke options: 2 inches for damper control and 9/16 inch for valve travel. It runs on 120 Volt AC at 50/60 Hz with a compact die-cast lower housing and painted steel upper housing to withstand demanding conditions. An impedance of 82.5 Ohm and a 10 Watt power rating ensure efficient operation, while UL, CSA, and CE approvals confirm safety and compliance.

• Operation: Spring Return, Proportional, Positive Positioning
• Positioning: 2-Position valve control
• Electrical: 120 V AC, 50/60 Hz, 82.5 Ohm impedance, 10 W
• Construction: Die-Cast lower housing, Painted steel upper housing; compact size 6-3/4" × 3-1/4"
• Stroke Options: 2" damper stroke, 9/16" valve stroke
• Certifications: UL, CSA, CE compliant

Ideal for automation projects requiring reliable control, easy system integration, and consistent performance across multiple valve applications.
