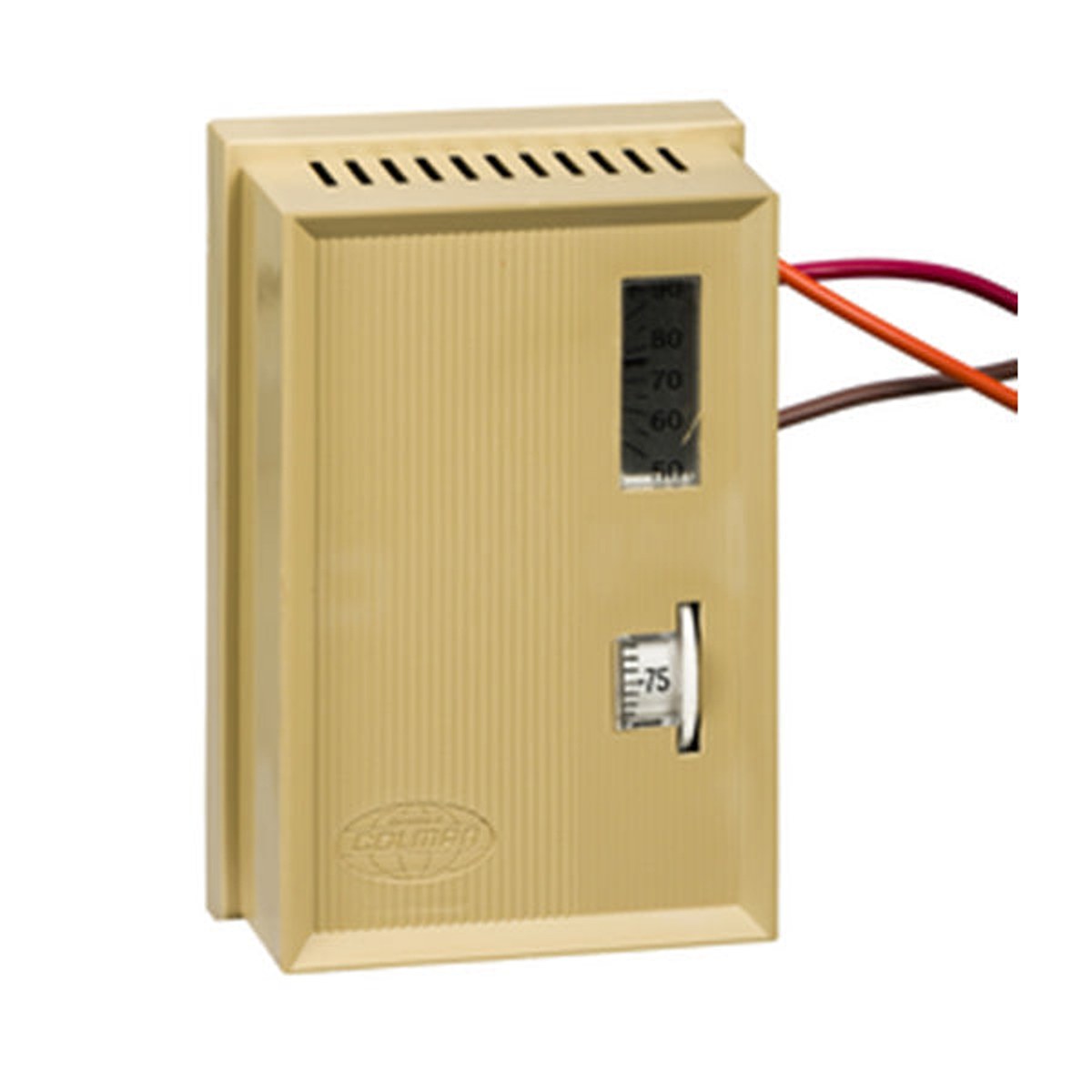

Schneider Electric TC-1101 Room Thermostat

Schneider Electric TC-1101 Room Thermostat is a versatile, UL-approved 2-Position electric duplex thermostat designed for precise low- or line-voltage on-off control of fan coils, fan motor starters, contactors, and electric actuators.

Its compact plastic beige enclosure supports flush, surface, or wall mounting, making it ideal for replacement installs and new equipment in a wide range of HVAC applications. Equipped with a bi-metal sensing element and SPDT snap-action switch, the TC-1101 handles 24/120/240 VAC with current ratings of 4.4/3 A at 24/120 VAC and 2.2/1.5 A at 240 VAC (full load), plus a pilot-duty rating of 40 VA at 24 V or 210 VA at 120/240 V.

Temperature settings range from 55 to 85°F, enabling comfortable climates in living and working spaces while delivering dependable on-off control for fan coils, actuators, and related equipment.

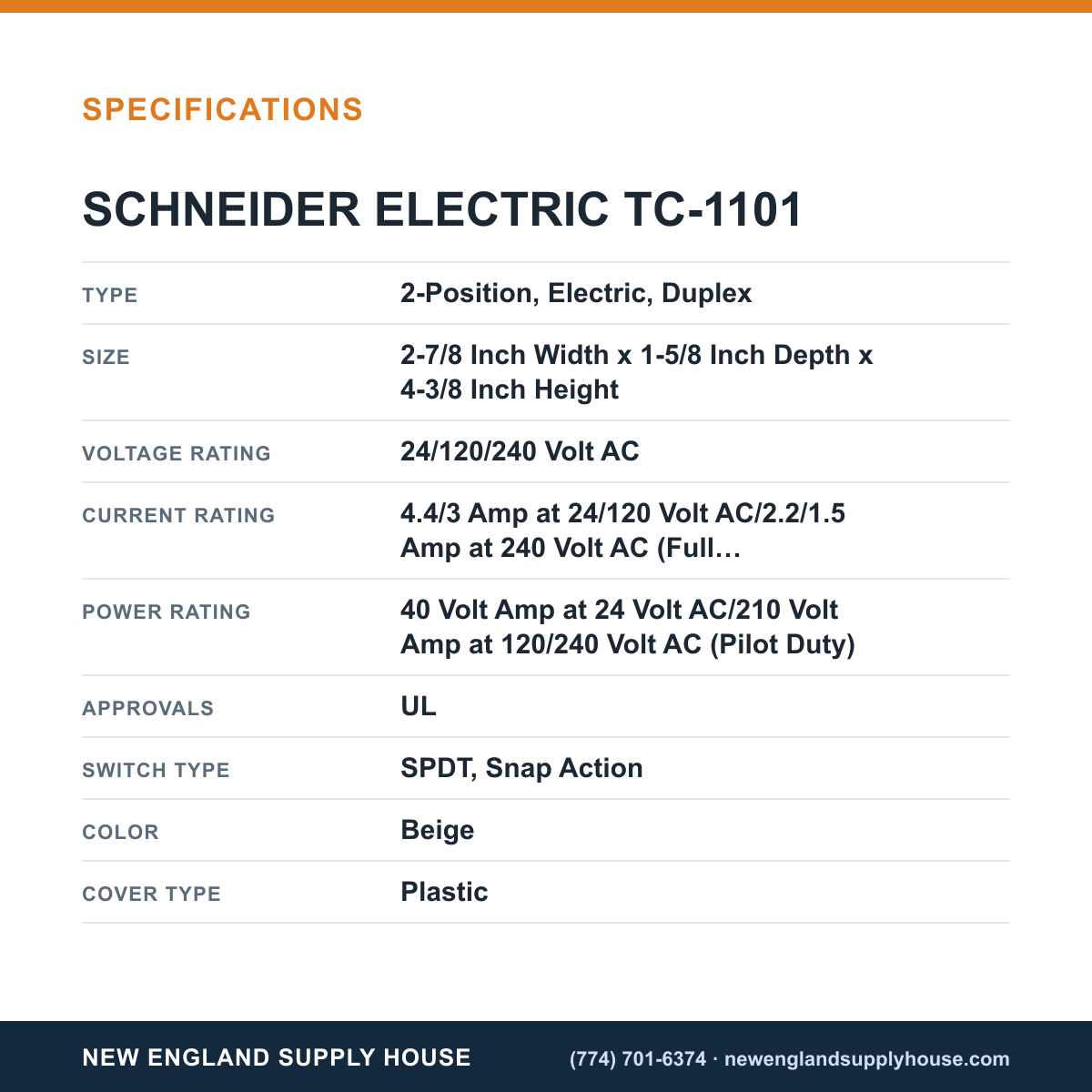

• Voltage compatibility: 24/120/240 VAC
• Current ratings: 4.4/3 A at 24/120 VAC; 2.2/1.5 A at 240 VAC
• Pilot duty: 40 VA @ 24 V; 210 VA @ 120/240 V
• Switch type: SPDT, snap-action
• Sensing element: Bi-metal
• Mounting options: Flush, surface, or wall
• Temperature range: 55–85°F
