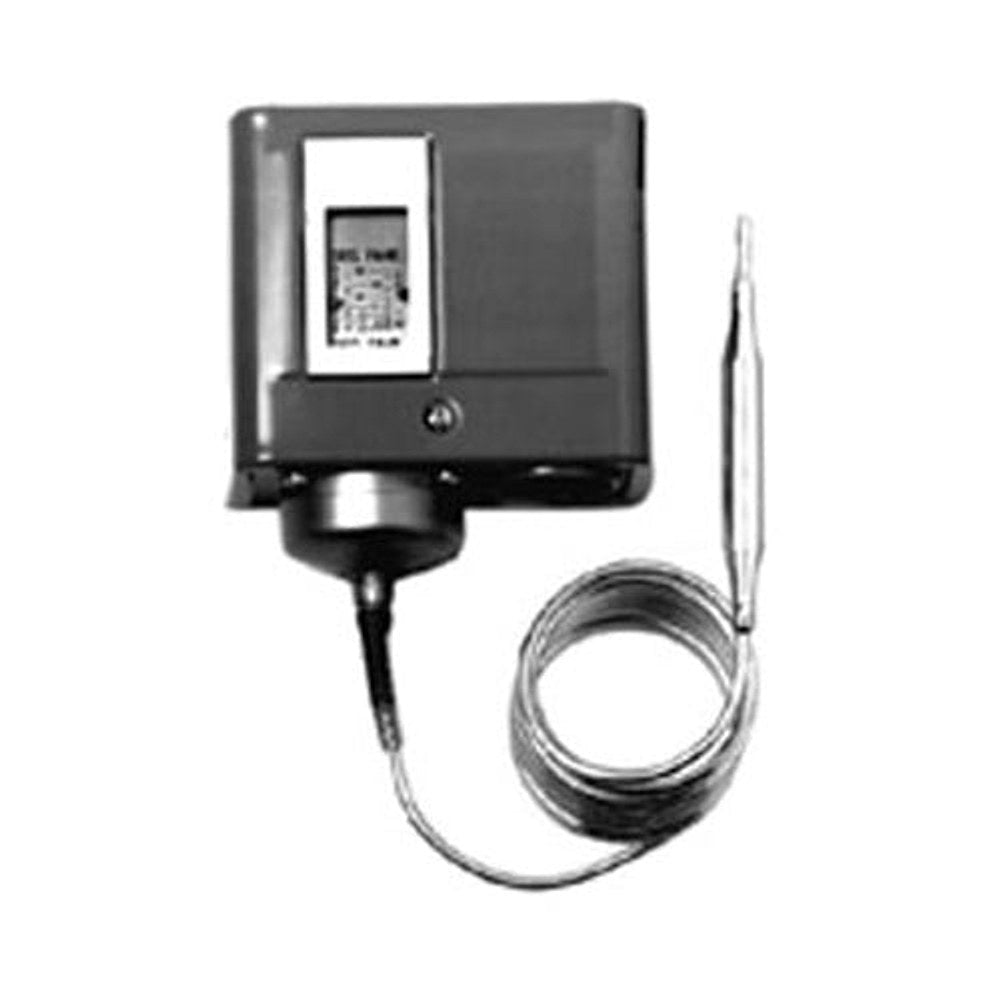

Schneider Electric TC-5231 Temperature Thermostat

Schneider Electric TC-5231 Temperature Thermostat delivers precise climate control for HVAC and refrigeration systems. This auto reset, low-temperature thermostat uses an SPDT contact configuration and a vapor-pressure sensing element to safeguard equipment and ensure dependable operation in demanding environments.

Built for rugged reliability, it features a NEMA 1 enclosure with a PVC cover and zinc-plated steel frame, and a screw-terminal connection for secure wiring. UL and CSA approvals provide safety and compliance for professional installations in air conditioning and refrigeration applications.

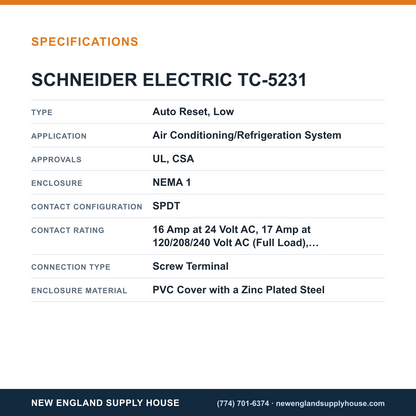

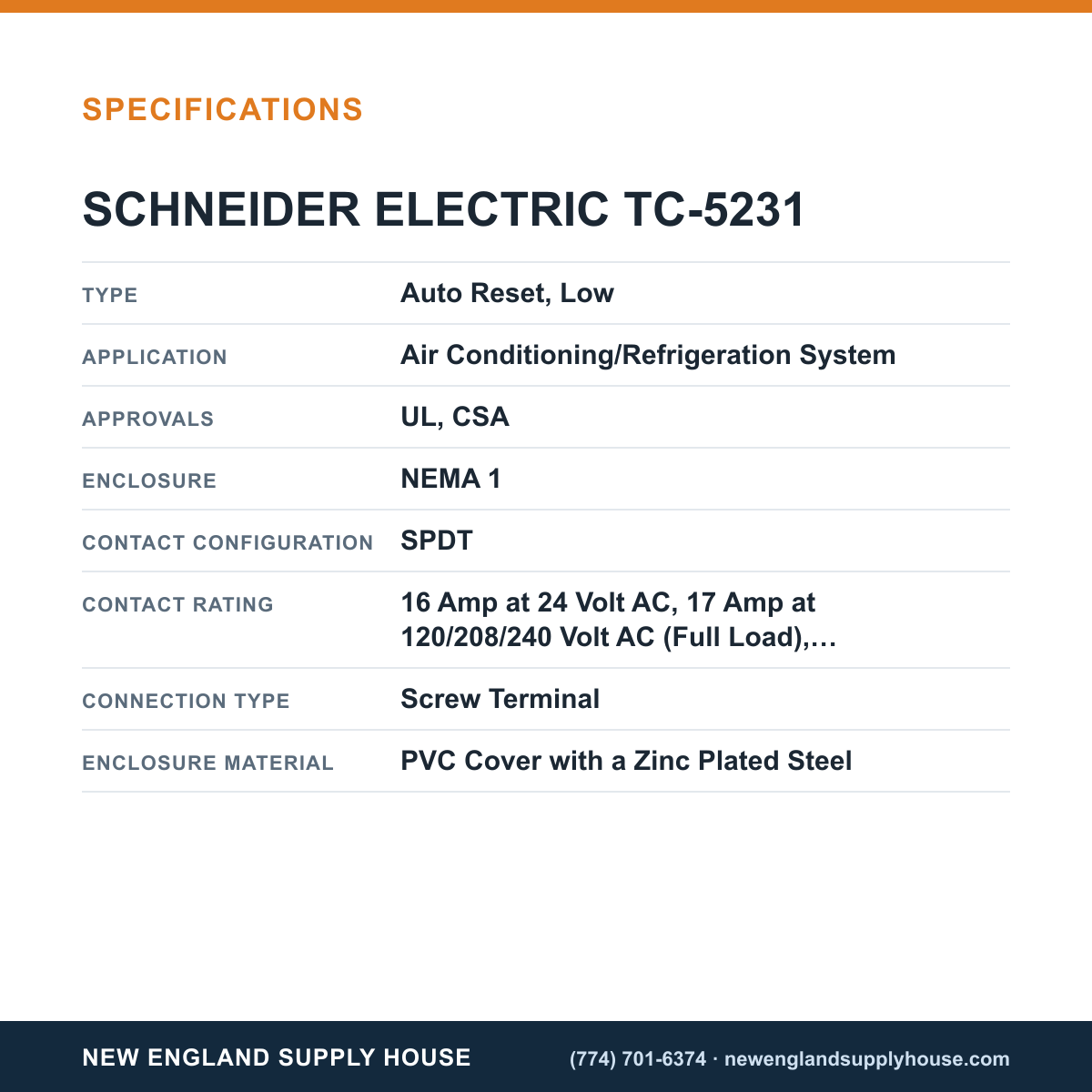

Key specifications include a wide ambient range (-40°F to 150°F; operating limit 5°F), a copper sensing element rated for 300°F, and a compact footprint (3.44 in W x 1.97 in D x 2.7 in H). It supports high current loads and pilot duties across 24V and 120/208/240V systems, making it a versatile choice for HVAC safety and control.

• SPDT contact configuration for versatile control
• Screw-terminal connection for secure wiring
• NEMA 1 enclosure with PVC cover and zinc-plated steel
• UL and CSA approved for safety and compliance
• Ideal for air conditioning and refrigeration systems
• Vapor-pressure sensing element with copper sensor
• Mounts in any position on surfaces not subject to excessive vibration
• Ambient: -40°F to 150°F; 5°F operating, 5–95% RH non-condensing
• Pilot-duty and full-load ratings at 24V and 120/208/240V
