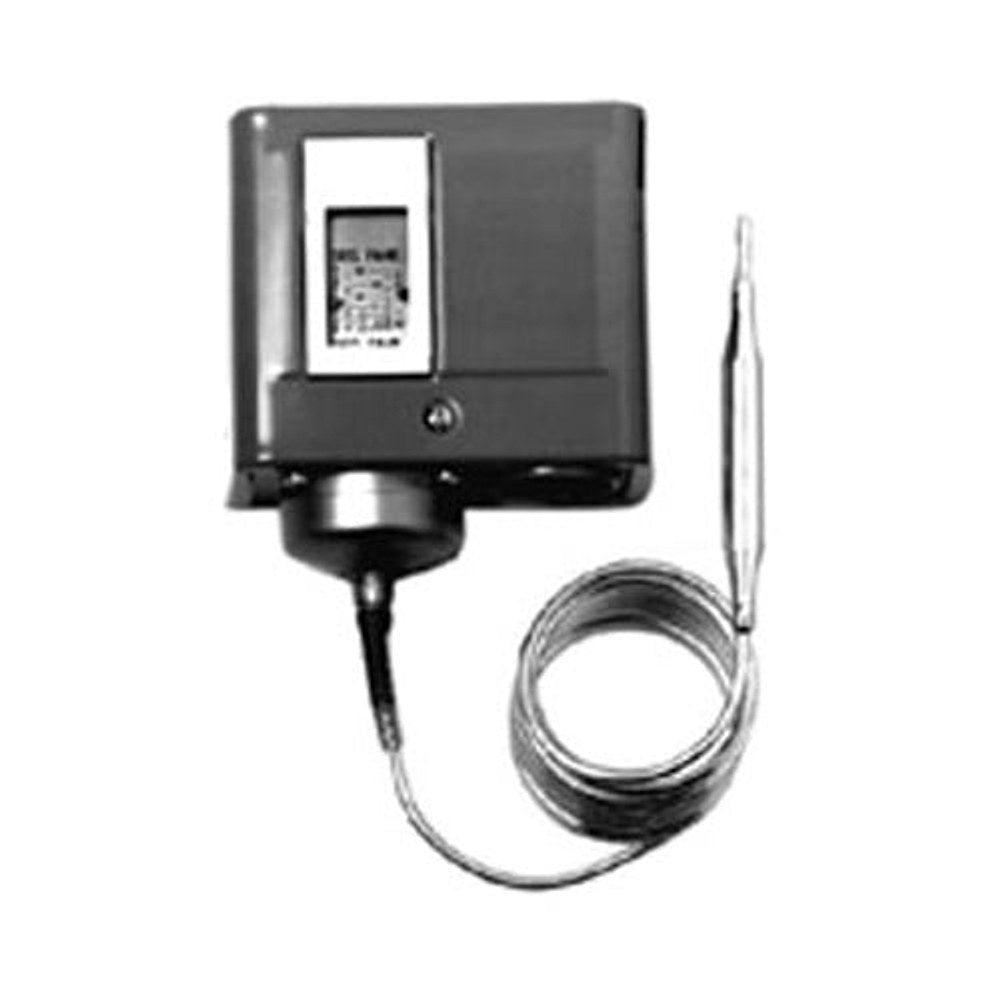

Schneider Electric TC-5241 Temperature Thermostat

The Schneider Electric TC-5241 Temperature Thermostat is a dependable manual reset low-temperature control designed for air conditioning and refrigeration systems. With SPDT contacts and screw-terminal wiring, it offers precise switching and versatile operation in compact control panels. The sturdy enclosure features a PVC cover with a zinc-plated steel frame and a NEMA 1 rating for reliable protection in typical equipment rooms.

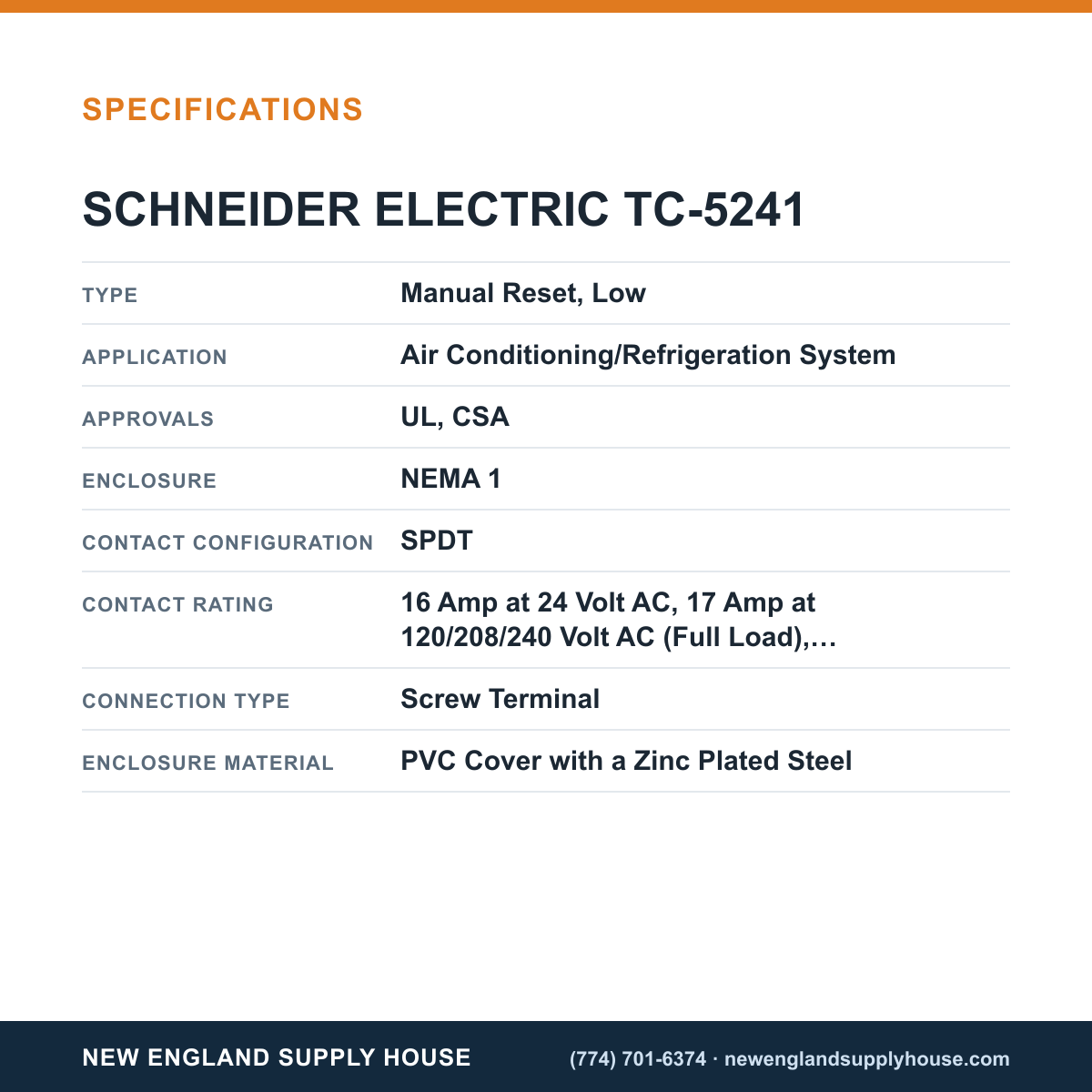

Key specifications support robust HVAC performance, including contact ratings of 16 A at 24 V AC and 17 A at 120/208/240 V AC (full load), with higher ratings for locked rotor and pilot-duty applications. The device uses a vapor-pressure sensing element with a copper sensor and a 300°F thermal limit, enabling precise responses to rising temperatures. It is designed for mounting in any position on surfaces not subject to excessive vibration, and operates across -40 to 150°F ambient (5°F operating).

• SPDT contact configuration for flexible switching of cooling and heating circuits
• Screw-terminal connections for secure, easy wiring
• UL and CSA approved ensures safety and compliance
• NEMA 1 enclosure with PVC cover and zinc-plated steel frame for durable protection
• Wide operating range -40°F to 150°F ambient with a 300°F sensing element limit
