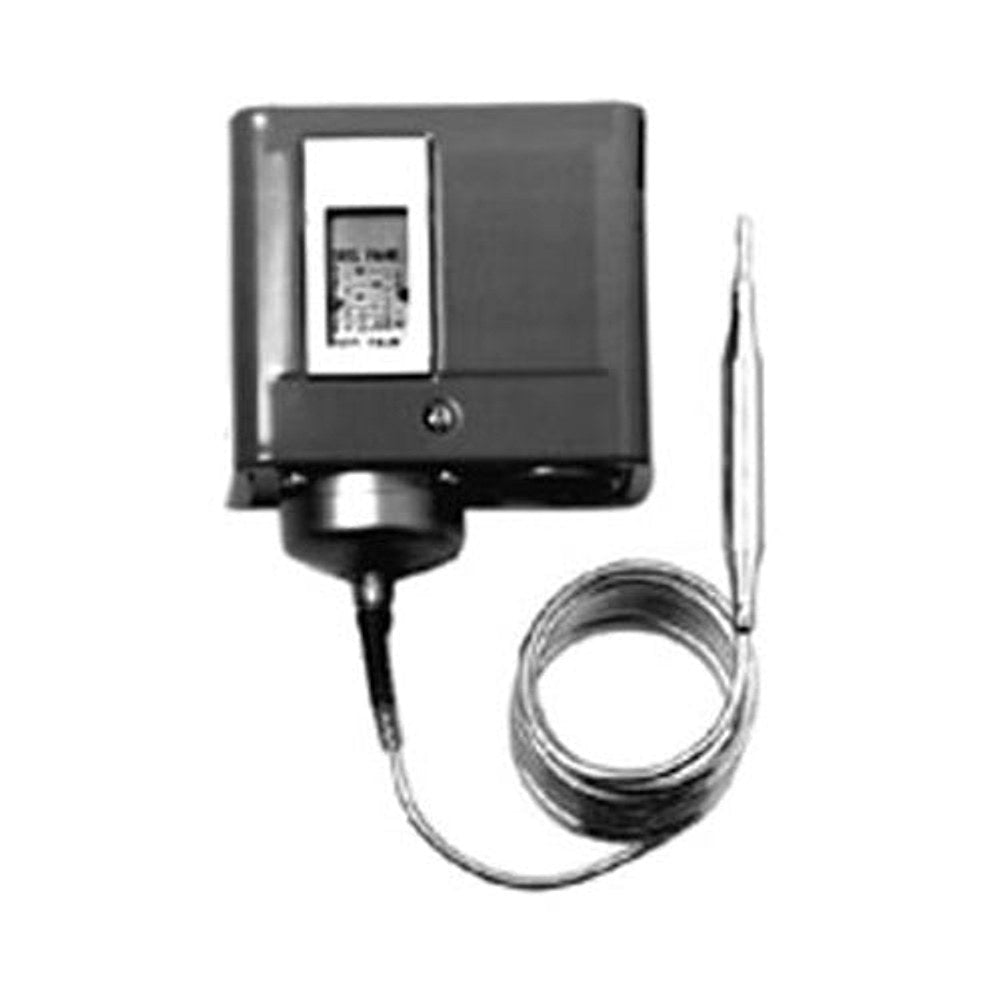

Schneider Electric TC-5242 Temperature Thermostat

Schneider Electric TC-5242 Temperature Thermostat is a rugged low-limit thermostat designed for dependable control in HVAC and industrial systems. This SPDT, snap-action device provides precise switching with a 16 A at 120 V AC main circuit rating and a 6 A auxiliary circuit rating, and it carries UL and CSA approvals for safe operation. The thermostat handles a maximum temperature rating of 400 deg F and offers an adjustable temperature range from 15 to 55 deg F, with a factory-set low-limit stop sealed at 35 deg F.

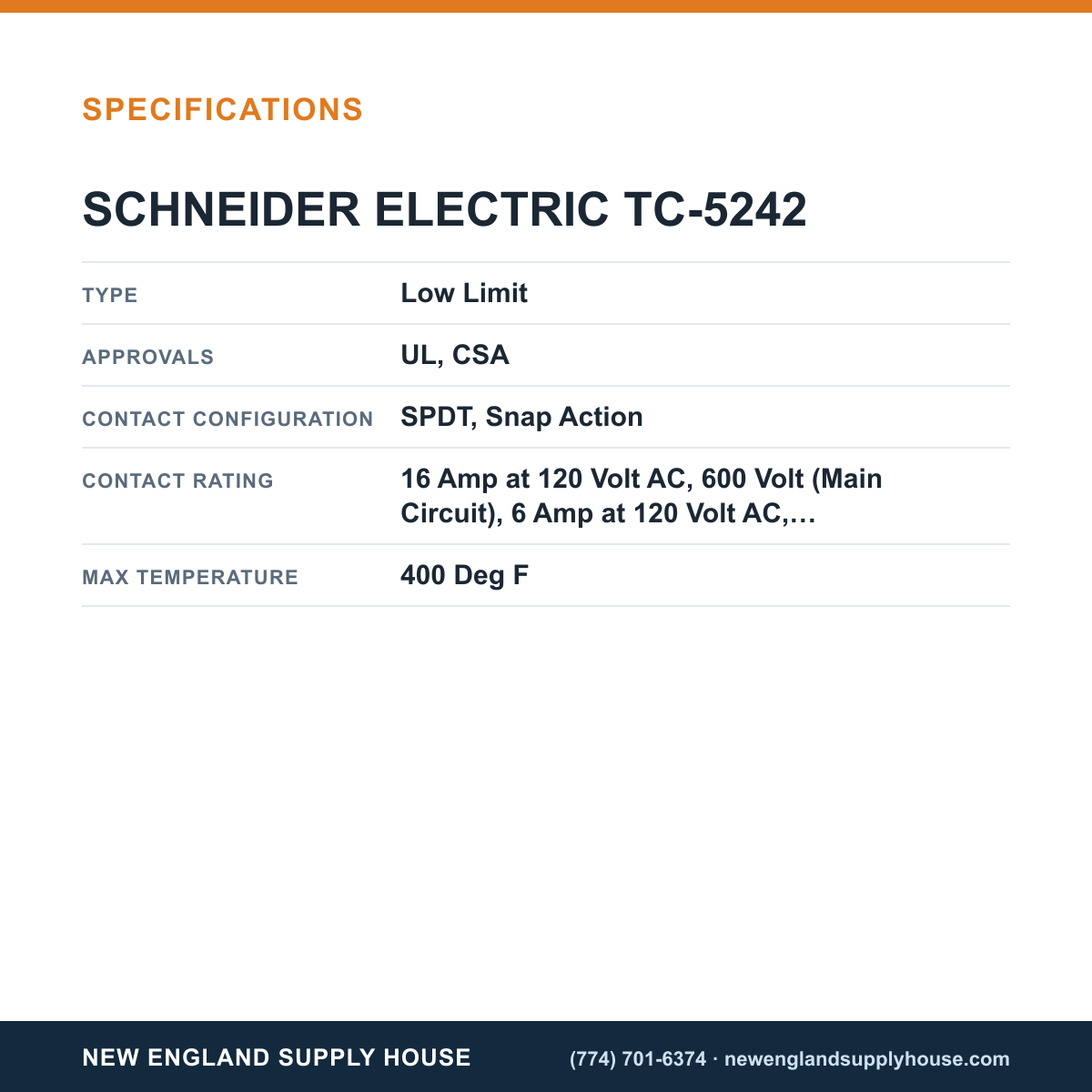

• Type: Low Limit, SPDT, Snap Action
• Temperature range: 15 to 55 deg F; Low-limit stop at 35 deg F (factory set and sealed)
• Electrical ratings: 16 A @ 120 VAC main circuit; 6 A @ 120 VAC auxiliary; 600 V (main/auxiliary)
• Approvals: UL, CSA
• Construction: 0.062" cold-rolled steel case; 0.028" cold-rolled steel cover; Gray baked enamel finish
• Dimensions & mounting: 4" L x 2" D x 3-1/4" H; mounting in any position; 2 back-mounting holes
