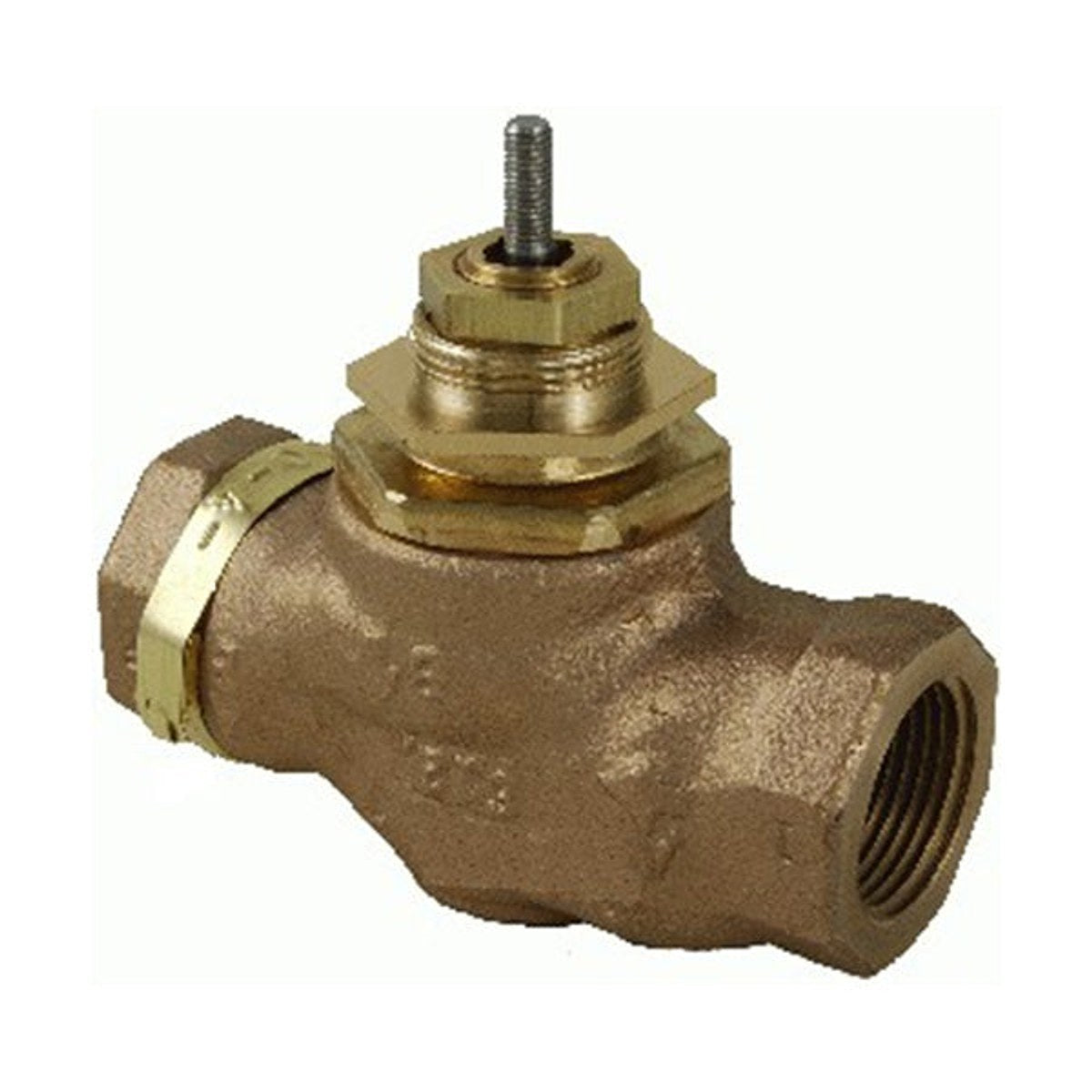

Schneider Electric VB-7213-0-4-08 Globe Valve Body

Globe Valve Body from Schneider Electric VB-7213-0-4-08 is a Type 2-Way Globe Valve engineered for precise flow control in HVAC and process piping. With 2-Position actuation, a 1 inch nominal size, and Up-Open stem design, this valve delivers reliable regulation in tight spaces. The threaded bonnet and bronze body pair with a 316 stainless steel stem, bronze seat, and PTFE/EPDM seals with an EPDM disc for long-lasting durability. Rated for 20–281°F and up to 35 PSIG steam or 87 PSI water, it supports hot/chilled water and low-pressure steam while meeting ANSI V/IV, PED, CRN, and RoHS standards.

• Type 2-Way Globe Valve with 1" nominal size
• 2-Position actuation for precise control
• Up-Open stem design; threaded bonnet for easy installation
• Bronze body, bronze seat, and 316 stainless steel stem
• Seals: PTFE/EPDM; EPDM disc for compatibility with water and steam
• Temperature rating: 20–281°F; Pressure: 35 PSIG steam / 87 PSI water
• Applications: hot/chilled water, low-pressure steam
• RoHS compliant; ANSI V and IV, PED, CRN standards; Flow capacity 14 Cv
