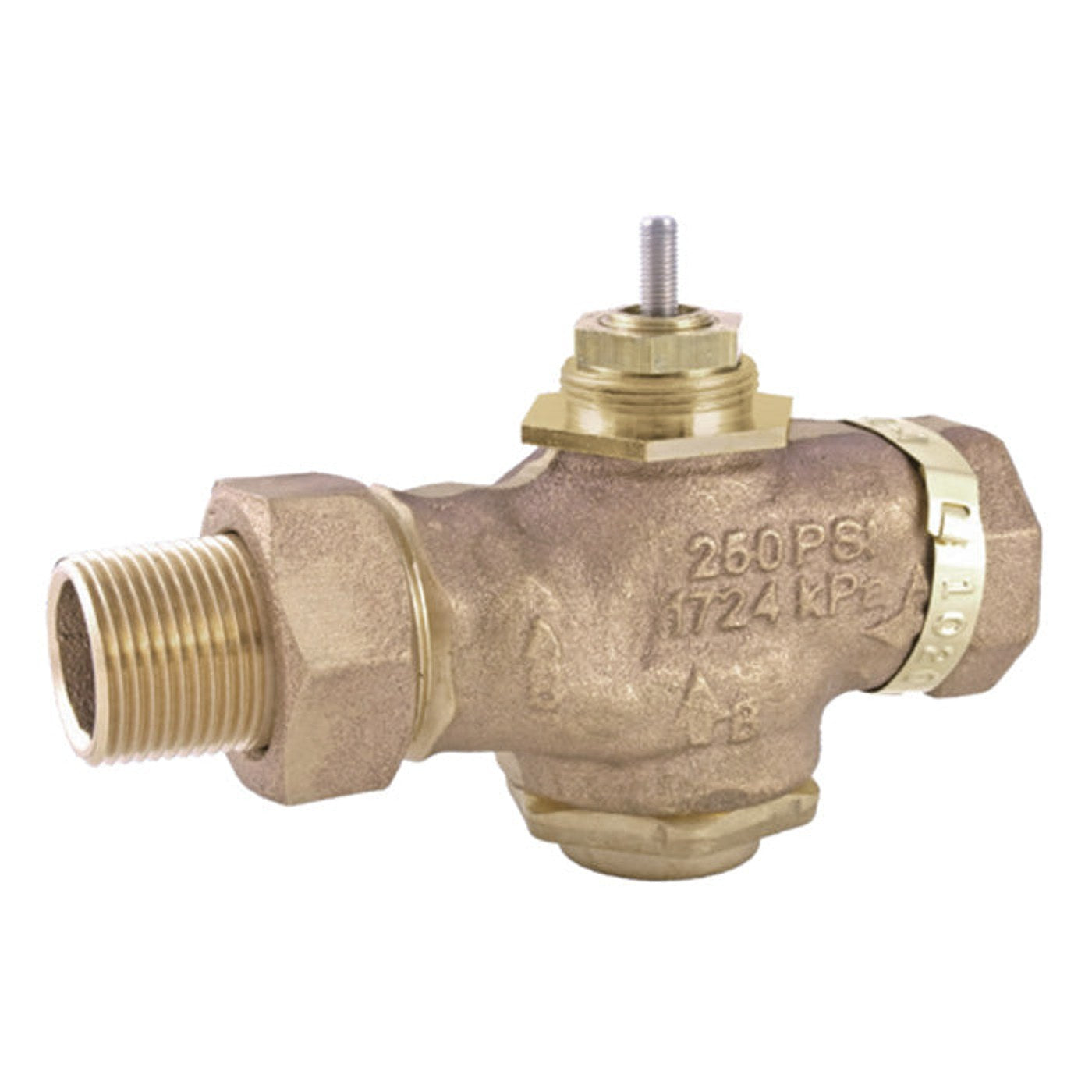

Schneider Electric VB-7221-0-4-09 Globe Valve Body

Globe Valve Body from Schneider Electric, the VB-7221-0-4-09, delivers precise, responsive flow control for hot or chilled water and low‑pressure steam. This 2-Way globe valve features a 1-1/4 inch nominal size, Up Closed stem design, and a threaded bonnet for robust service in commercial HVAC and process systems.

Built with a bronze body, a 316 stainless steel stem, bronze seats, and PTFE/EPDM seals, it provides tight shutoff and durable performance. The 2-Way globe valve design ensures stable regulation across varying loads, with a high range capability for fine control in demanding applications.

The valve is suitable for Hot/Chilled Water and Low Pressure Steam and complies with ANSI V and IV, PED, CRN standards, and is RoHS compliant. It operates from 20 to 281°F and handles up to 35 PSIG steam or 87 PSI water. With a flow capacity of Cv 20, it balances responsiveness and efficiency across circulating systems.

• Nominal Size: 1-1/4 in
• Actuation: 2-Position
• Body: Bronze; Stem: 316 Stainless Steel; Seat: Bronze
• Disc: EPDM; Seals: PTFE/EPDM
• Operating Temperature: 20–281°F
• Pressure Rating: 35 PSIG (Steam); 87 PSI (Water)
• Standards & Compliance: ANSI V and IV; PED; CRN; RoHS
• Flow Coefficient: Cv 20
