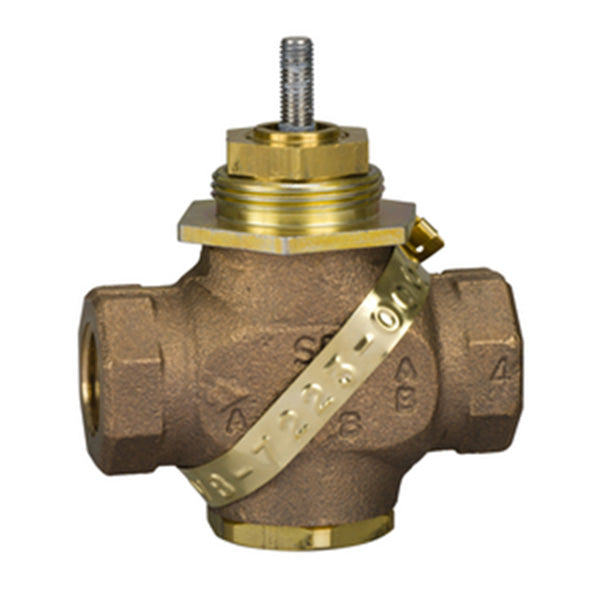

Schneider Electric VB-7223-0-4-03 Globe Valve Body

Schneider Electric VB-7223-0-4-03 Globe Valve Body provides precise flow control for hot and chilled water and low-pressure steam with a 1/2 inch nominal size. This 2-Way globe valve features 2-position actuation, a threaded bonnet, and a durable bronze body with a 316 stainless steel stem.

Key materials include bronze body, 316 stainless steel stem, bronze seats, EPDM disc, and PTFE/EPDM seals, delivering reliable performance in circulation systems. The valve is rated for 20–281°F media and supports steam up to 35 PSIG and water up to 87 PSI, making it a versatile choice for HVAC and heating applications.

• 2-Way globe valve body with a 1/2" nominal size for compact installation
• 2-Position actuation provides precise, responsive regulation
• Bronze body, 316 stainless steel stem, bronze seats for long service life
• Seal materials PTFE/EPDM and EPDM disc ensure reliable shutoff
• Temperature rating: 20–281°F; Pressure rating: 35 PSIG steam / 87 PSI water
• Applications: hot/chilled water and low-pressure steam; RoHS compliant
• Compliant with ANSI V/IV, PED, CRN standards
• High-range capability for fine, accurate control and efficient regulation
