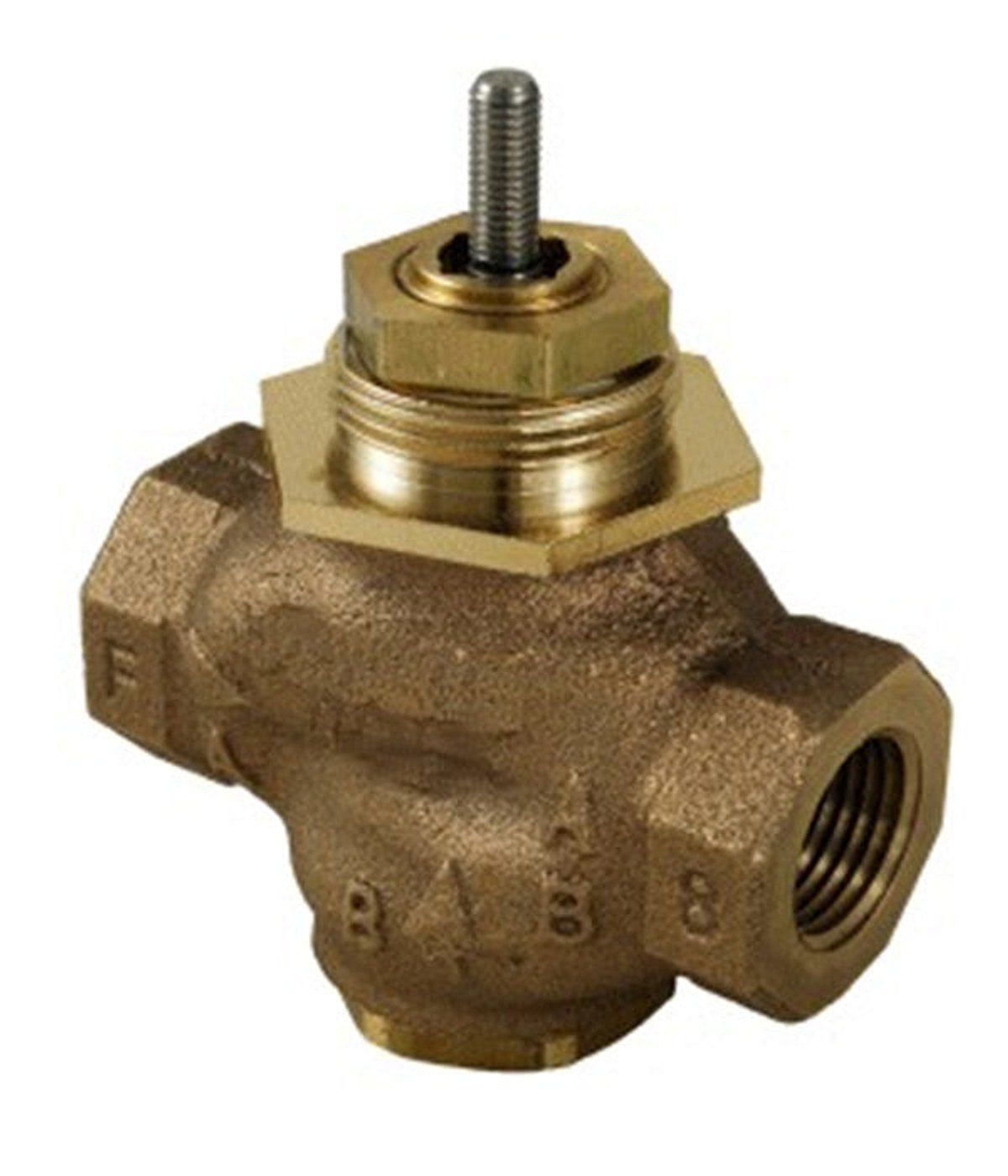

Schneider Electric VB-7223-0-4-05 Globe Valve Body

The Globe Valve Body from Schneider Electric (VB-7223-0-4-05) delivers precise, fine-tuned control for hot and chilled water and low-pressure steam. This 2-way globe valve features a 2-position actuation and a robust bronze body with a 316 stainless steel stem for lasting durability.

Nominal Size 3/4 Inch with a threaded bonnet ensures easy installation in compact piping layouts. The assembly uses bronze seats, PTFE/EPDM seals, and EPDM discs to provide reliable sealing under varied temperatures. The valve is designed for ANSI V and IV, PED, and CRN standards and is RoHS compliant, backed by a 5.5 Cv flow capacity.

Temperature range is 20 to 281 deg F (media) with pressure ratings of 35 PSIG for steam and 87 PSI for water, making it suitable for hot/chilled water applications and low-pressure steam systems. The high-range capability delivers fine, accurate control for efficient, responsive regulation.

• 2-Way Globe Valve design for precise flow control
• 2-Position actuation for simple on/off operation
• Bronze body with 316 Stainless Steel stem for durability
• Bronze seats and PTFE/EPDM seals with EPDM disc
• Temperature 20–281°F and Pressure 35 PSIG steam / 87 PSI water
• RoHS compliant and certified to ANSI V/IV, PED, CRN
