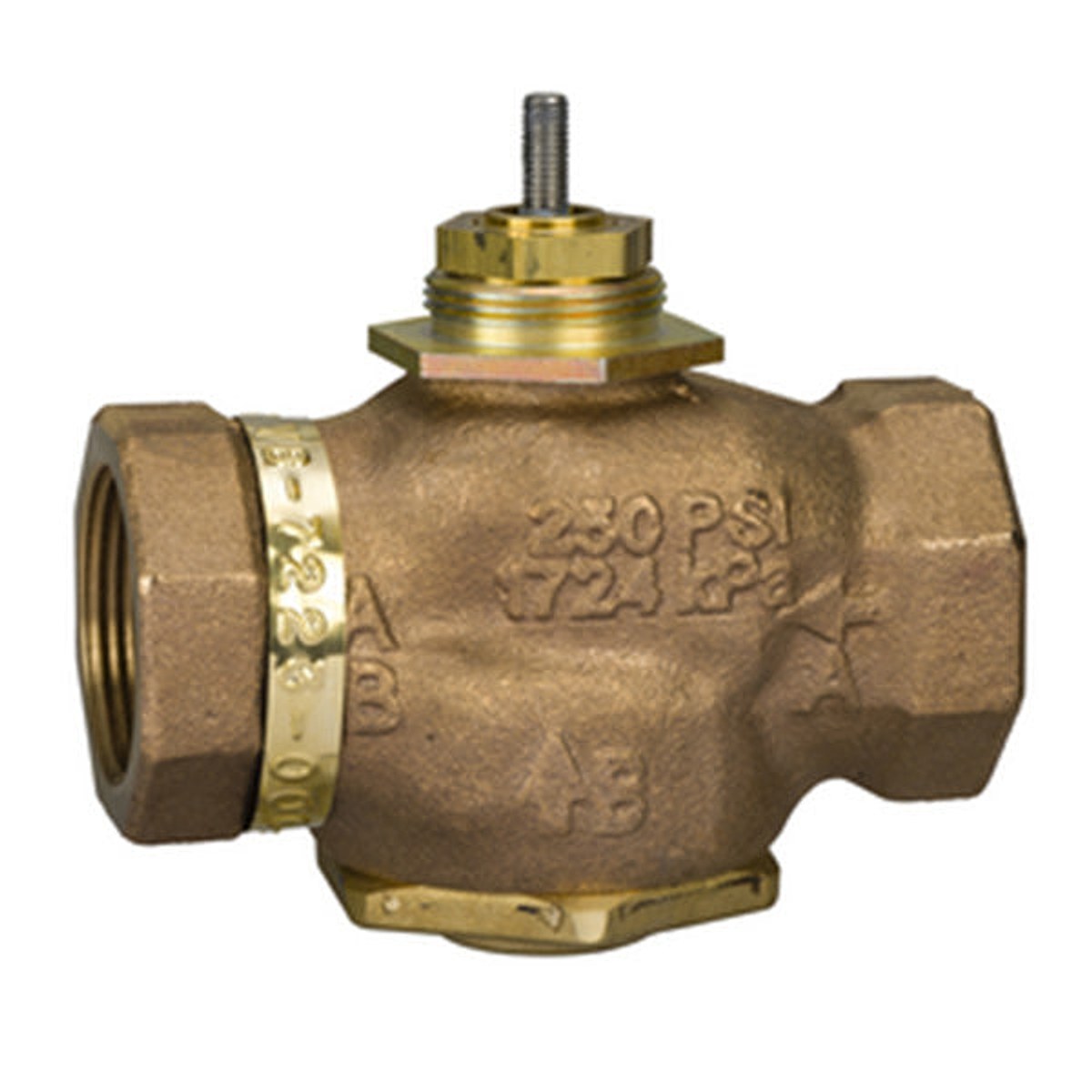

Schneider Electric VB-7223-0-4-09 Globe Valve Body

The globe valve body from Schneider Electric delivers precise, reliable control for hot and chilled water and low-pressure steam. This 2-way, 1-1/4 inch globe valve body features a 2-position actuation and a stem designed Up Closed for accurate regulation in compact systems.

Built with a bronze body, threaded bonnet, and a robust 316 stainless steel stem, it offers durable performance across HVAC circuits. Bronze seats and PTFE/EPDM seals ensure tight shut-off and long service life. The disc is EPDM, optimized for media compatibility and dependable operation.

Rated for media temperatures from 20 to 281°F and pressures up to 87 PSI for water (35 PSIG for steam), this valve is built to handle demanding HVAC and process applications. It complies with ANSI V and IV, PED, and CRN standards and is RoHS compliant, supporting safe, modern facilities.

Designed for efficient regulation, the high-range capability enables fine, accurate control for responsive and comfortable temperature regulation.

• 2-Way globe valve design for balanced flow
• Nominal size 1-1/4 in
• Materials Bronze body, threaded bonnet, 316 stainless steel stem, bronze seat
• Seals PTFE/EPDM, EPDM disc
• Temperature range 20–281°F
• Pressure ratings 87 PSI (water) / 35 PSIG (steam)
• Applications Hot/chilled water, low-pressure steam
• Standards ANSI V and IV, PED, CRN; RoHS compliant
• Flow capacity 20 Cv
