Trane Parts RLY02807 Time Delay Relay

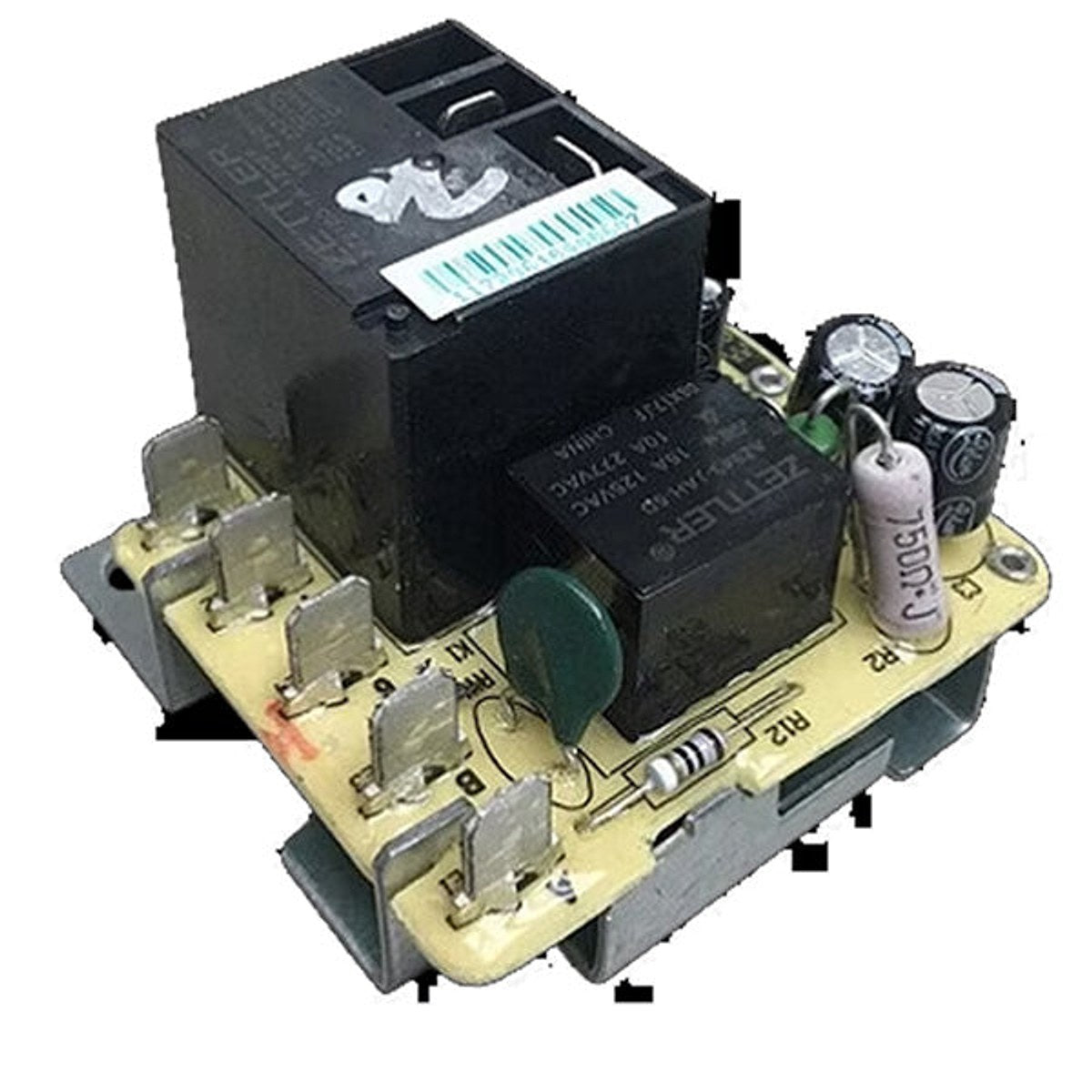

Time Delay Relay RLY02807 from Trane Parts is a dependable AC-operated timing device for HVAC control. This 24 VAC coil, on-delay timer simplifies sequencing and integrates with a compact PC board for quick installation.

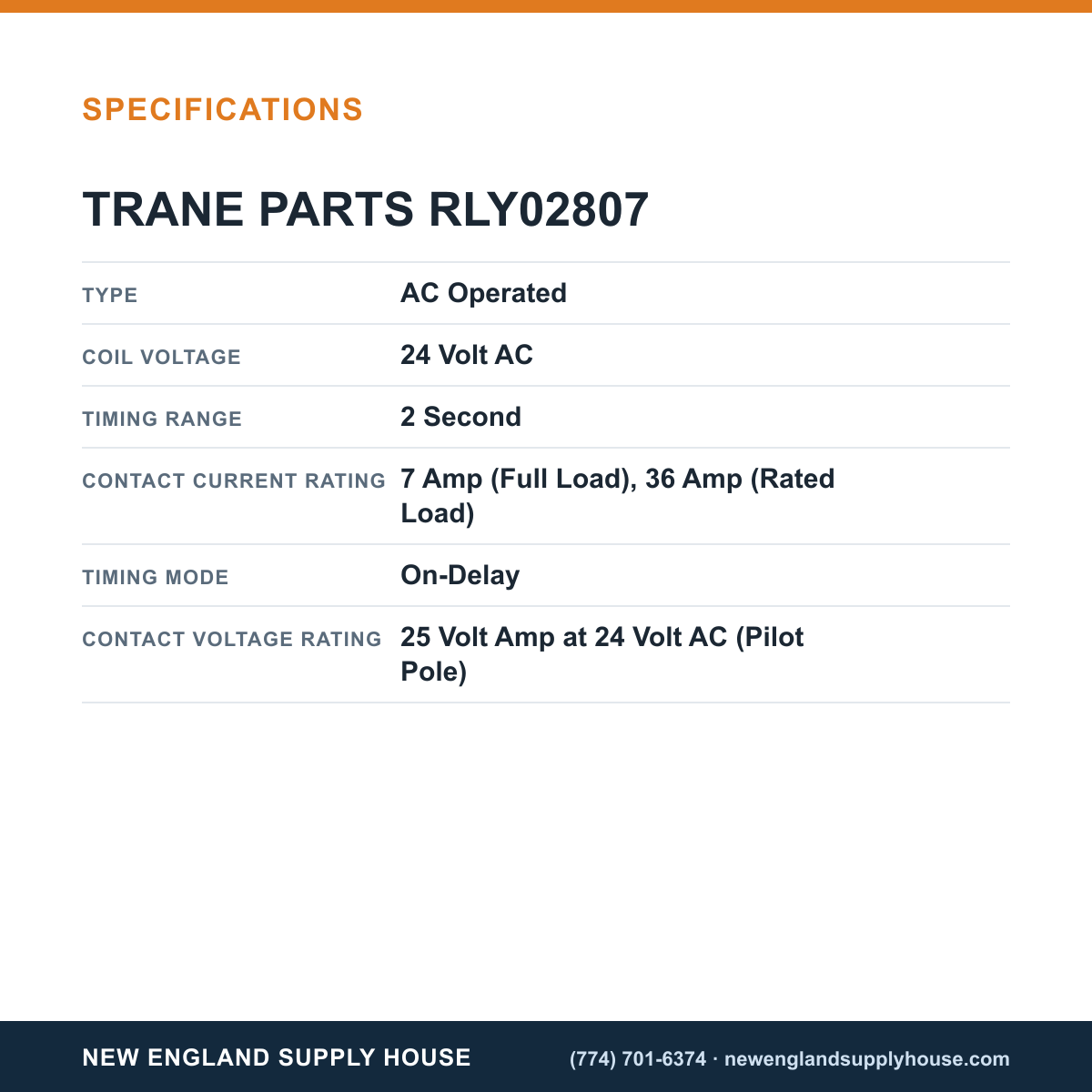

Designed for reliable performance in control circuits, this relay offers a 24 Volt AC coil, a 2-second timing range, and a pilot duty pole rated at 25 VA at 24 VAC. It handles up to 7 A full-load with a 36 A rated-load capacity and carries a UL-approved 3/4 HP rating, making it suitable for a wide range of HVAC equipment, pumps, and motorized components. Power efficiency is enhanced by low energy consumption: 0.5 VA when de-energized and 4 VA when energized. The unit includes a PC board for straightforward wiring and uses an on-delay timing mode to prevent unwanted starts, ensuring smoother system operation.

• AC-operated time delay relay with 2-second timing
• 24 VAC coil and 25 VA pilot duty at 24 VAC
• 7 A full-load, 36 A rated-load capability
• UL-approved 3/4 HP rating for common HVAC applications
• Includes PC board for easy installation
• Low power consumption: 0.5 VA (de-energized) / 4 VA (energized)
• On-delay timing mode for reliable control sequences
