Trane Parts RLY03081 Time Delay Relay

Time Delay Relay RLY03081 is an AC operated control designed for HVAC and industrial panels. With a 24 Volt AC coil and a 25 VA pilot pole, this Time Delay Relay delivers reliable on/off sequencing for precise process control.

The timing range spans 2 seconds (ON) to 45 seconds (OFF) in an On/Off-Delay mode, giving you flexible control for soft-starts, interlocks, and timed operations. It supports up to 7 A full-load and 36 A rated-load, carries a 3/4 HP rating, and is UL approved for safety and reliability in demanding environments.

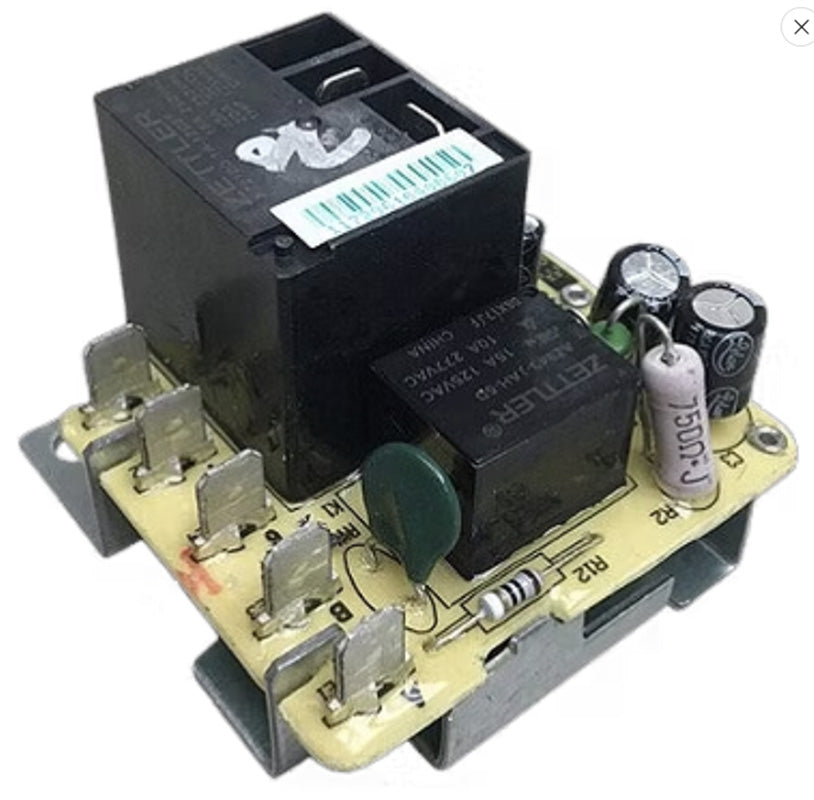

Electrical characteristics show a compact power profile: 0.5 VA when de-energized and 4 VA when energized, with a 24V AC coil and a pilot duty pole rated at 25 V at 24 V A. This module includes a PC board for straightforward installation and integration into existing control circuits.

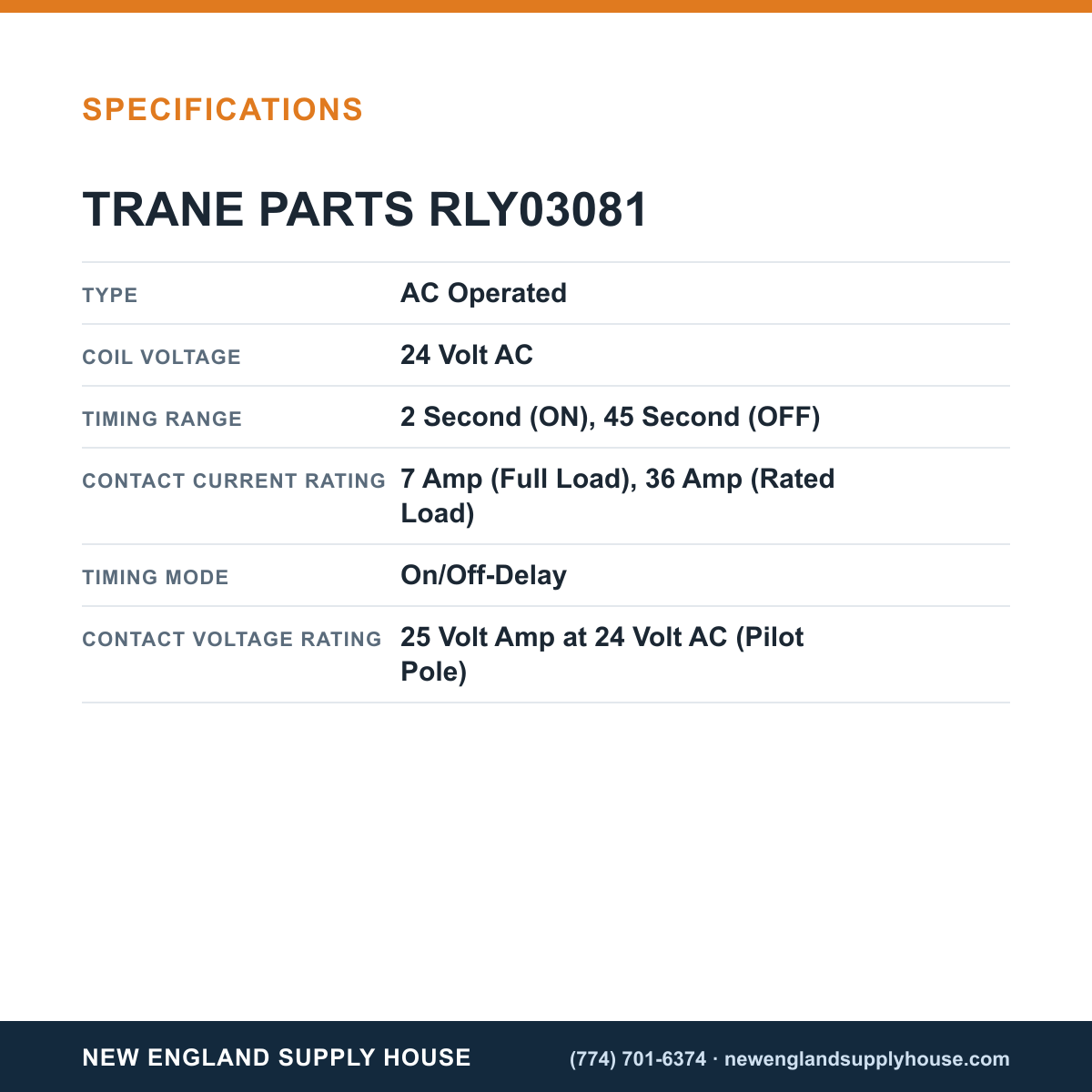

• AC operated time delay with On/Off-Delay timing
• Coil voltage: 24 V AC; contact ratings: 7 A full-load, 36 A rated-load
• Timing range: 2 s (ON) – 45 s (OFF); UL Approved, 3/4 HP
• Pilot duty pole: 25 V at 24 V A; total power: 0.5 VA de-energized, 4 VA energized
• Includes PC board for easy mounting and wiring
