Trane Parts SWT03254

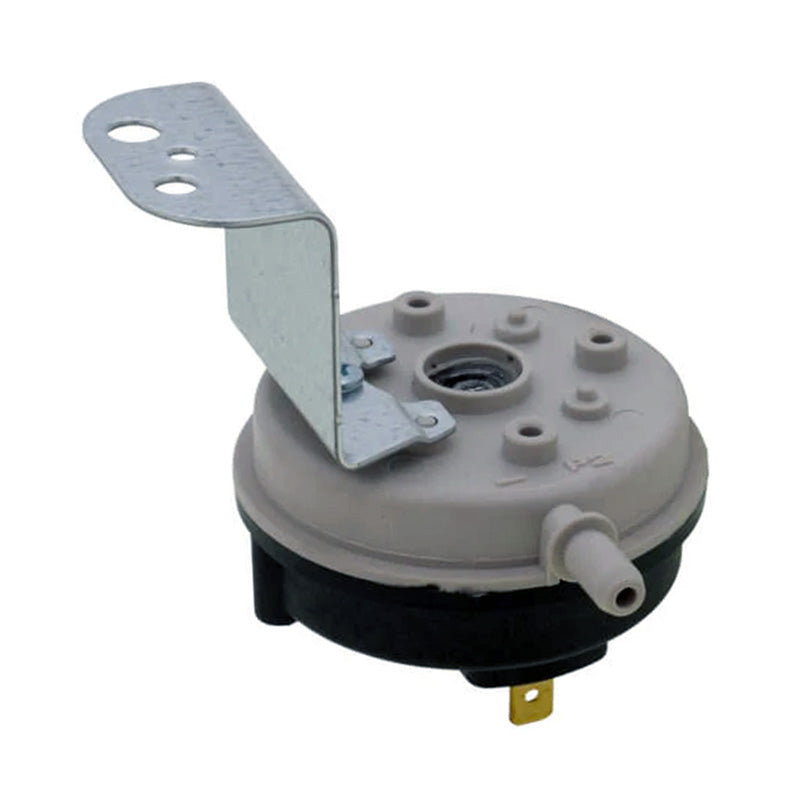

Trane Parts SWT03254 is a reliable pressure switch designed for HVAC systems, offering robust performance and compatibility with common control voltages. This switch supports 28 VA pilot duty at 24 VAC and 125 VA pilot duty at 120 VAC, making it versatile for different control configurations.

Key specifications ensure dependable operation in demanding furnace and air handler setups. The switch carries a 1/10 HP rating with 3 FLA and 18 LRA at 24 VAC, providing solid electrical performance across typical HVAC applications. It features precise pressure sensing with the switch opening at -1.59 WC and closing at -1.84 WC, delivering accurate control signals for safe, efficient system operation.

• Voltage compatibility: 24 VAC pilot duty and 120 VAC pilot duty options
• Electrical ratings: 1/10 HP, 3 FLA, 18 LRA at 24 VAC
• Pressure sensing: Opens at -1.59 WC; Closes at -1.84 WC
• Application: Ideal for Trane and other HVAC systems requiring a compact, reliable pressure switch
