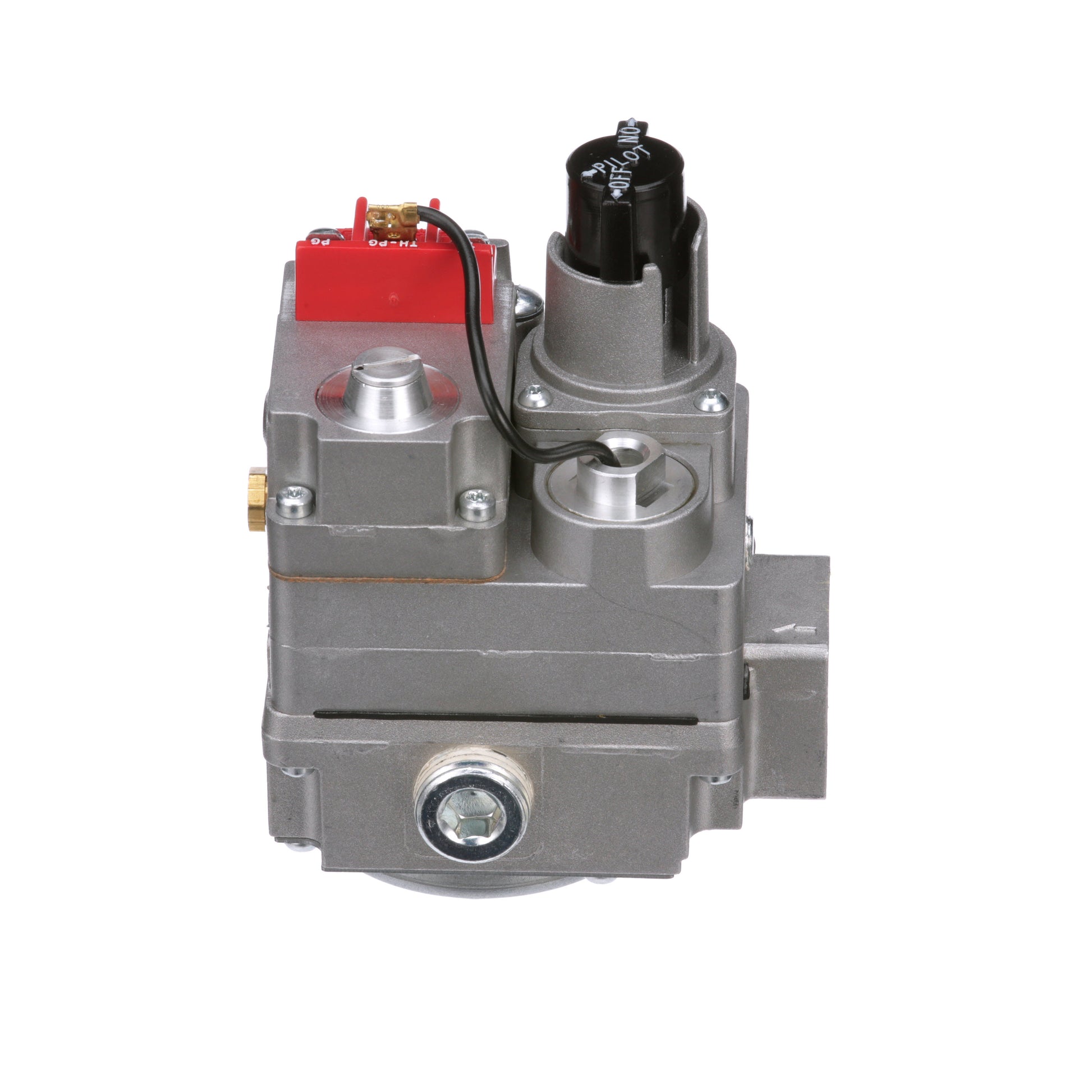

White-Rodgers 36C03U-433 Gas Valve

Introducing the White-Rodgers 36C03U-433 Gas Valve, a versatile Standing Pilot valve designed for fast open action and reliable intermittent ignition systems.

With a 3/4 inch nominal size and female threaded end connections, it supports both natural gas and liquid propane setups, making it a flexible choice for gas-fired appliances.

Built for an Intermittent Ignition System, this valve combines rugged performance with easy install, featuring Type Standing Pilot, Fast Open, Straight, Through Wiring for straightforward wiring and operation.

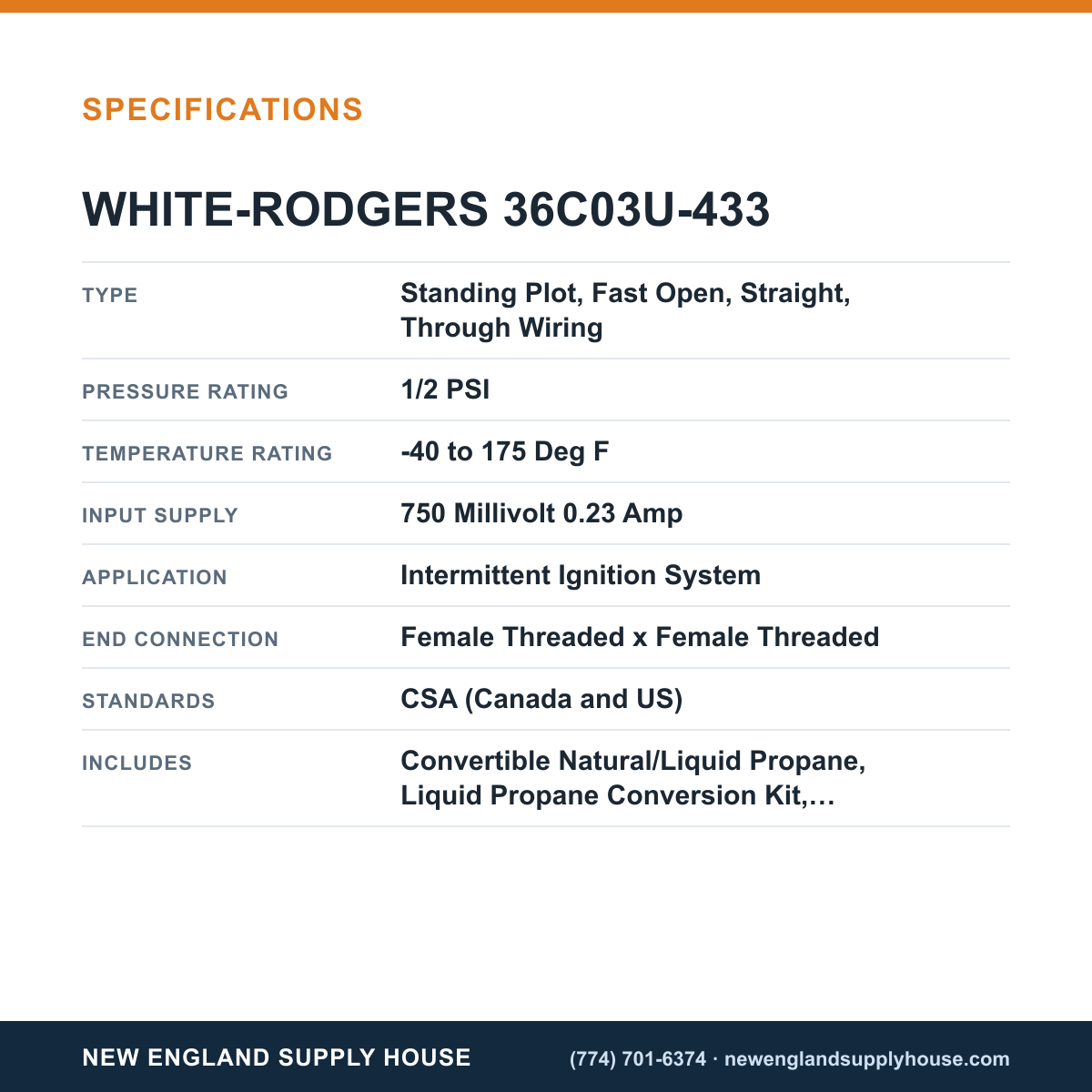

Key features and specs include CSA compliance, a wide operating temperature range from -40 to 175 Deg F, and a pressure rating of 1/2 PSI, making it suitable for many residential and commercial gas applications.

• Convertible Natural/Liquid Propane with included Liquid Propane Conversion Kit
• End connections: Female Threaded x Female Threaded, with Pilot Gas Connection 1/4 Inch Compression Fitting
• Input supply rating: 750 millivolt, 0.23 Amp; Temperature range -40 to 175 Deg F
• Capacity: 280000 BTU/Hour (Natural Gas), 453600 BTU/Hour (Liquid Propane)
• Pressure tap connection 1/8 Inch Threaded; Regulator setting 3.5 Inch; Adjustment range 2.5–5 Inch
• Inclusions: Line Interrupter, Reducer Bushing Kit, Inlet Pressure Tap, Side Tap
• Overall dimensions: 2.875 W x 3.375 D x 5.169 H
• CSA compliant; suitable for Intermittent Ignition System in CSA-certified environments
