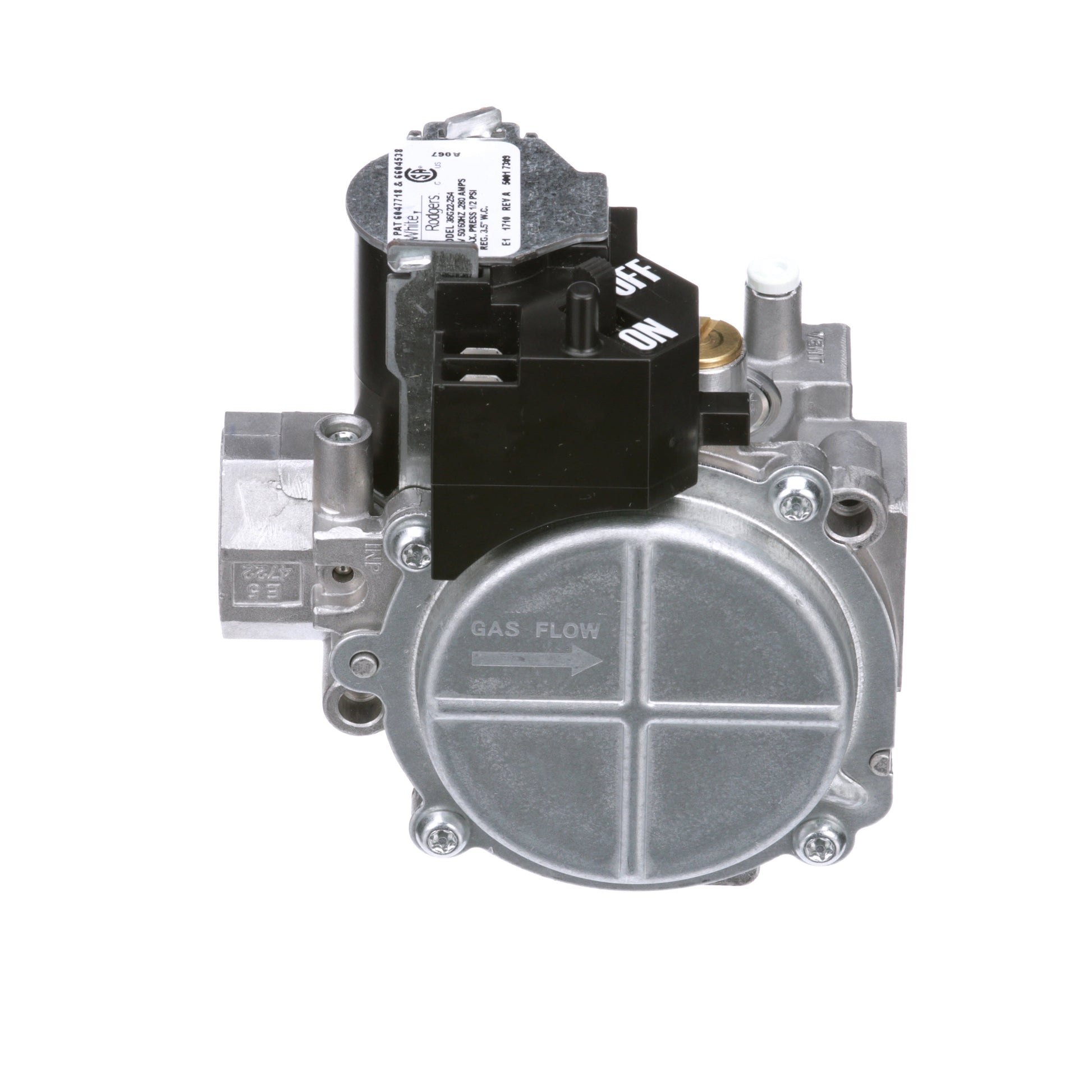

White-Rodgers 36G22-254 Combination Gas Valve

White-Rodgers 36G22-254 Combination Gas Valve is a robust, 1-Stage, fast-open valve designed for electronic ignition systems. The unit supports convertible natural gas and liquid propane operation and features through wiring with female threaded end connections for easy integration.

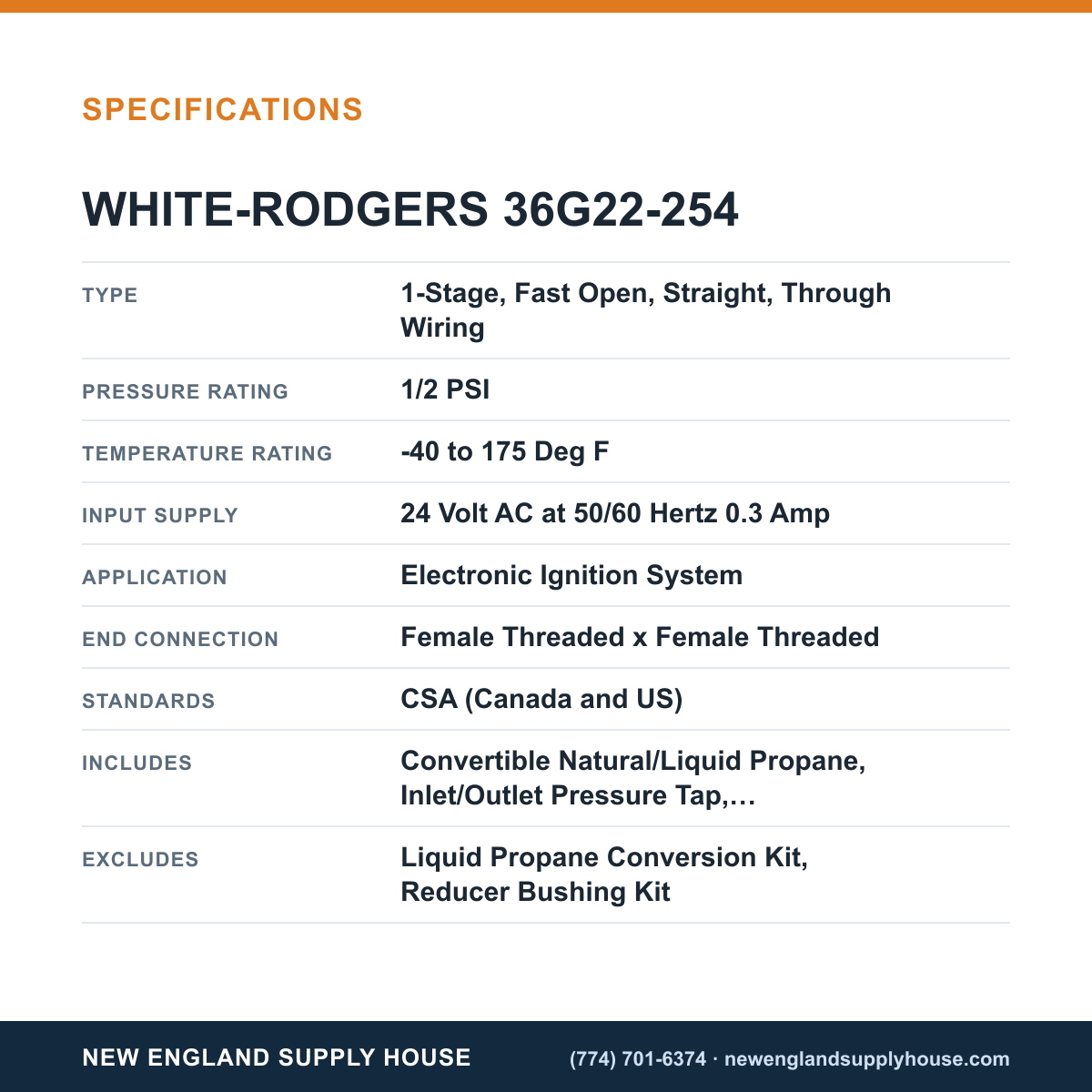

With a nominal size of 1/2 inch and 24V AC control (50/60 Hz, 0.3 A), this valve is built for reliable HVAC performance in a CSA-certified system. It handles pressures up to 1/2 psi and operates across -40 to 175°F. The valve offers a regulator setting of 3.5 inches and an adjustable range tuned for natural gas (2.5–5 in) or liquid propane (7–12 in). It delivers capacity of 140,000 BTU/hr for natural gas and 226,800 BTU/hr for LP gas, and includes inlet/outlet pressure tap, filter screen, and a 1/4 inch pilot gas connection.

• Convertible between Natural Gas and Liquid Propane (kit not included)
• Nominal 1/2 inch end connections (female threaded x female threaded)
• 24V AC control, 0.3 A, Type 1-Stage, Fast Open
• Inlet/Outlet pressure tap and 1/8 inch pressure tap
• Pilot gas connection 1/4 inch compression
• Capacities: 140,000 BTU/hr natural gas; 226,800 BTU/hr LP gas
• compliant
