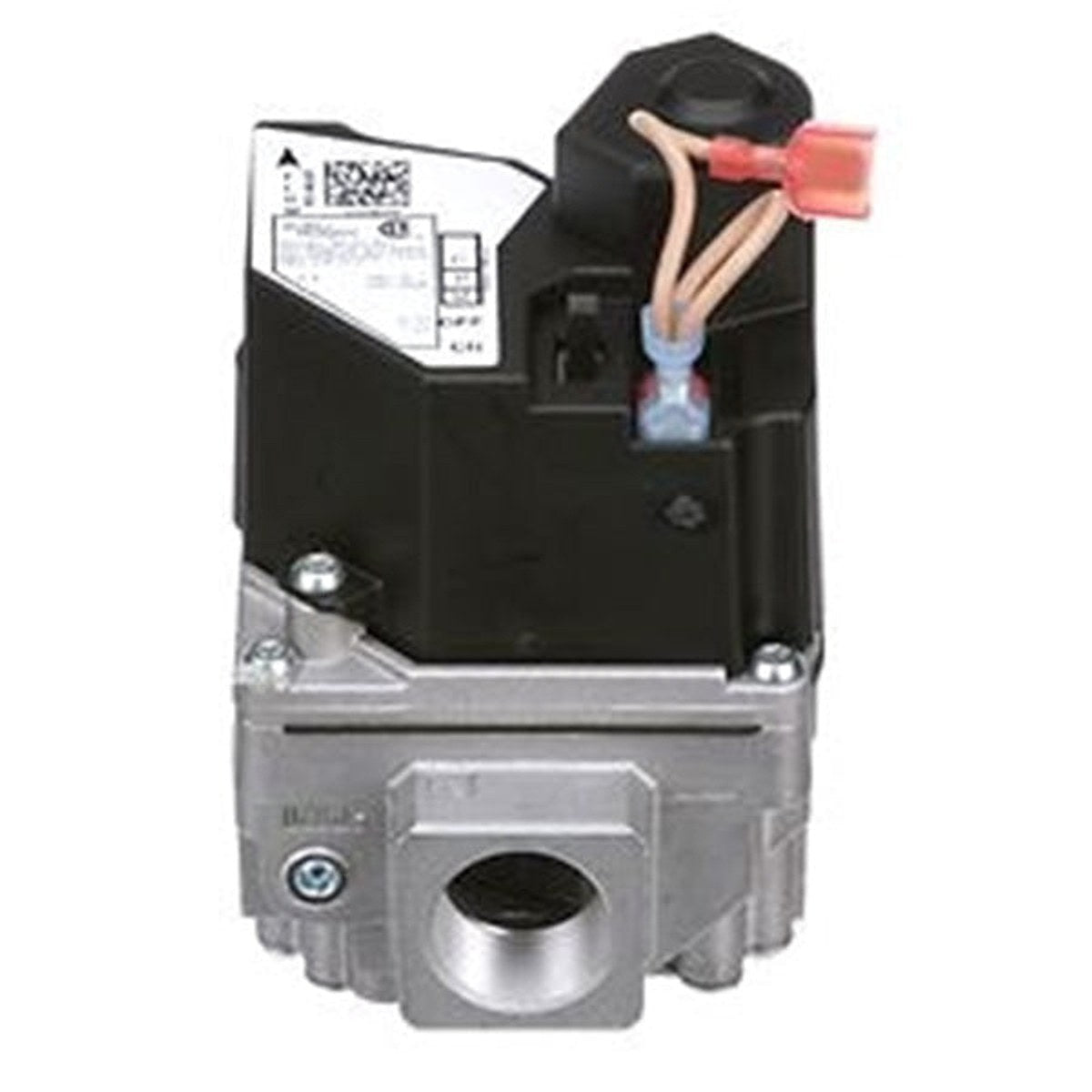

White-Rodgers 36H64-463 Gas Valve

White-Rodgers 36H64-463 Gas Valve is a dependable, Universal 2-Stage valve with Fast Open designed for precise control in gas appliances. This 3/4 inch nominal valve supports both natural gas and liquid propane and is compatible with electronic ignition systems for reliable startup.

Engineered for demanding climates, it features a -40 to 175 Deg F temperature range and a 1/2 psi pressure rating. The valve uses female threaded connections on both ends and includes a range of installation accessories, making it ready to integrate into CSA-standard systems for North American residential and commercial applications. Capacity handles up to 3,000,000 BTU/hr of natural gas or 486,000 BTU/hr of LP gas, with a pilot and pressure tap included to simplify setup.

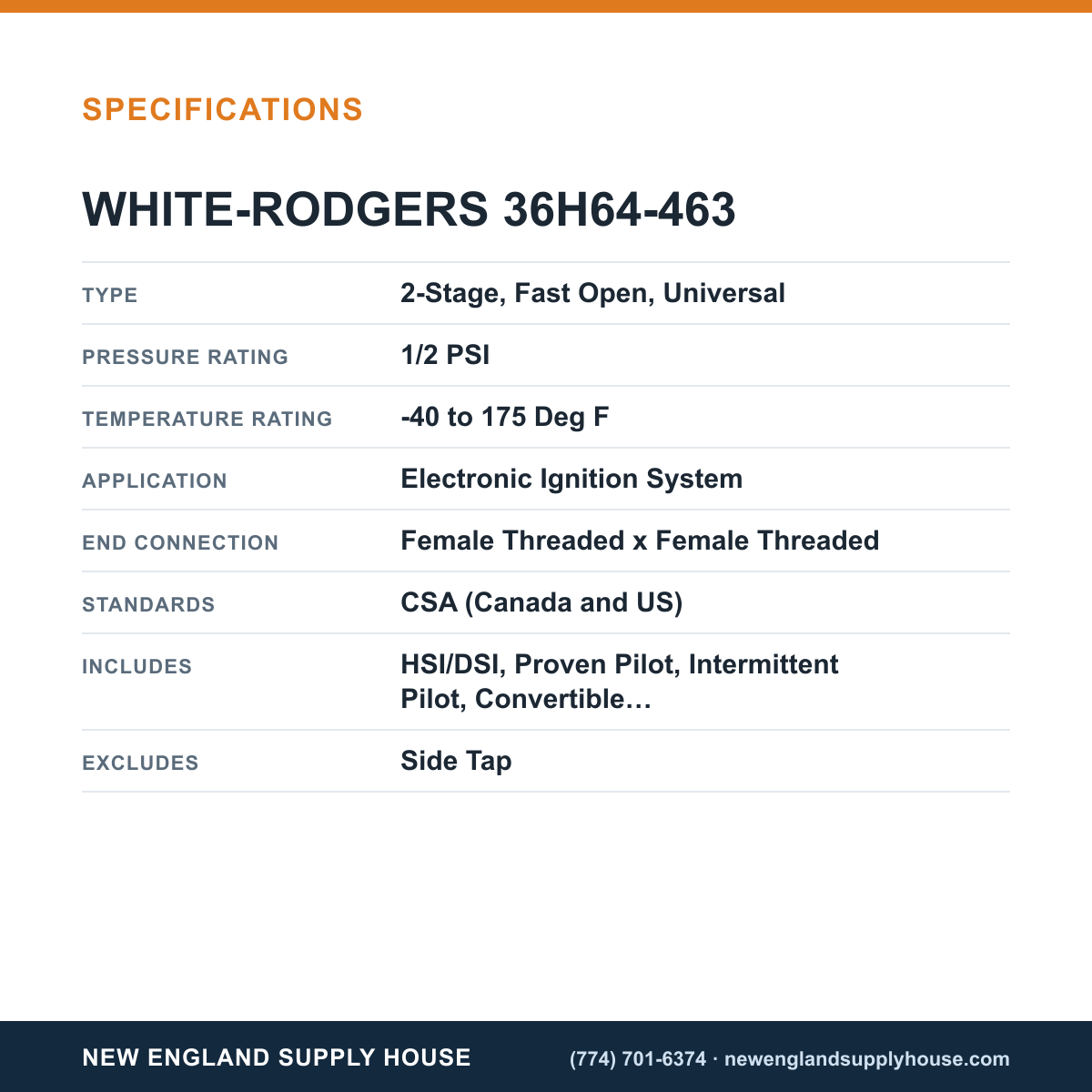

• Type: 2-Stage, Fast Open, Universal
• Nominal Size: 3/4 Inch
• Connections: Female Threaded x Female Threaded
• Temperature Range: -40 to 175 Deg F
• Pressure Rating: 1/2 Psi
• Fuel Type: Natural Gas; Liquid Propane
• Capacity: 3,000,000 BTU/hr (Natural Gas); 486,000 BTU/hr (LP)
• Inclusions: HSI/DSI, Proven Pilot, Intermittent Pilot, Convertible Natural/LP Gas Kit, Reducer Bushing Kit, Pressure Tap
• Applications: Electronic Ignition System; CSA Standard
• Pilot & Pressure Tap: Pilot Gas Connection 1/4" Compression; Pressure Tap Connection 1/8" Threaded
• Overall Dimensions: ~3.26 in W x 5 in H
