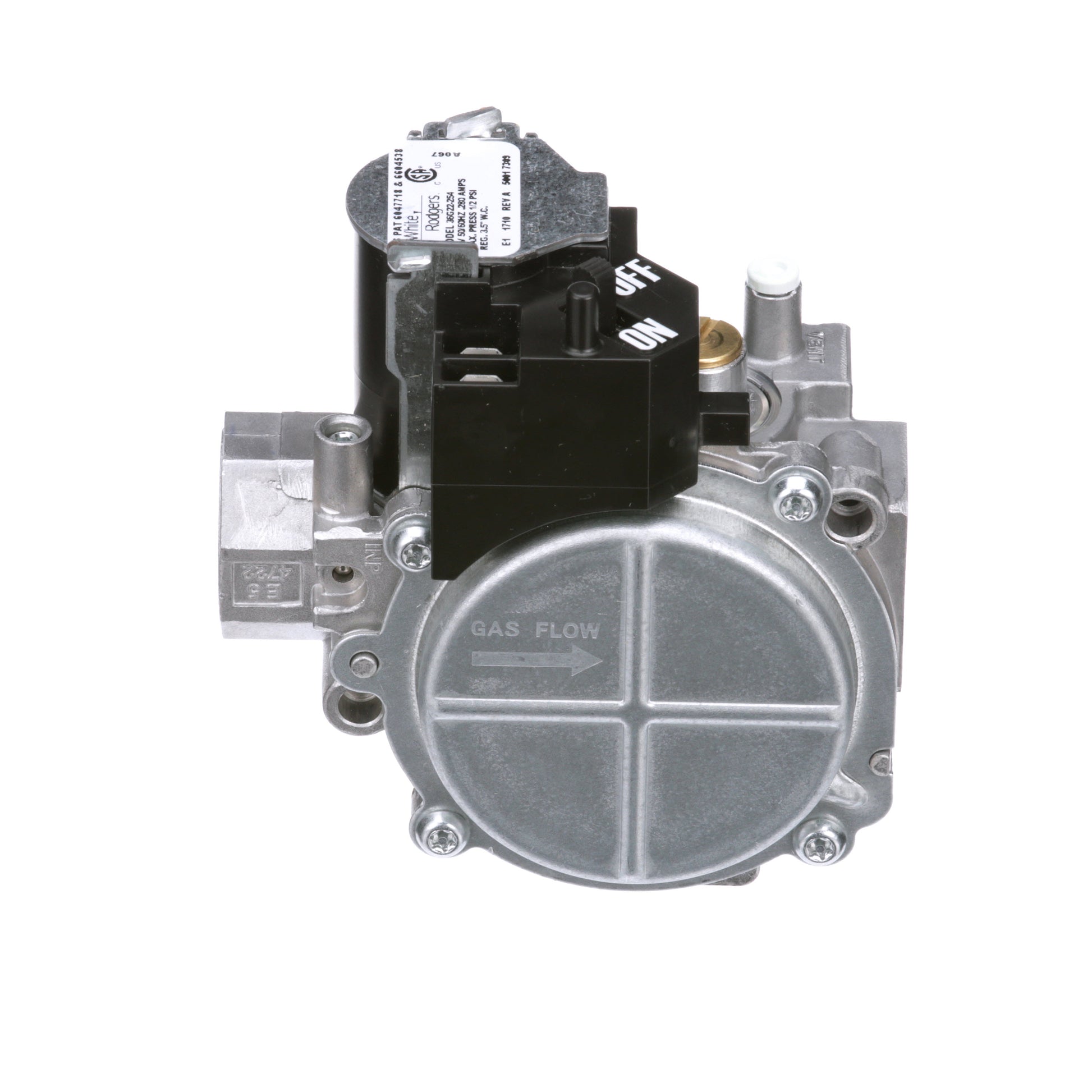

White-Rodgers 36J24-614 Electronic Ignition Gas Valve

The White-Rodgers 36J24-614 Electronic Ignition Gas Valve delivers reliable control for residential and light commercial systems. This 1/2 inch valve offers a slow-open, Type 1-stage operation compatible with natural gas or liquid propane.

Designed for Electronic Ignition Systems, it accepts 24 Volt AC supply at 50/60 Hz and operates within -40 to 175 °F. It supports a 1/2 PSI pressure rating and provides safe, efficient gas metering, with CSA certification for North American use.

• Nominal size: 1/2 inch; End connection: Female Threaded x Female Threaded
• Electrical: 24V AC, 0.3 A input
• Temperature range: -40 to 175 °F
• Pressure: 1/2 PSI maximum; regulator setting 3.5 inches; NAT range 2.5–5 in; LP 7–12 in
• Capacity: 140,000 BTU/hr Natural Gas; 226,800 BTU/hr Liquid Propane Gas
• Conversion: Convertible Natural/Propane; LP conversion kit included; reducer bushing kit; inlet/outlet pressure taps; filter screen
• Connections: 90-degree bottom outlet; pilot gas connection 1/4" compression; pressure tap 1/8" threaded
• Applications: Electronic Ignition System
• Standards: CSA (Canada and US)
• Dimensions: 4.693" W x 4.243" H
