Ushio 3000733 Ubiquity LED T8 Universal U Bend 24in 13W 5000K G13 Type A B U6 - 12 Pack

Ushio 3000733 Ubiquity LED T8 Universal U Bend 24in 13W 5000K G13 Type A B U6 - 12 Pack

$279.99 USD
$299.99 USD $279.99 USD
Sale Sold out
Shipping calculated at checkout.

3000733

View full details
  • Important Specs
  • 2200 Lumens
  • 13 Watts

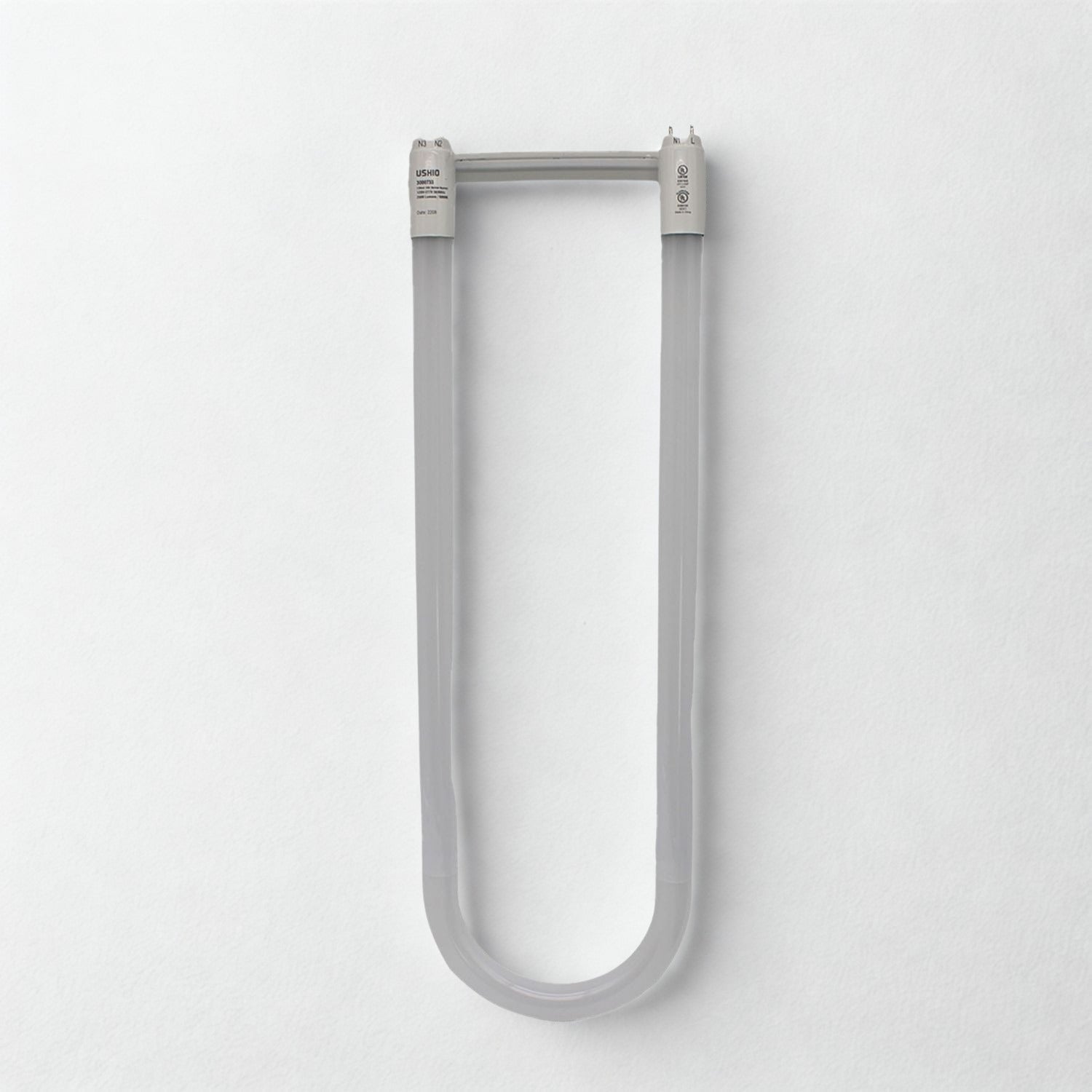

Ubiquity LED T8 Universal U-Bend 24in 13W 5000K 2000lm G13

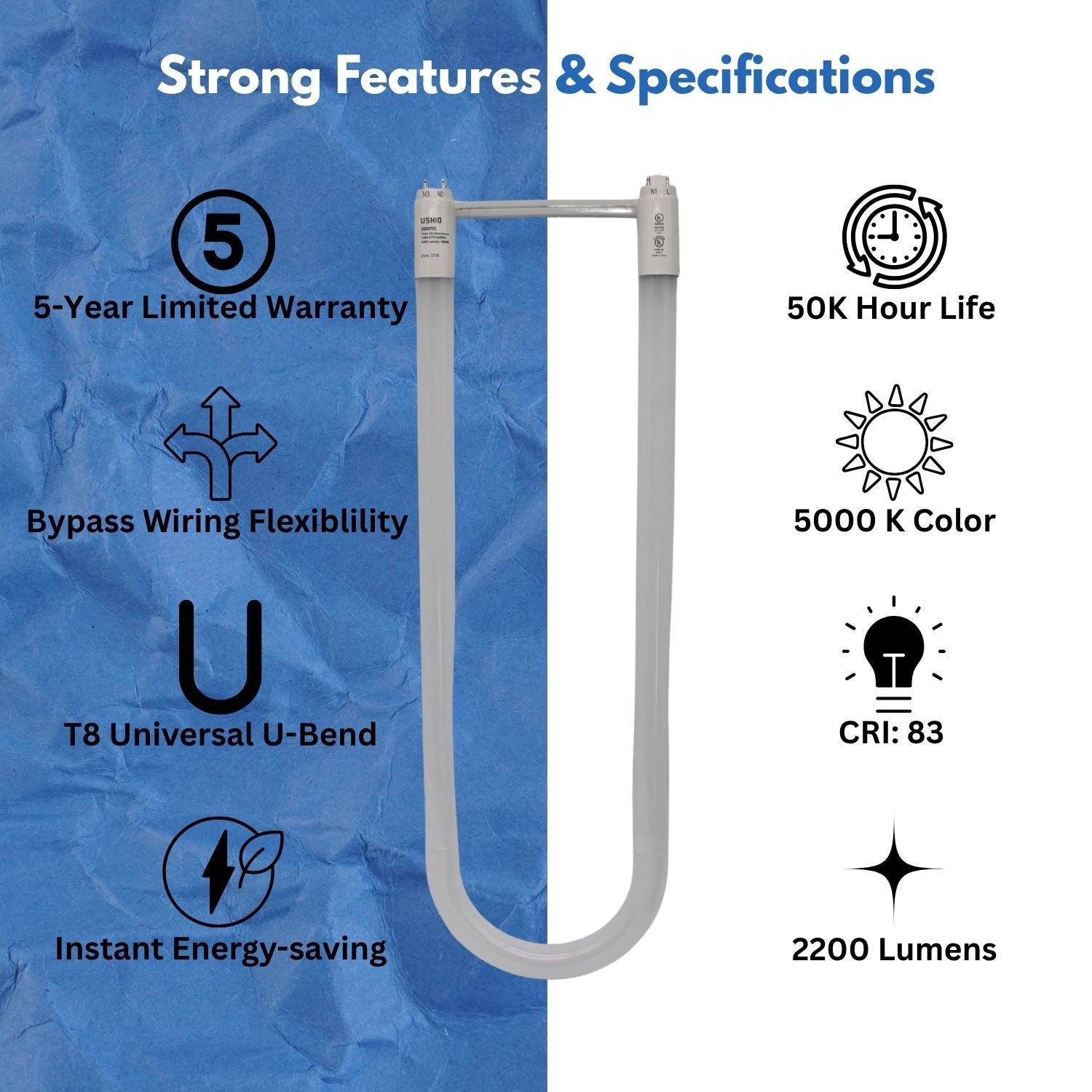

Key Benefits
Two Modes In One Lamp
Ballast compatible mode or ballast bypass mode for flexible installs
Bypass Wiring Flexibility
Works in single-ended or double-ended; shunted and non-shunted sockets
Performance
2200 lumens; 140 degree beam angle; CRI 83
Long Life
50,000 hour rated life; 5-year limited warranty
Specifications
Spec Value
Ordering Code 3000732
Lamp Type LED T8 Universal U-Bend
Base G13

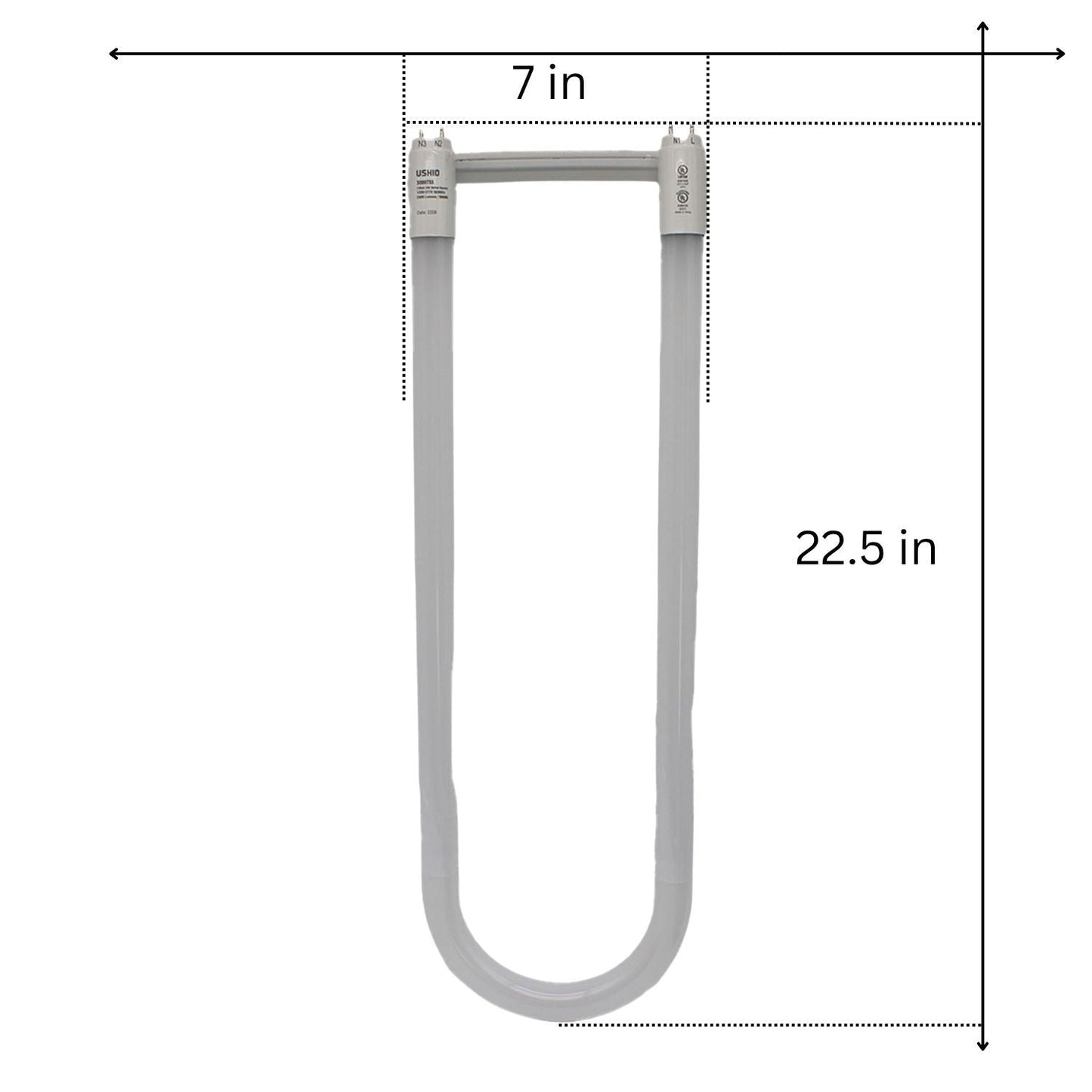

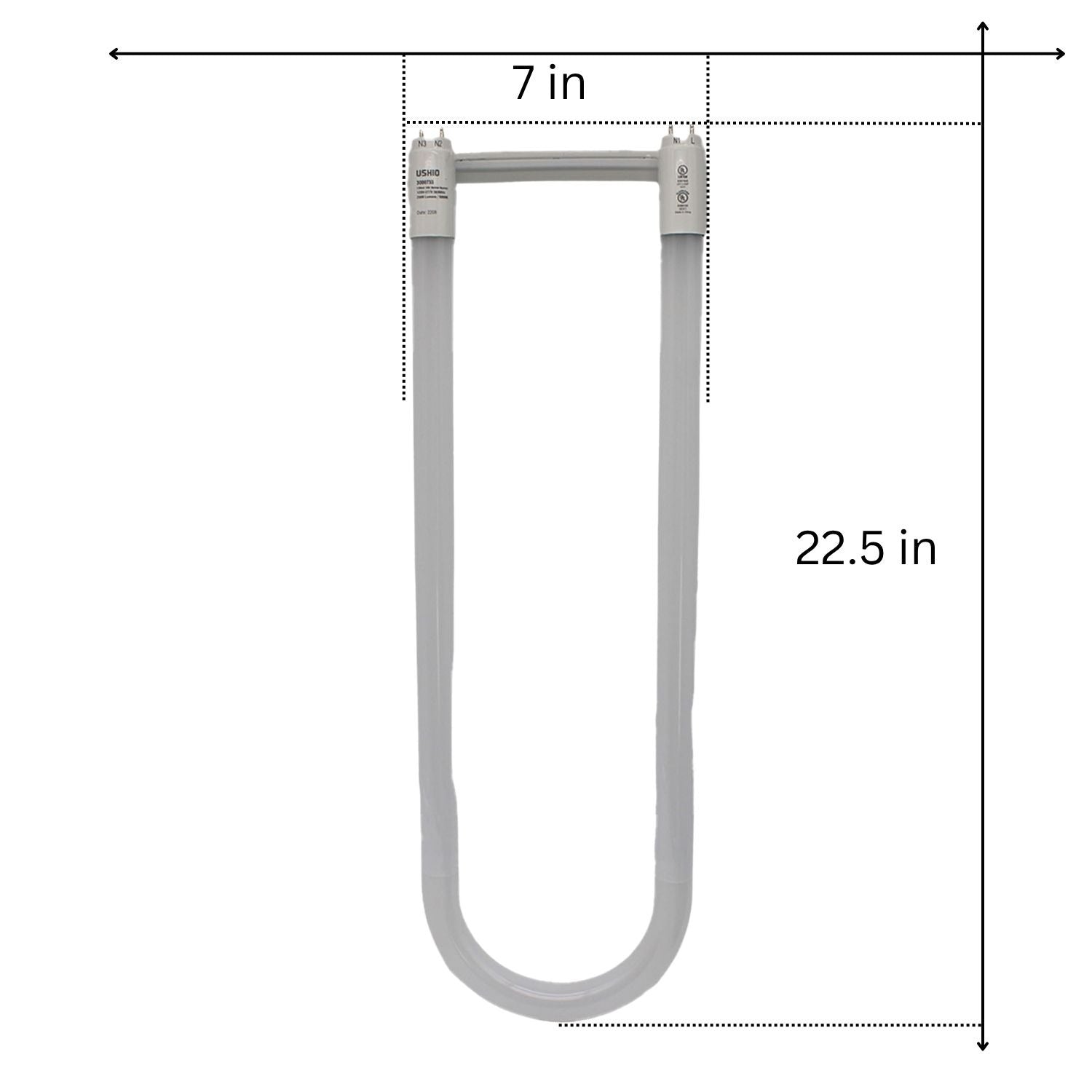

Length 24 inch
U-Bend U6
Wattage 13 W
Color Temperature 5000 K
Lumens 2000 lm
CRI 83
Beam Angle 140 degree
Rated Life 50,000 hours
Operation Modes Ballast Compatible; Bypass
Certifications UL; UL Classified; DLC 5.1
Warranty 5-year limited warranty
Works With
Applications
  • Fluorescent troffers

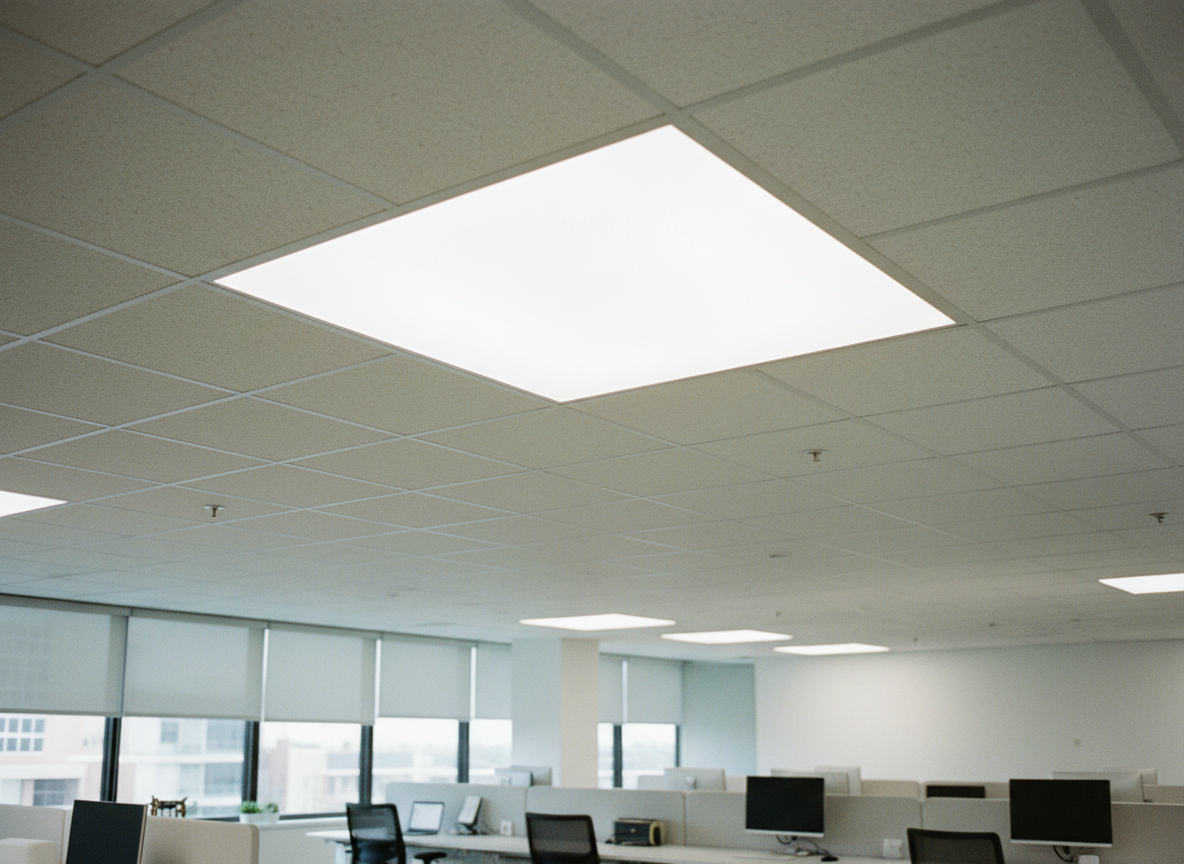

  • Office lighting
  • Warehouse facilities
  • Fluorescent low bay and high bay
More Applications

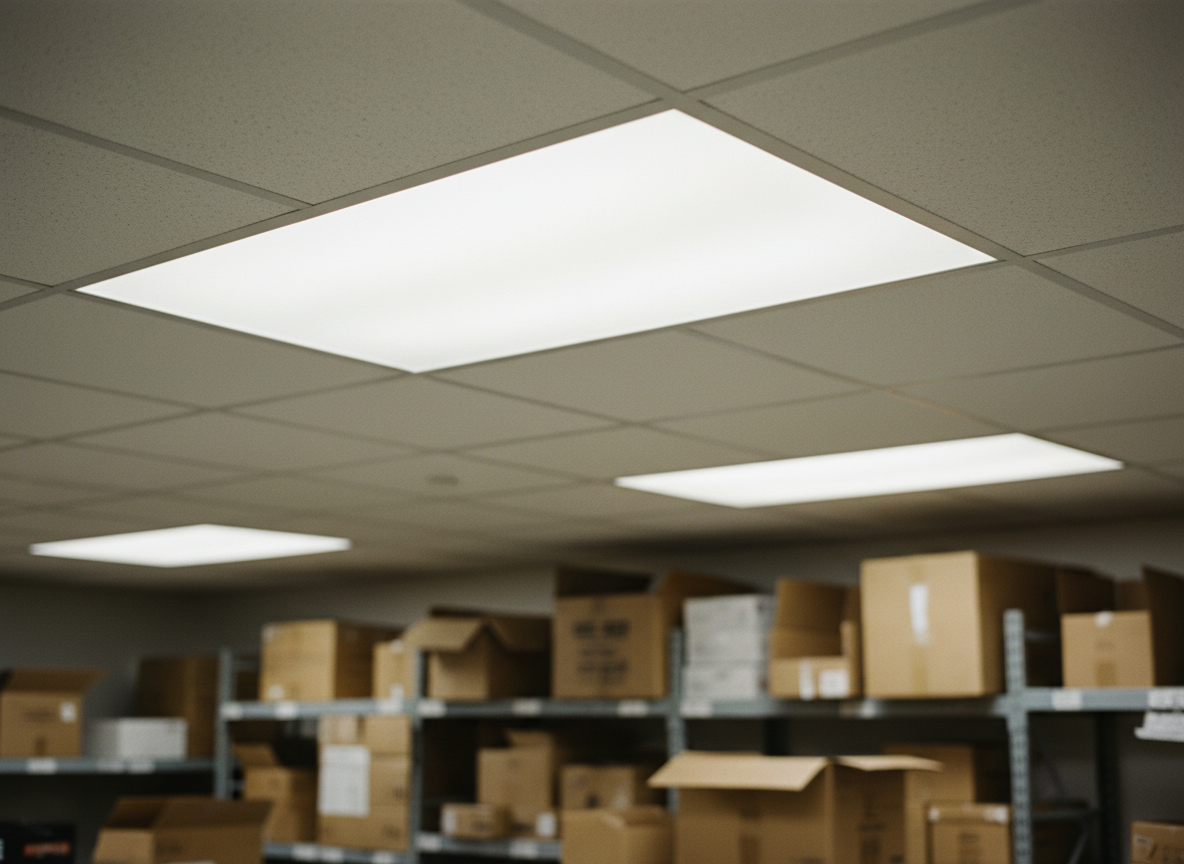

  • Retail lighting
  • Healthcare facilities

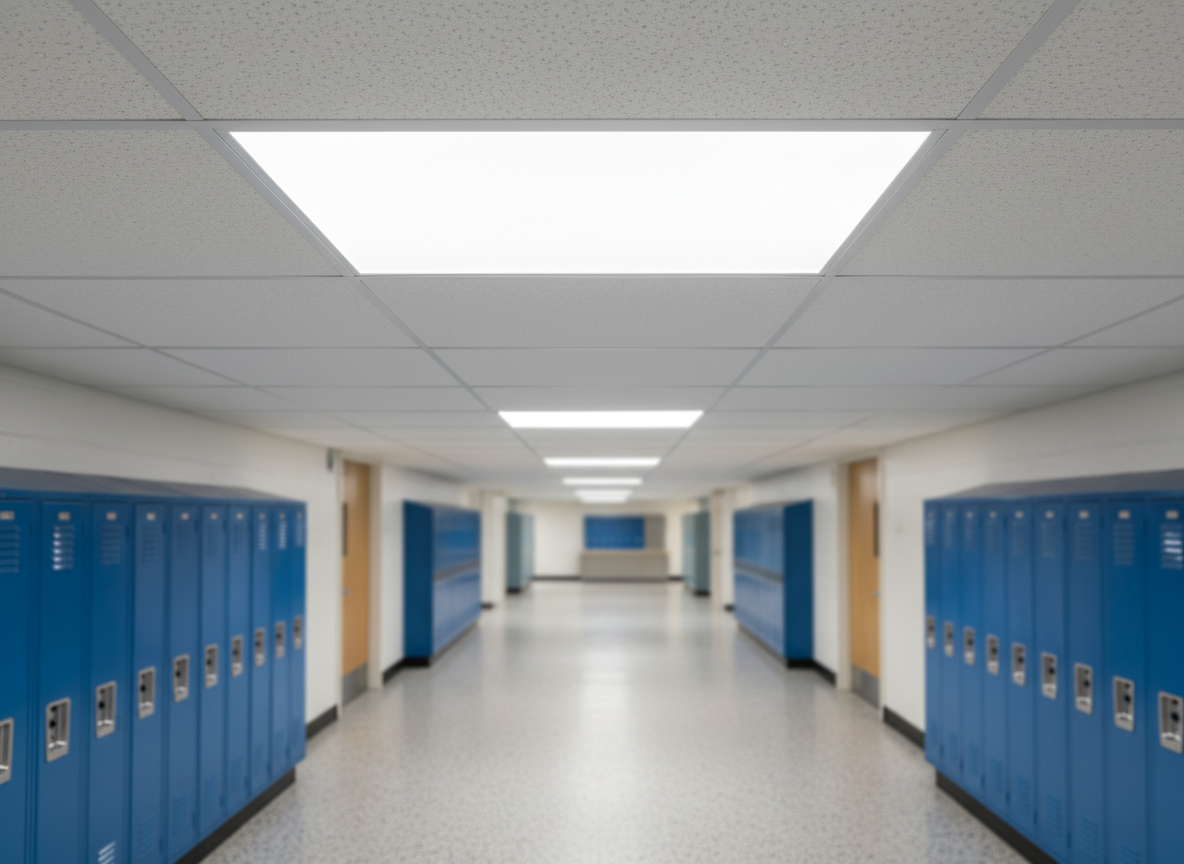

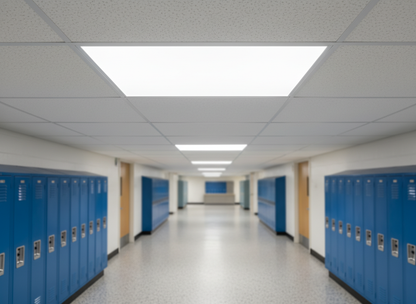

  • School lighting

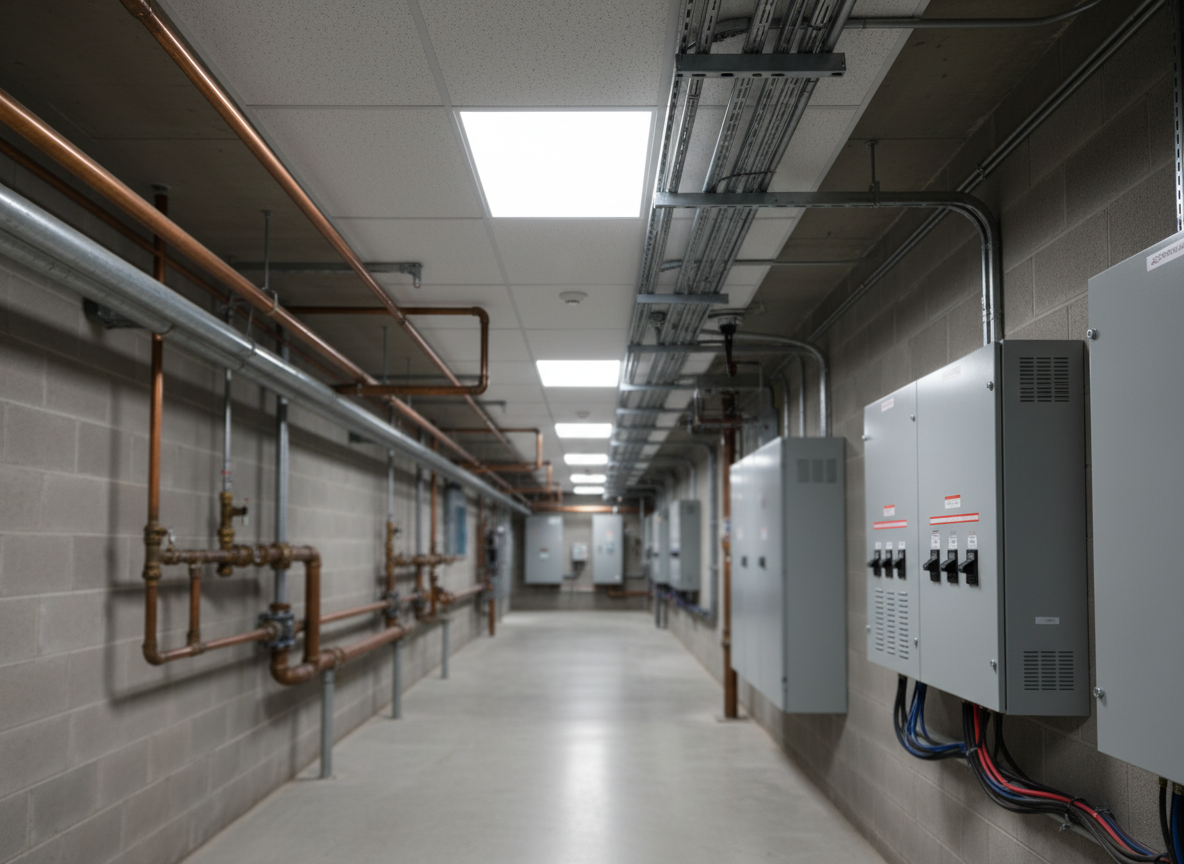

  • Industrial shop lighting
What's in the Box

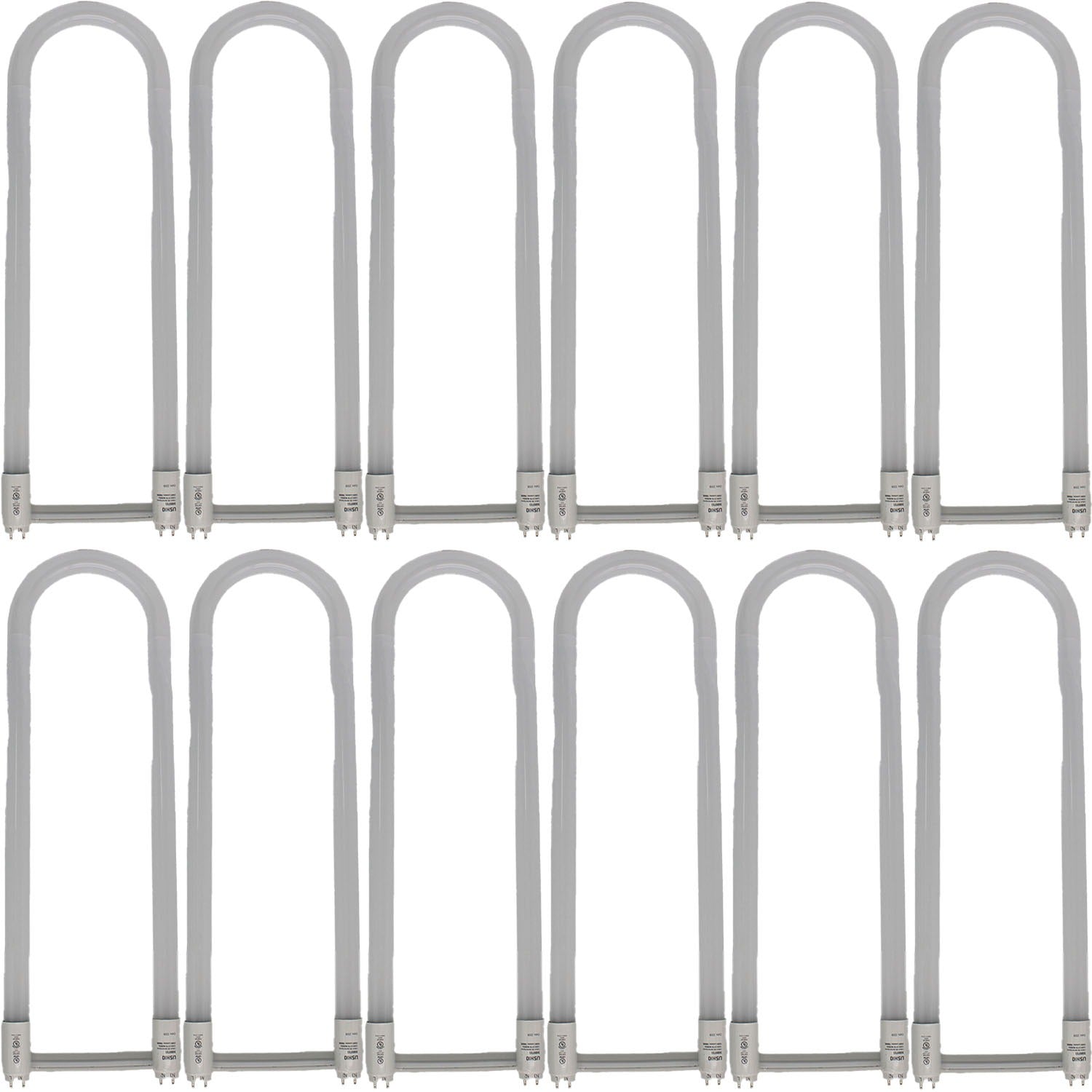

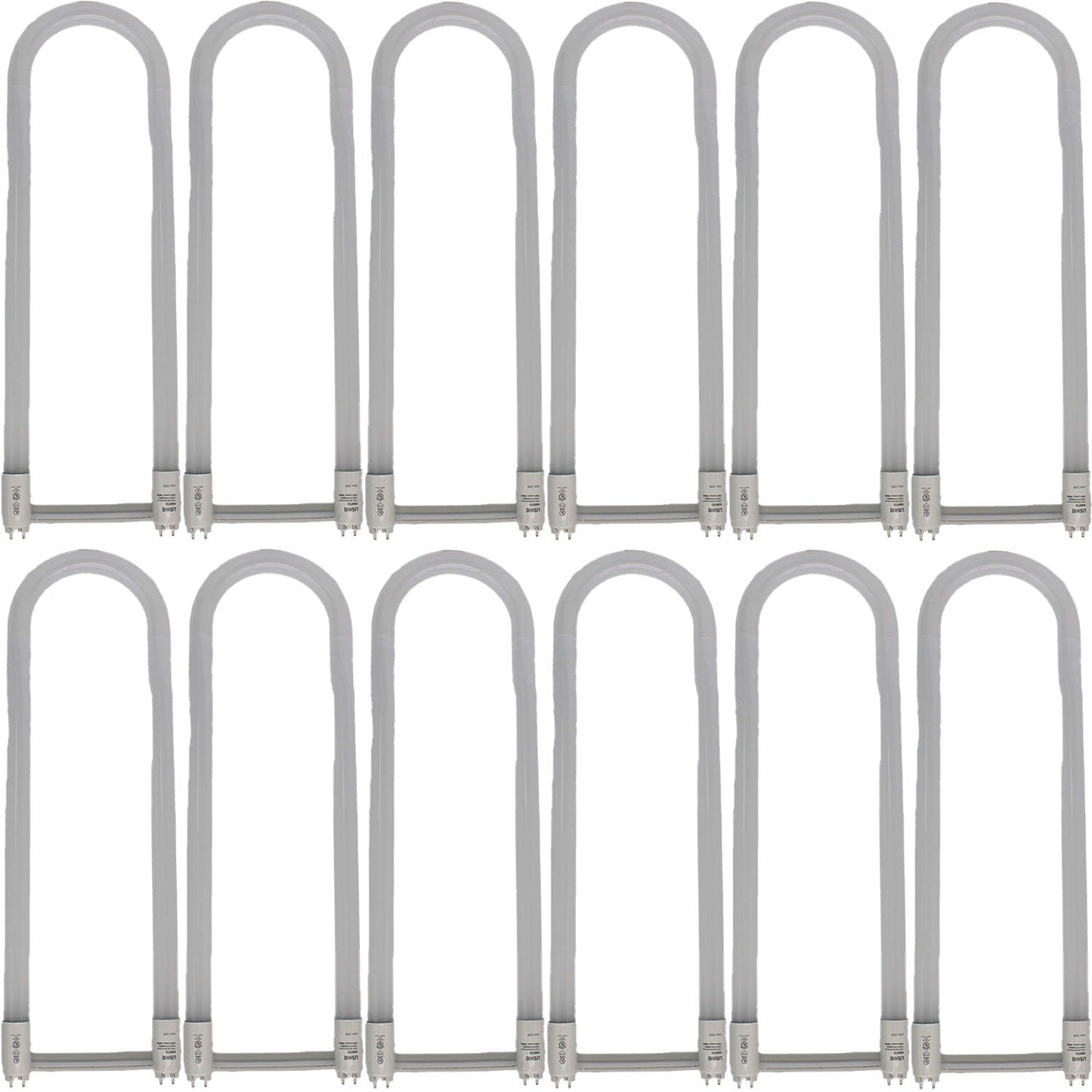

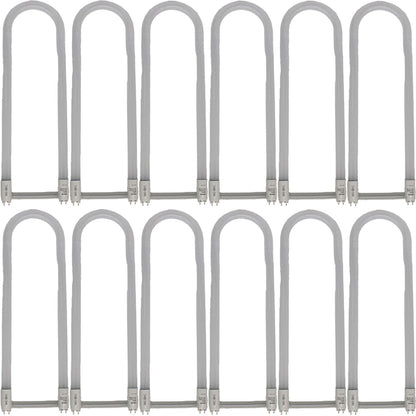

  • 12 x LED T8 Universal U-Bend lamp (24 inch; G13 base)
Why Choose This Lamp
  • Hybrid ballast compatible or direct-wire operation helps reduce SKUs
  • Instant energy-saving replacement for FB32T8/U6 fluorescent lamps
  • 50,000 hour rated life with 5-year limited warranty
Installation Notes
  • Direct replacement for 32W or energy saving T8 U6 lamps only
  • Not compatible with all ballasts; check compatibility before installation
  • Ballast bypass mode runs on 120 to 277 line voltage
  • Do not use with standard dimmers; see instructions
  • Do not install in a preheat luminaire
  • Use only in dry and damp locations; not intended for emergency exits or emergency lighting
  • Ambient fixture temperature -30 C to 56 C to ensure UL compliance
  • Lamp operating temperature -20 C to 45 C maximum
