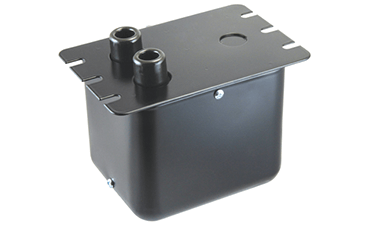

Allanson Transformers 2714-656 Gas Transformer

Allanson 2714-656 Gas Transformer delivers reliable high‑voltage performance for gas furnace systems. This transformer provides a 275 V AC primary and a 12,000 V AC secondary, tuned for 60 Hz operation to power ignition and control circuits in residential, commercial, and industrial environments.

Featuring a Mid Point Ground, ferromagnetic core and Rajah Connector terminals, it offers sturdy construction and precise voltage delivery. The two‑pole design ensures robust performance for demanding furnace applications, while its compact form fits standard installations.

Operational specifications include a storage temperature range of -40 to 80 °C, operating temperature range -30 to 40 °F, and humidity tolerance up to 90% RH. This gas transformer is ideal for gas furnace use across homes, offices, and industrial facilities, delivering dependable power for critical ignition and control circuits.

• Primary Voltage: 275 V AC
• Secondary Voltage: 12,000 V AC
• Frequency: 60 Hz
• Terminals: Rajah Connector
• Type: Mid Point Ground, Ferromagnetic
• Poles: 2
• Applications: Residential, Commercial, Industrial Gas Furnaces
• Load Air Gap: 1/8 to 3/16 Inch
