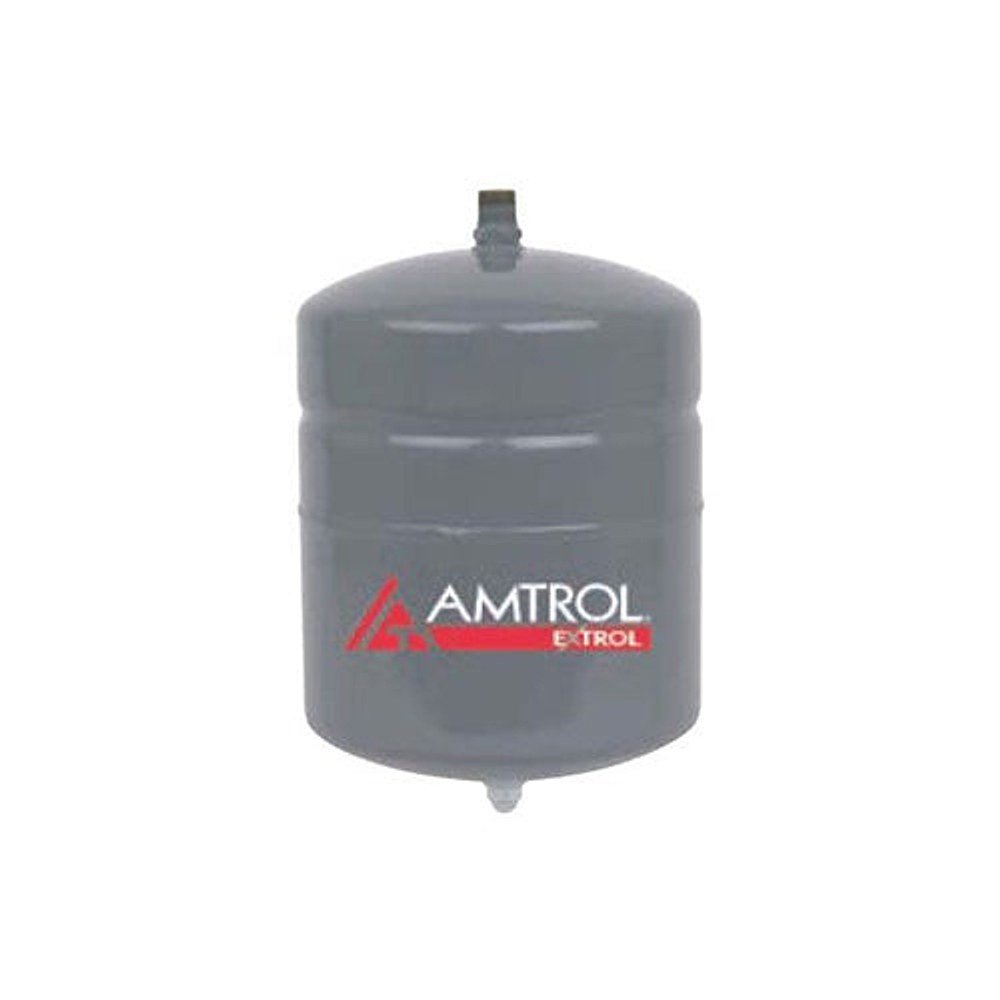

Amtrol 60 Hydronic Expansion Tank

The Amtrol 60 Hydronic Expansion Tank is an in-line hydronic expansion tank designed for closed-loop heating systems. With a 7.6-gallon capacity, 11-inch diameter and 23-inch height, and 1/2 inch male threaded connections, it simplifies installation in compact spaces.

Made from urethane top-coated steel, this tank withstands temperatures up to 240°F and supports up to 100 PSIG. It uses a heavy-duty butyl/EPDM diaphragm and arrives factory pre-charged at 12 PSIG, ready for standard hydronic setups. This lead-free tank complies with IAPMO R&T and ISO 9001 standards for reliability and safety.

Designed for closed, non-potable hydronic heating systems, the Amtrol 60 provides quality air management and long-term performance thanks to integrated features.

• In-Line design for straightforward plumbing
• 7.6 gal capacity with 11" D x 23" H dimensions
• 1/2" male thread inlet/outlet connections
• Temperature rating: 240°F; Pressure rating: 100 PSIG
• Diaphragm: heavy-duty butyl/EPDM
• Factory pre-charged air at 12 PSIG
• Inclusions: projection welded air valve, automatic air vent, air purger, steel system connection
• Lead-free construction; IAPMO R&T and ISO 9001 compliant
