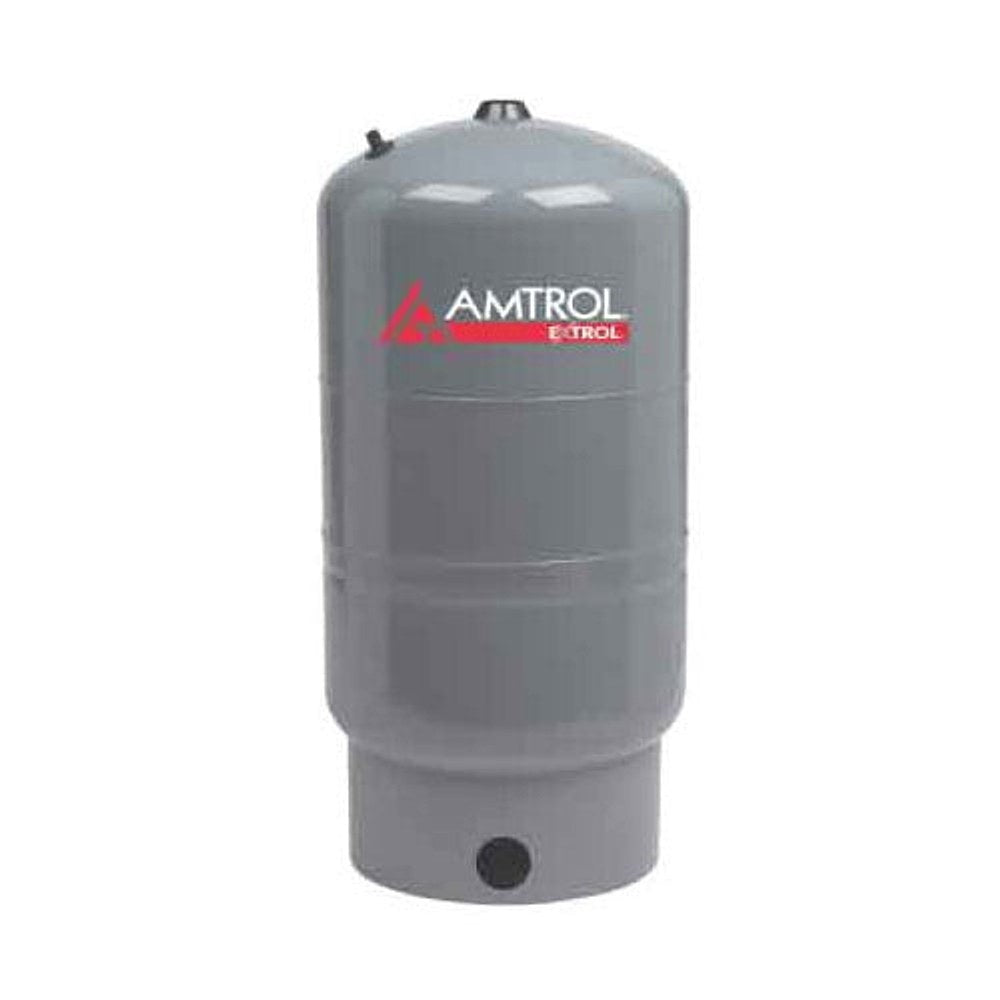

Amtrol SX60V Hydronic Expansion Tank

Amtrol SX60V Hydronic Expansion Tank is a stand-type vertical expansion reservoir engineered for closed, non-potable hydronic heating systems. With a 32-gallon capacity and a 15-inch diameter by 48-inch height, it delivers reliable pressure control in tight spaces. The inlet/outlet connections are 1 inch female threaded, compatible with standard piping.

Constructed from urethane top-coated steel, this tank is rated to 240°F and 100 PSIG, and uses a heavy-duty butyl/EPDM diaphragm for durable, long-lasting performance. Factory pre-charged air at 12 PSIG simplifies setup, while included features — projected welded air valve, automatic air vent, air purger, and steel system connection — ensure efficient air management and minimal maintenance.

Ideal for closed, non-potable hydronic heating systems, the SX60V combines robust construction with reliable standards and safety. It is lead-free and certified to IAPMO R&T and ISO 9001, offering confidence for both residential and light commercial installations. A 1-year warranty provides additional peace of mind.

• 32-gallon capacity
• Vertical stand-type design
• Inlet/outlet 1" female threaded connections
• Urethane top-coated steel construction
• Heavy-duty butyl/EPDM diaphragm
• Factory pre-charged air at 12 PSIG
• Rated 240°F and 100 PSIG
• Includes projected welded air valve, automatic air vent, air purger, steel system connection
• Lead-free; IAPMO R&T and ISO 9001 certified
• 1-year warranty
