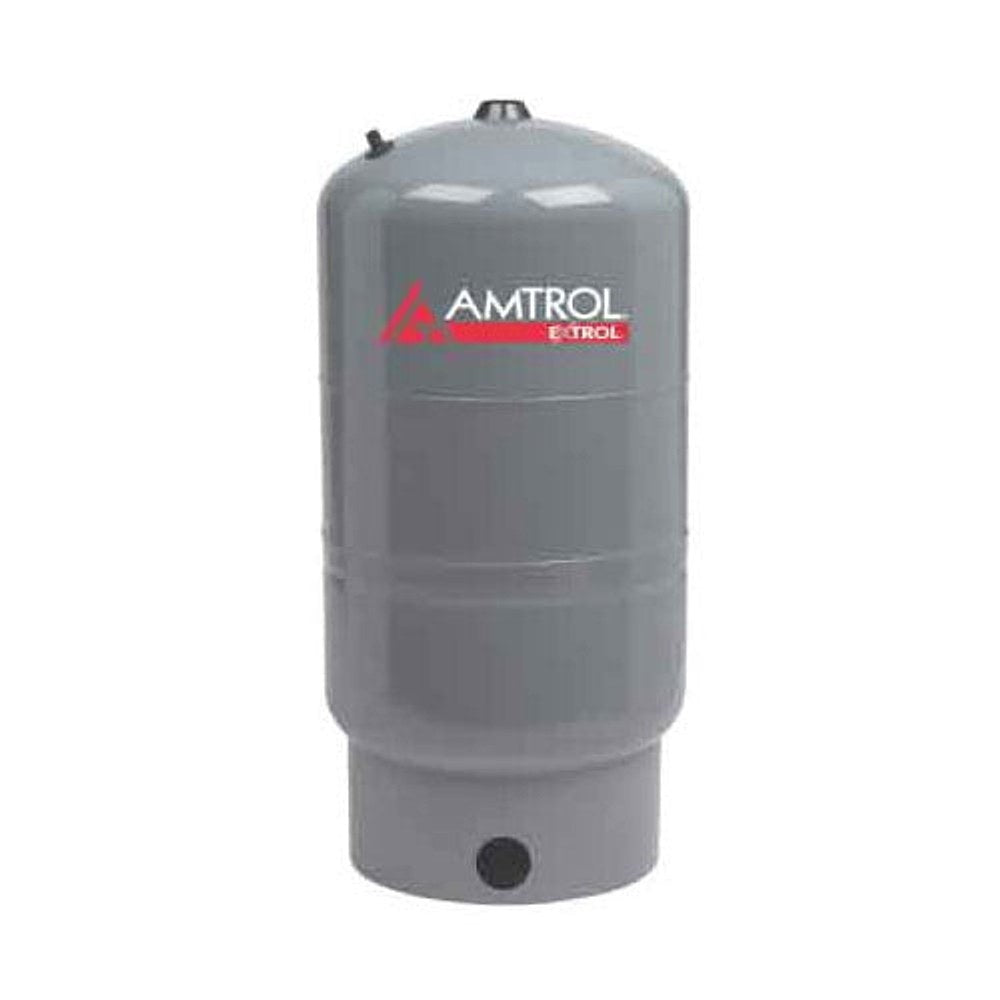

Amtrol SX90V Hydronic Expansion Tank

The Amtrol SX90V Hydronic Expansion Tank is a vertical stand-type solution designed for reliable closed hydronic heating systems. This 44-gallon unit features a 22-inch diameter and 36-inch height, providing robust thermal expansion capacity for residential and light commercial installations. The tank uses a urethane top-coated steel shell and a heavy-duty Butyl/EPDM diaphragm rated up to 240°F and 100 PSIG.

Designed for a closed, non-potable hydronic heating system, this expansion tank ships factory pre-charged with air at 12 PSIG. It combines lead-free construction with calibrated air charge management to maintain system pressure and extend component life. Includes a projection welded air valve, automatic air vent, air purger, and steel system connection for simple, ready-to-install integration.

• Inlet/Outlet: 1-1/4" female threaded connections (both inlet and outlet).
• Diaphragm: Heavy-duty Butyl/EPDM; lead-free.
• Air charging: Factory pre-charged at 12 PSIG; includes air vent and air purger.
• Capacity & dimensions: 44 gallon capacity; 22" diameter x 36" height.
• Ratings: 100 PSIG and 240°F maximums; designed for closed, non-potable hydronic systems.
• Includes & standards: Projection Welded Air Valve, Automatic Air Vent, Air Purger, Steel System Connection; IAPMO R&T, ISO 9001; lead-free.
• Warranty: 1-year warranty.
