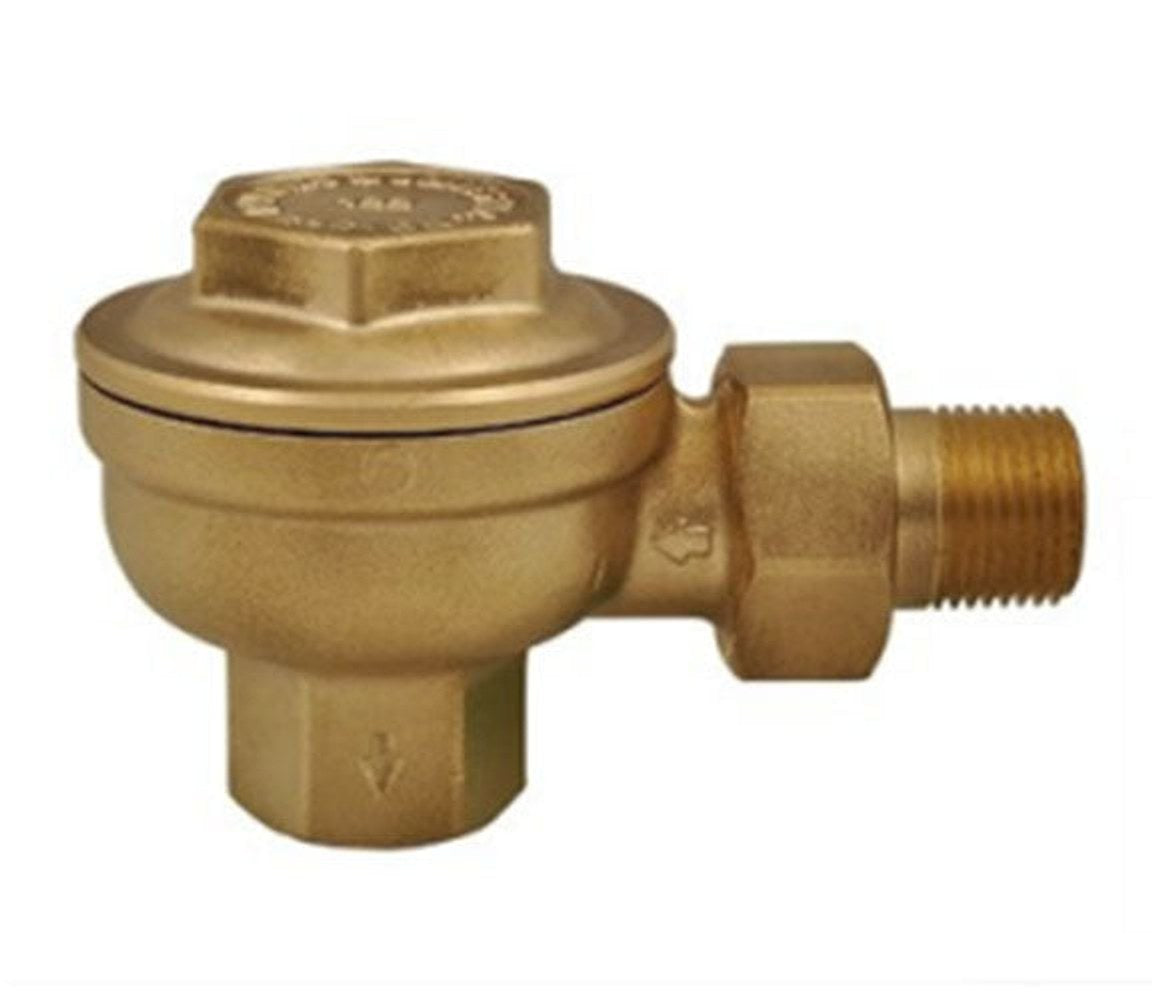

Barnes & Jones 134A-3/4 Steam Radiator Trap

The Barnes & Jones 134A-3/4 Steam Radiator Trap is a reliable thermostatic angle steam trap designed for low to moderate pressure heating. This 3/4 inch nominal trap delivers precise condensate control in steam radiators, helping maintain efficient operation and steady temperatures in your system.

Built for durability, it features a forged brass body or heavy-duty cast bronze construction, a Monel and phosphor bronze element, a stainless steel plug, and a non-asbestos fiber gasket for a tight, long-lasting seal. The trap is engineered for low-pressure heating systems and dependable performance under steady steam demand.

• Type: Angle, Thermostatic, suitable for Low and Moderate Pressure
• Nominal Size: 3/4 inch
• Material: Forged Brass or Heavy-Duty Cast Bronze
• Differential Pressure Rating: 152 PSIG
• Media Handled: Steam
• Inclusions: Monel and Phosphor Bronze Element
• Gasket: Non-Asbestos Fiber Gasket
• Plug: Stainless Steel Plug
• Application: Low-Pressure Heating System
• Dimensions: 2-9/16" W x 2-7/8" H
