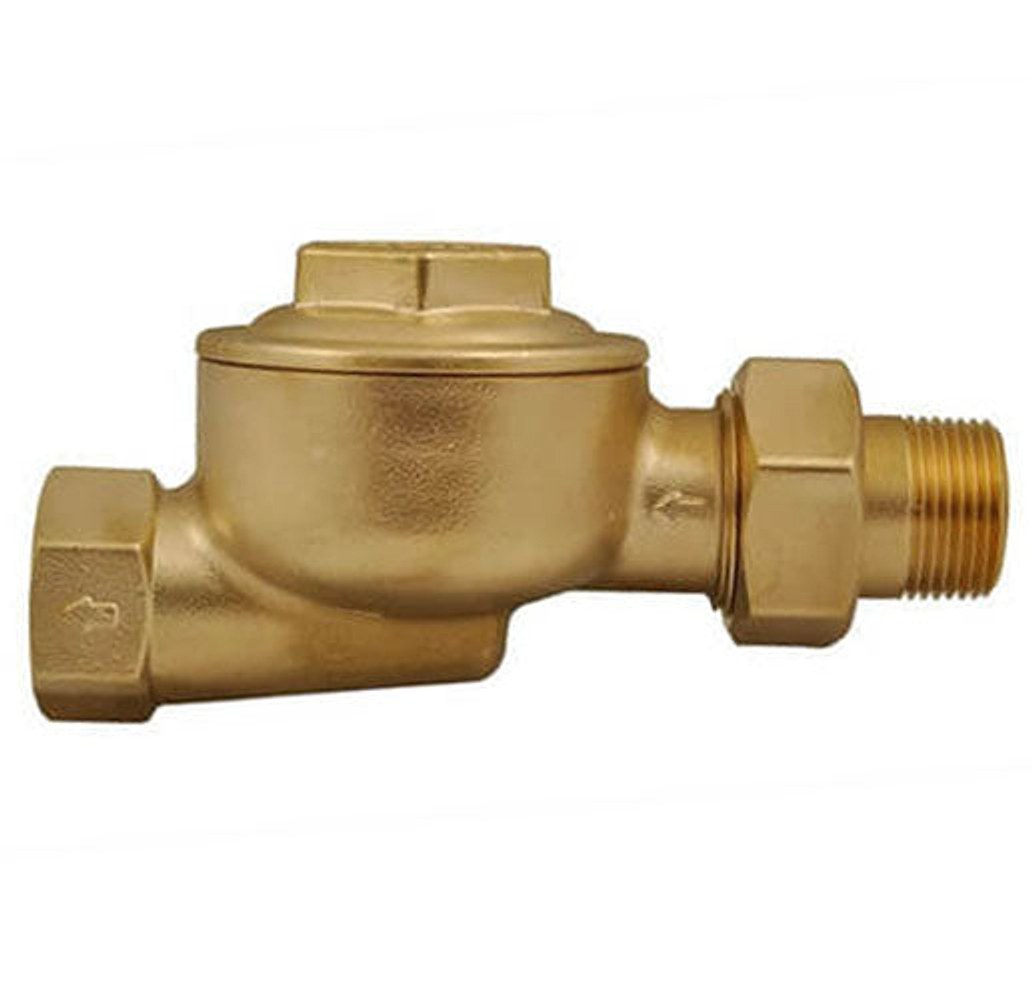

Barnes & Jones 134S-3/4 Steam Radiator Trap

The Barnes & Jones 134S-3/4 Steam Radiator Trap is a reliable thermostatic straight radiator trap designed for low and moderate pressure steam systems. With a 3/4 inch nominal size, it is built to last in forged brass or heavy-duty cast bronze, delivering durable performance in demanding heating environments. This premium trap features hardened internals for long service life, smooth, leak-free operation, and precise temperature-responsive control. It handles steam efficiently with a differential pressure rating of 152 PSIG and is ideal for low pressure heating applications.

• Nominal size: 3/4 inch
• Type: Straight, thermostatic, suitable for low and moderate pressure steam systems
• Materials: Forged brass or heavy-duty cast bronze construction for durability
• Differential pressure rating: 152 PSIG for reliable flow control
• Media handled: Steam
• Inclusions: Monel and Phosphor Bronze element; Non-asbestos fiber gasket; Stainless steel plug
• Application: Optimized for low pressure heating systems in residential and commercial settings
• Dimensions: 2-9/16" W x 2-7/8" H
