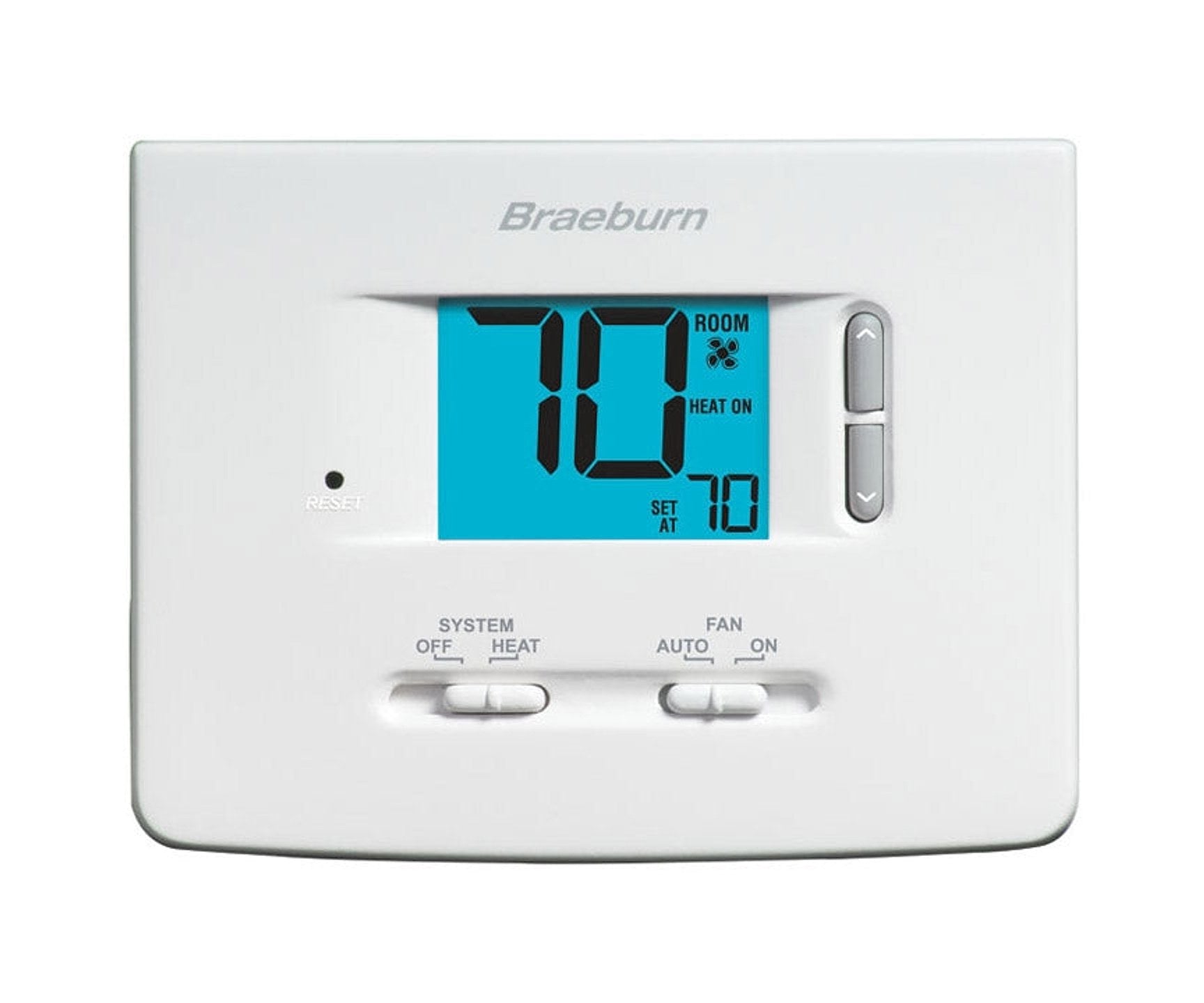

Braeburn 1025NC Thermostat

Discover the Braeburn 1025NC Thermostat, a compact digital non-programmable control designed for 1-Heat (Heat Pump), 1-Stage systems. Operating on 24V AC with a 2A current rating, this battery-powered unit runs on two AA alkaline batteries and offers front-access reset and an adjustable temperature limit for easy, reliable comfort from 45 to 90°F, with ±1°F accuracy. Designed for residential HVAC, it features non-volatile memory to retain settings during power interruptions and a straightforward interface for quick adjustments.

• Type: Digital non-programmable thermostat for 1-Heat (Heat Pump), 1-Stage systems
• Power & Current: 24V AC operation, 2A current rating
• Power Source: Battery-powered with two AA alkaline batteries
• Temperature Range & Accuracy: 45–90°F, ±1°F
• Reset & Limits: Front-access reset button, adjustable temperature limit
• Memory & Wiring: Non-volatile memory; terminal designations R, G, W1, V3, C
• Display & Environment: 2 in² display; operates in 5–95% humidity
• Dimensions: 4.72"W x 1.38"D x 3.62"H
