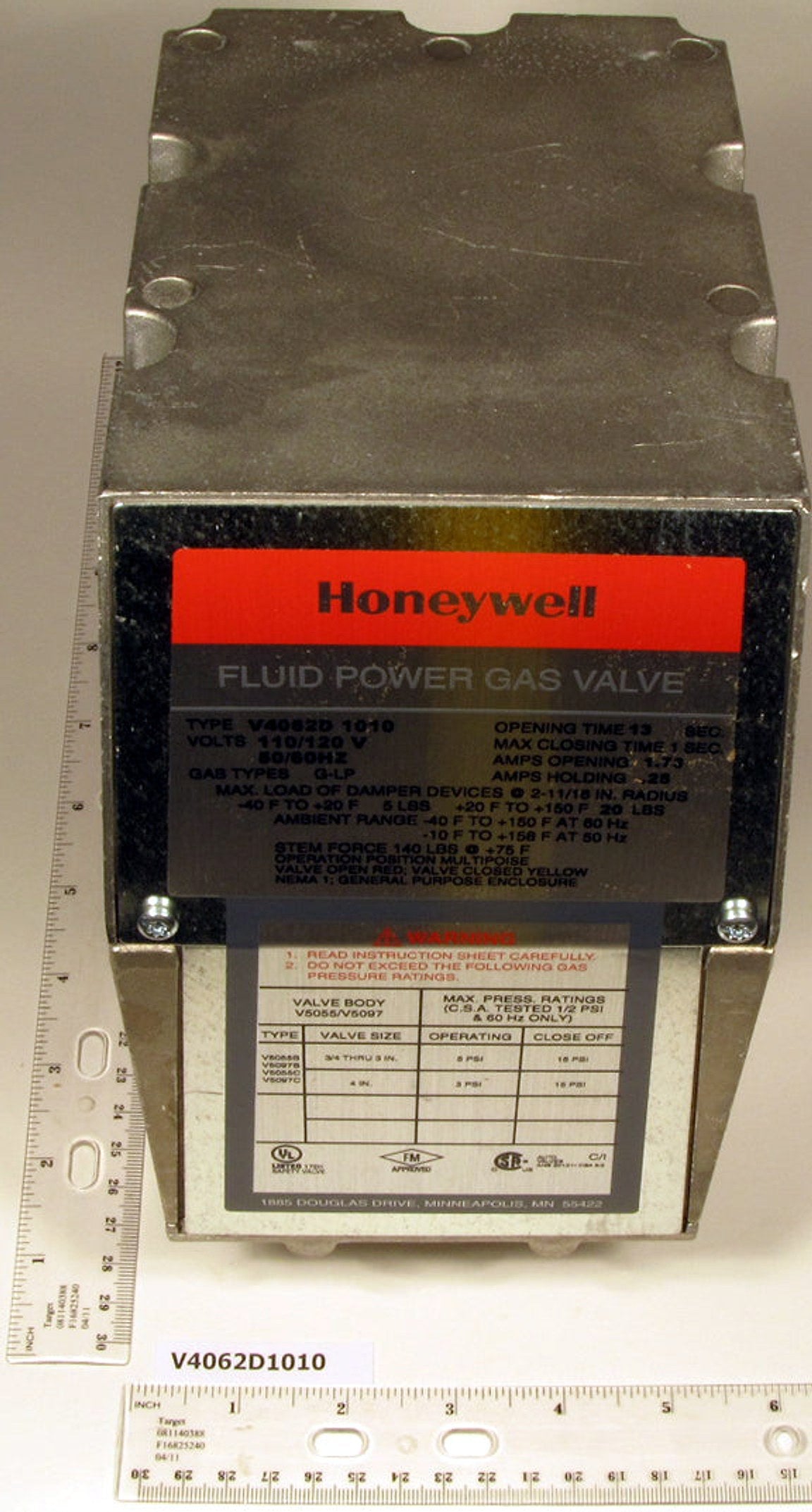

Honeywell Thermal Solutions FSG V4062D1010 Fluid Power Gas Valve Actuator

Fluid Power Gas Valve Actuator for industrial gas systems by Honeywell Thermal Solutions delivers precise control with a robust Hi-Lo-Off, standard low-pressure design. The FSG V4062D1010 operates on 120 V AC at 60 Hz, delivering 59.5 W for opening and 19 W for holding to reliably actuate gas valves and burners. Its die-cast aluminum body, NEMA 1/IP30 enclosure, and operating temperature range from -40 to 150°F ensure rugged performance in challenging environments.

Designed for dependable performance in gas control applications, this actuator offers a 52-degree rotation and a 13-second opening, with less than 1 second closing. It is UL and CSA approved for safety and compatibility with industrial gas valve systems.

• Type: Hi-Lo-Off, Standard, Low Pressure
• Voltage & Frequency: 120 VAC, 60 Hz
• Power: 59.5 W opening / 19 W holding
• Mechanical: 52° rotation
• Enclosure: NEMA 1, IP30; Die-cast aluminum
• Operating Temp: -40 to 150°F
• Applications: Industrial gas valve, gas burner
• Timing: 13-second opening, <1-second closing
• Safety & Compliance: UL, CSA
• Package: Includes damper shaft; excludes auxiliary switch
• Pressure: Maximum safe operating pressure 5 PSI
