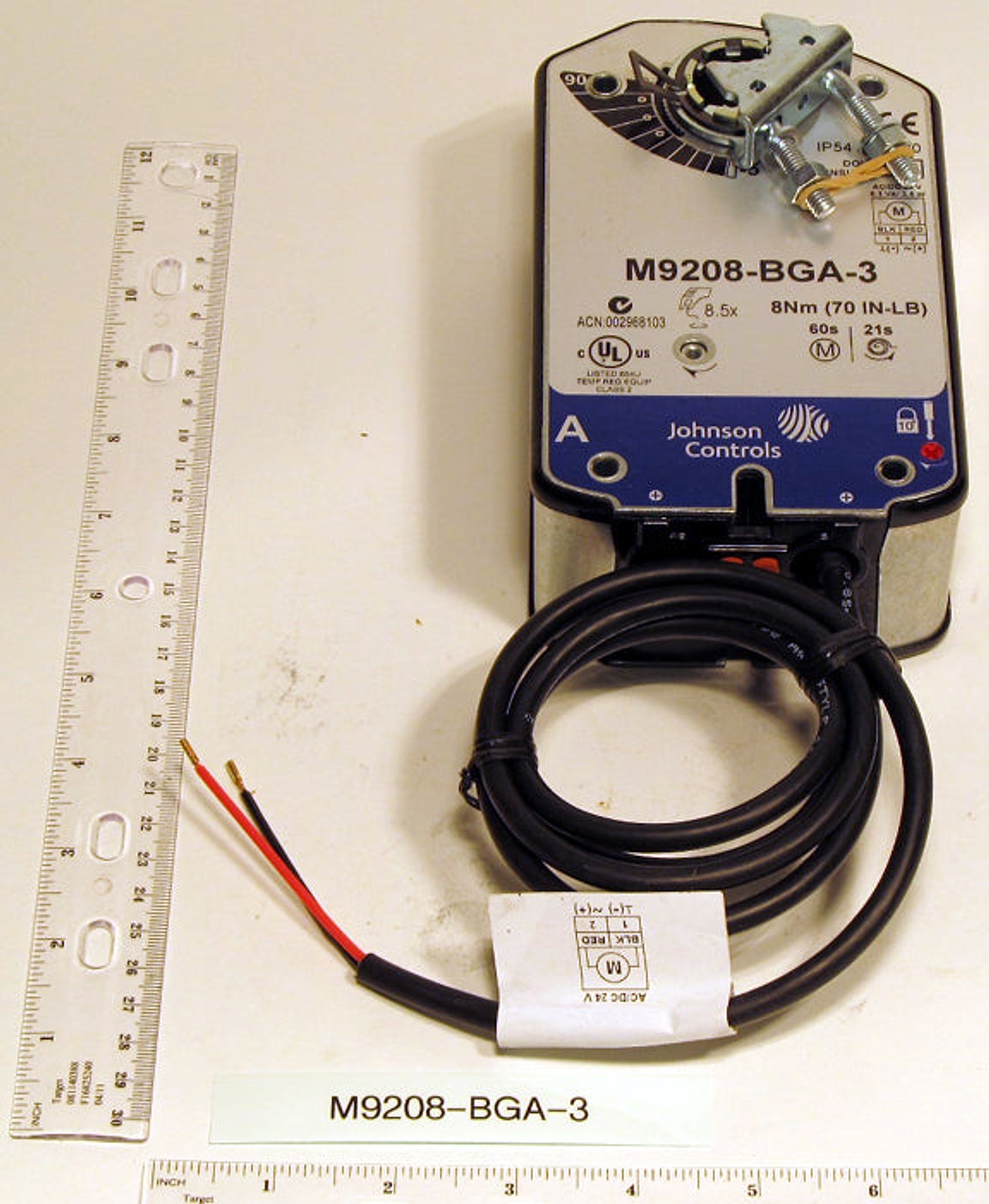

Johnson Controls M9208-BGA-3 Electric Actuator, 24V AC/DC, 70 lb-in

Johnson Controls M9208-BGA-3 Electric Actuator is a reliable on/off actuator designed for HVAC systems. With spring return and a 24-volt drive, it delivers quick, dependable positioning for dampers or valves. The rugged NEMA 2, IP54 enclosure protects internal electronics from dust and moisture, suitable for demanding environments. Operating at standard 50/60 Hz, it supports both 24V AC and 24V DC supply, making it a flexible choice for retrofits and new installations. Its compact 3.9 in W x 2.26 in D x 6.33 in H body and versatile shaft options support diverse damper geometries while delivering 70 in-lb of torque over a 95° rotation for precise end-of-travel control.

• Type: On/Off Electric Actuator with Spring Return, ideal for HVAC dampers and valves
• Voltage: 24V AC/DC (Maximum 24V AC or DC), compatible with standard control systems
• Power & Frequency: 50/60 Hz operation, 6.1 VA running / 1.2 VA holding (AC) or 3.5 W running / 0.5 W holding (DC)
• Torque & Travel: 70 in-lb torque, 95° rotation for precise positioning
• Limit Switch: SPDT configuration for reliable end-of-travel sensing
• Enclosure: NEMA 2, IP54 rated for dust and moisture protection
• Shaft Options: Round 5/16–5/8 in or Square 1/4–1/2 in
• Connection: 3/8 in Flexible Metal Conduit
• Applications & Approvals: HVAC System with UL and CE approvals
