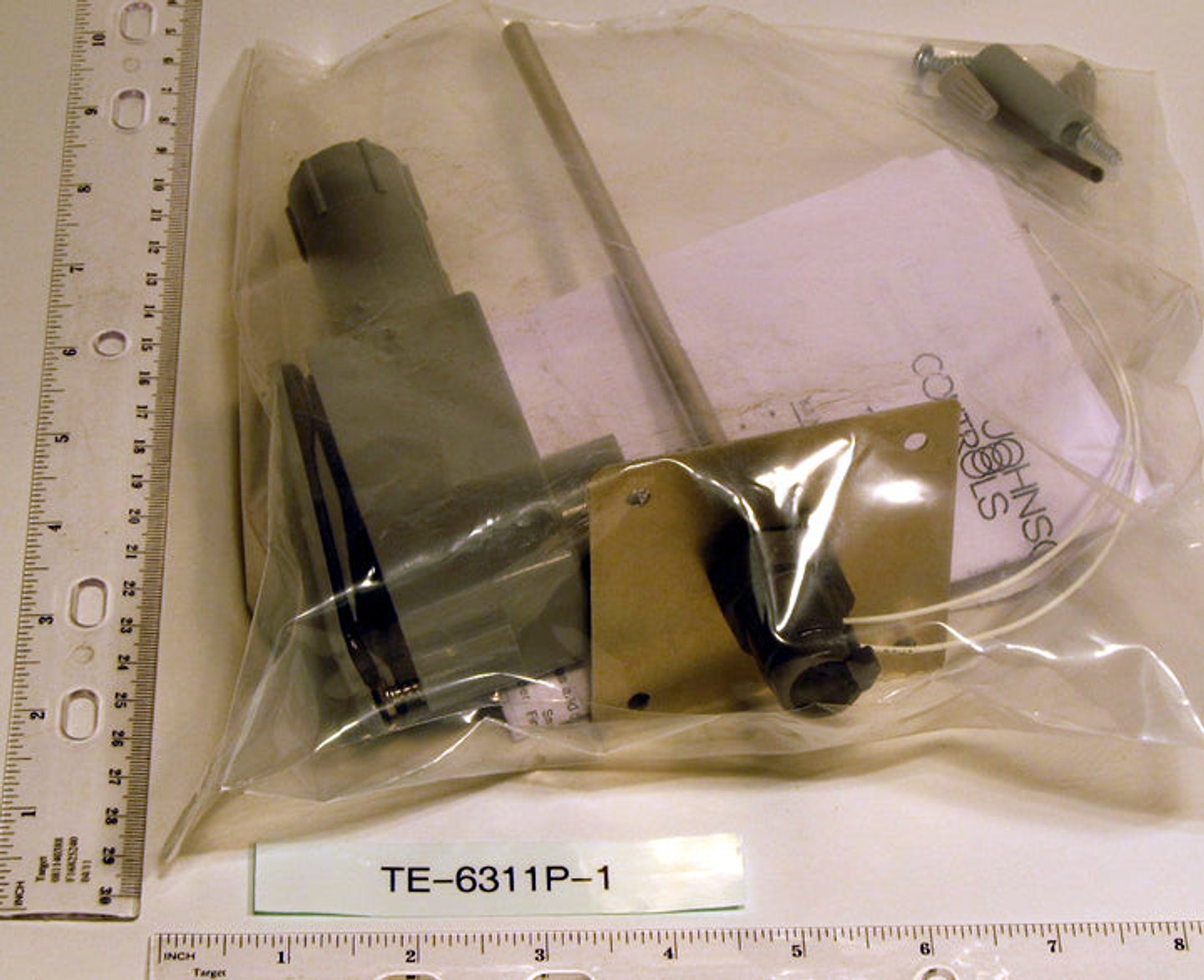

Johnson Controls TE-6311P-1 Temperature Sensor

The Johnson Controls TE-6311P-1 Temperature Sensor is a precision device ideal for duct and plenum installations. This temperature sensor delivers dependable monitoring across a wide -50 to 220°F range with an accuracy of ±0.34°F at 70°F.

With a 1/2-14 inch female threaded process connection, nickel wetted material, and a compact plastic enclosure, the TE-6311P-1 is UL 1955 approved for safe use in electrical boxes and control panels. Designed for duct mounting, it offers straightforward wiring and reliable performance in room or space temperature monitoring.

• Process connection: 1/2-14 inch female threaded
• Temperature range: -50 to 220°F (-46 to 104°C) operating
• Accuracy: ±0.34°F at 70°F
• Wetted material: Nickel
• Sensor type: 1 kΩ Nickel wire
• Electrical connection: 22 AWG, 0.6 mm diameter x 6 in length
• Probe length: 8 inches
• Enclosure: Plastic (UL 1955)
• Mounting: Duct
• Dimensions: 1.38" W x 2.75" D x 5.97" H
• Applications: Room/Space temperature, Plenum, Electrical box
• Weight: 0.4 lb
