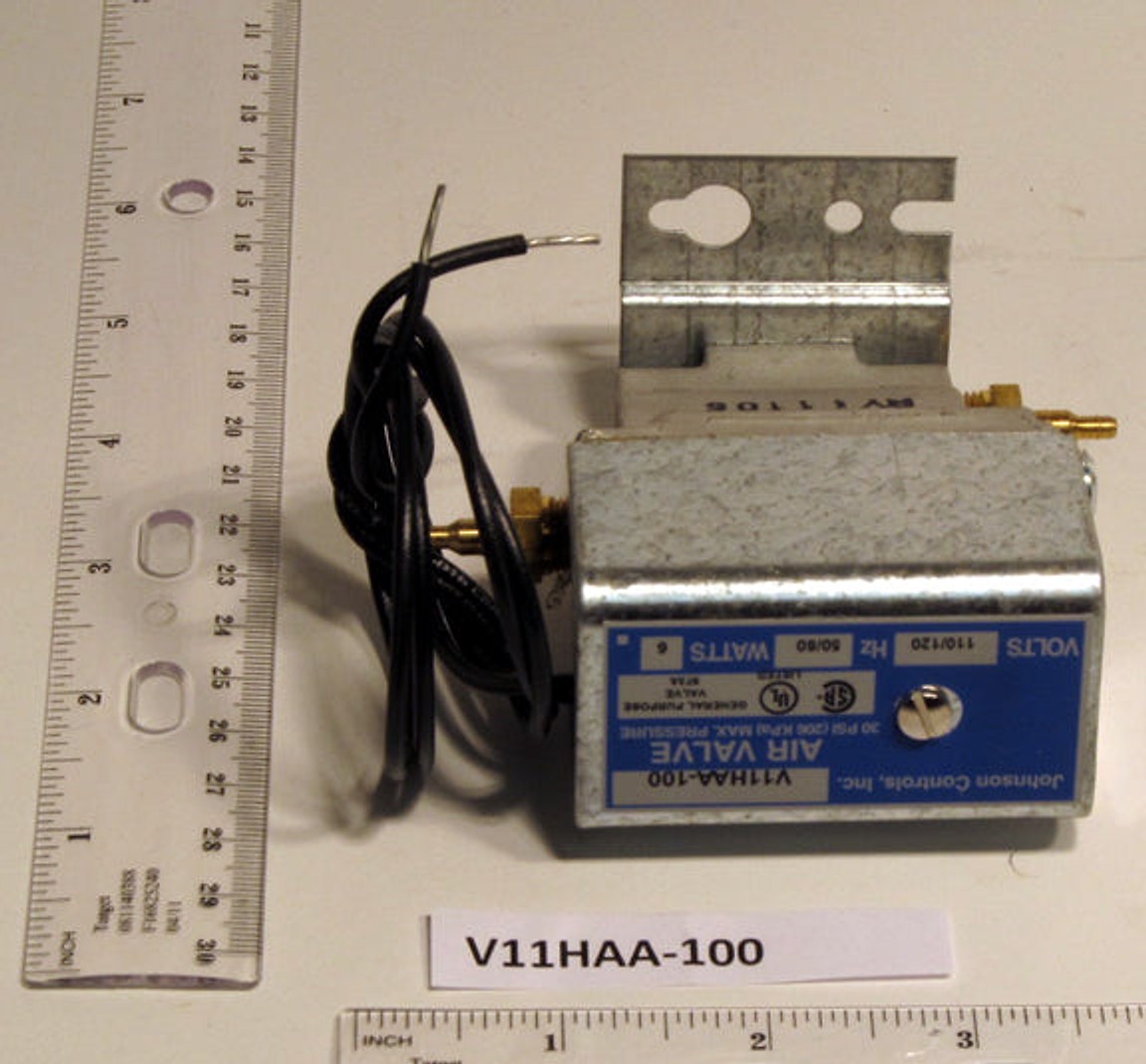

Johnson Controls V11HAA-100 Solenoid Valve

The Johnson Controls V11HAA-100 Solenoid Valve is a compact, 3-way electric control valve designed for reliable pneumatic systems. Built with a die-cast aluminum body, this valve combines durable construction with precise flow control for everyday automation tasks.

Operating from 110/120 VAC at 50/60 Hz, it delivers a clean 1.5 CFM flow at up to 30 PSIG, handling clean air reliably. The 1/4 inch barbed x 1/8 inch female threaded ports support versatile plumbing, while the 2-position action with a positive air seal ensures tight shutoff in both NO and NC configurations. The device is UL-listed and designed for standard pneumatic-electric circuits, with a manual drain for easy venting and an 18 inch wiring lead for straightforward installation.

• Type: 3-way solenoid valve with NO/NC positions
• Ports: 1/4" barbed x 1/8" female threaded
• Material: Die-cast aluminum body
• Electrical: 110/120 VAC, 6 W, 18" wiring lead
• Flow & Pressure: 1.5 CFM at up to 30 PSIG
• Drain: Manual
• Application: Pneumatic-electric circuit
• Compliance: UL-listed
