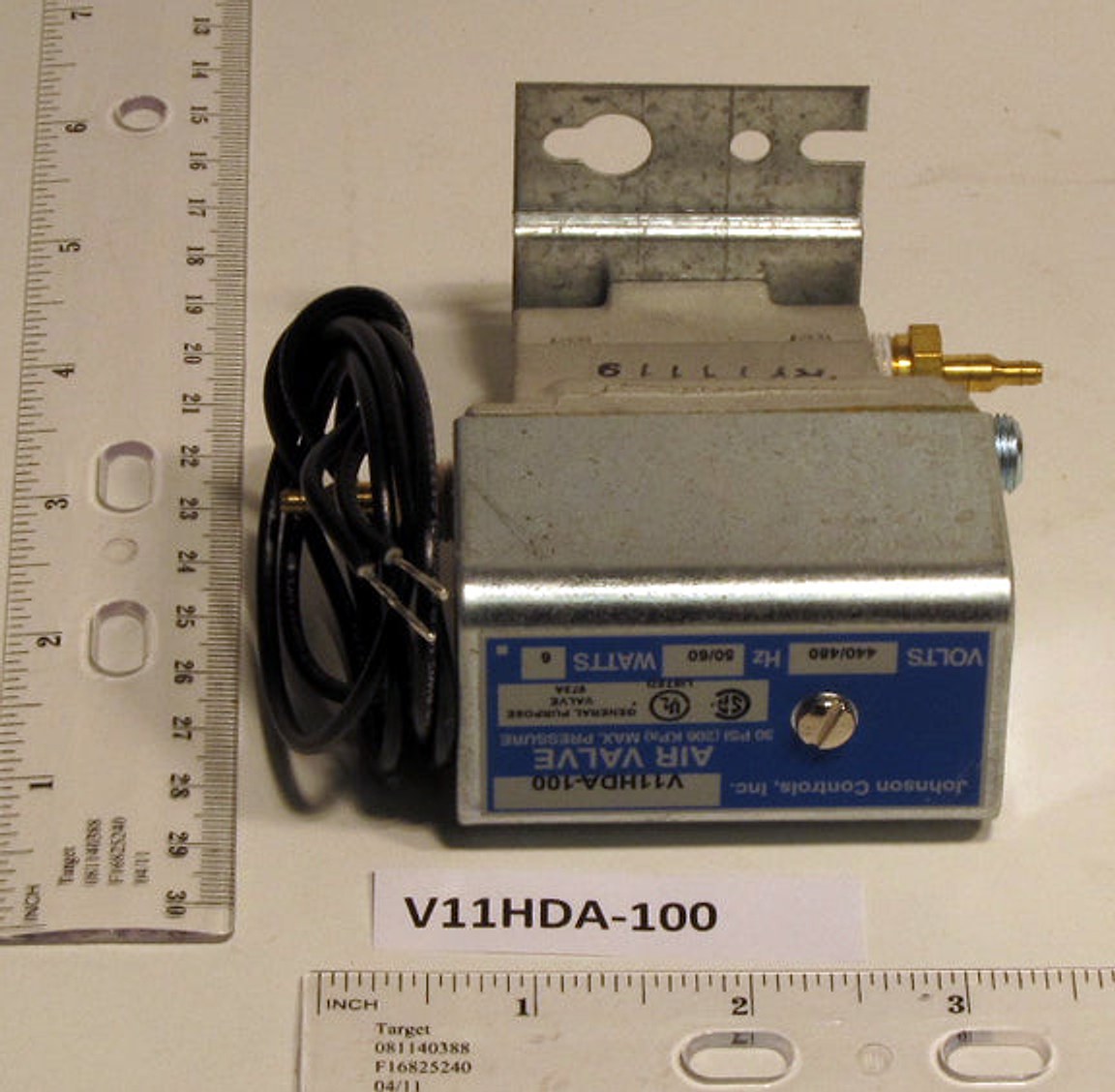

Johnson Controls V11HDA-100 Solenoid Valve

The Johnson Controls V11HDA-100 Solenoid Valve delivers reliable pneumatic control in a rugged 3-Way design. With NO/NC positions, a die-cast aluminum body, and a 1/4" barbed x 1/8" female thread port configuration, this valve is built for versatile air handling in pneumatic electric circuits.

Operating specs include 440/480 VAC input at 50/60 Hz, 6 watts power consumption, and a 1.5 CFM flow rating at up to 30 PSIG. The device handles air media up to 60°C and features a manual drain, 18-inch wire lead, and a 7/8-inch conduit opening. UL listed and finished in a dull gray for serviceable installation.

• 3-Way valve with NO/NC positions for flexible operation
• Die-cast aluminum body ensures durability
• Ports: 1/4" barbed x 1/8" female thread for versatile plumbing
• Low power consumption (6 W) at 440/480 VAC
• 2-position action with positive air seal provides tight shutoff
• Manual drain for quick air release
• UL-listed standard-compliant
