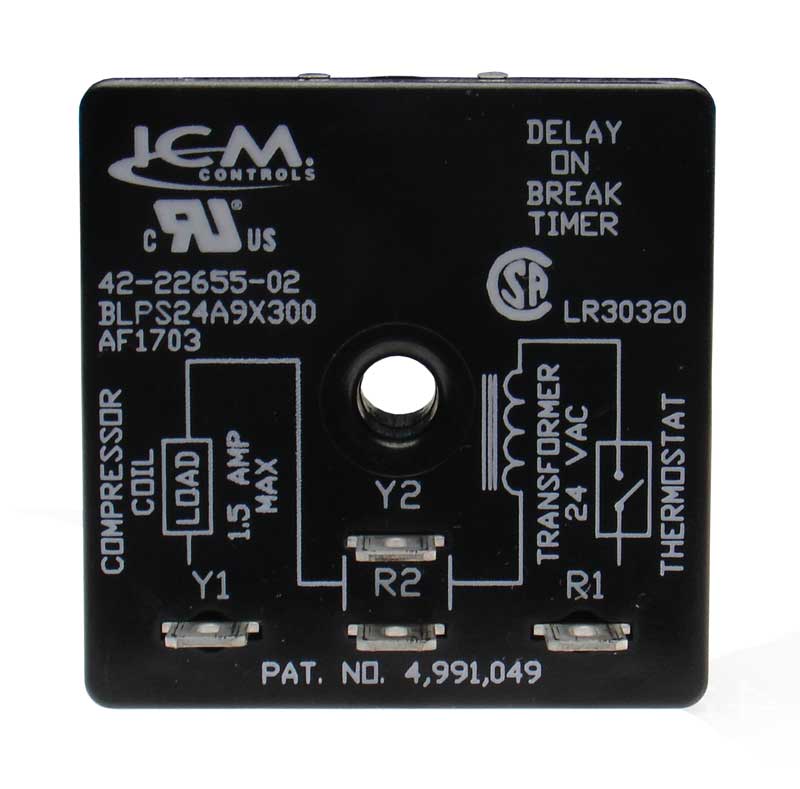

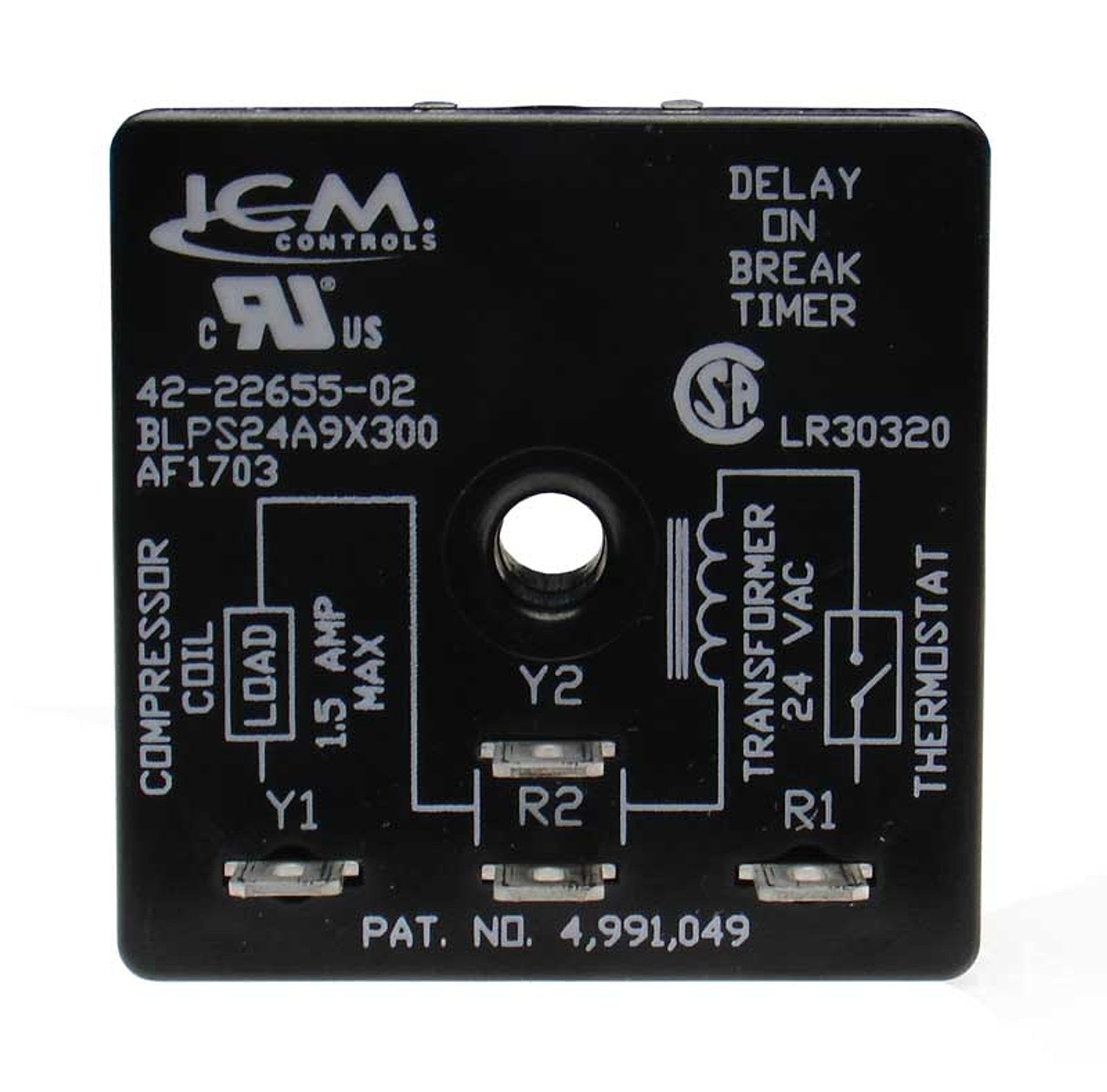

Rheem Furnace Parts 42-22655-02 Time Delay Relay

Time Delay Relay for Rheem furnace systems (model 42-22655-02) delivers reliable, steady-state control for HVAC applications. As a core part of Rheem furnace parts, this Time Delay Relay ensures precise on-delay and on-break timing to protect compressors, fans, and electrical circuits.

Designed for 18-30 V AC within 50/60 Hz systems, it handles up to 1.5 A, and features a fixed 5-minute timing range with on-delay and on-break modes. The 1/4 inch quick-connect terminals simplify installation in tight furnace and cooling setups, while the steadfast design provides dependable, low-wear operation.

• Type: Steady State Time Delay Relay
• Voltage: 18-30 VAC, 50/60 Hz
• Current: 1.5 A
• Timing: 5-minute break time delay
• Mode: On-Delay and On-Break
• Adjustment: Fixed timing
• Terminals: 1/4 inch quick-connect
• Applications: Used on air conditioner and heat pump systems

This Time Delay Relay is a dependable upgrade for ongoing HVAC maintenance, pairing easily with existing Rheem furnace parts to extend equipment life and reduce cycling wear on compressors and fans in air conditioner and heat pump setups.
