Rheem Furnace Parts 42-23114-06 Control Relay

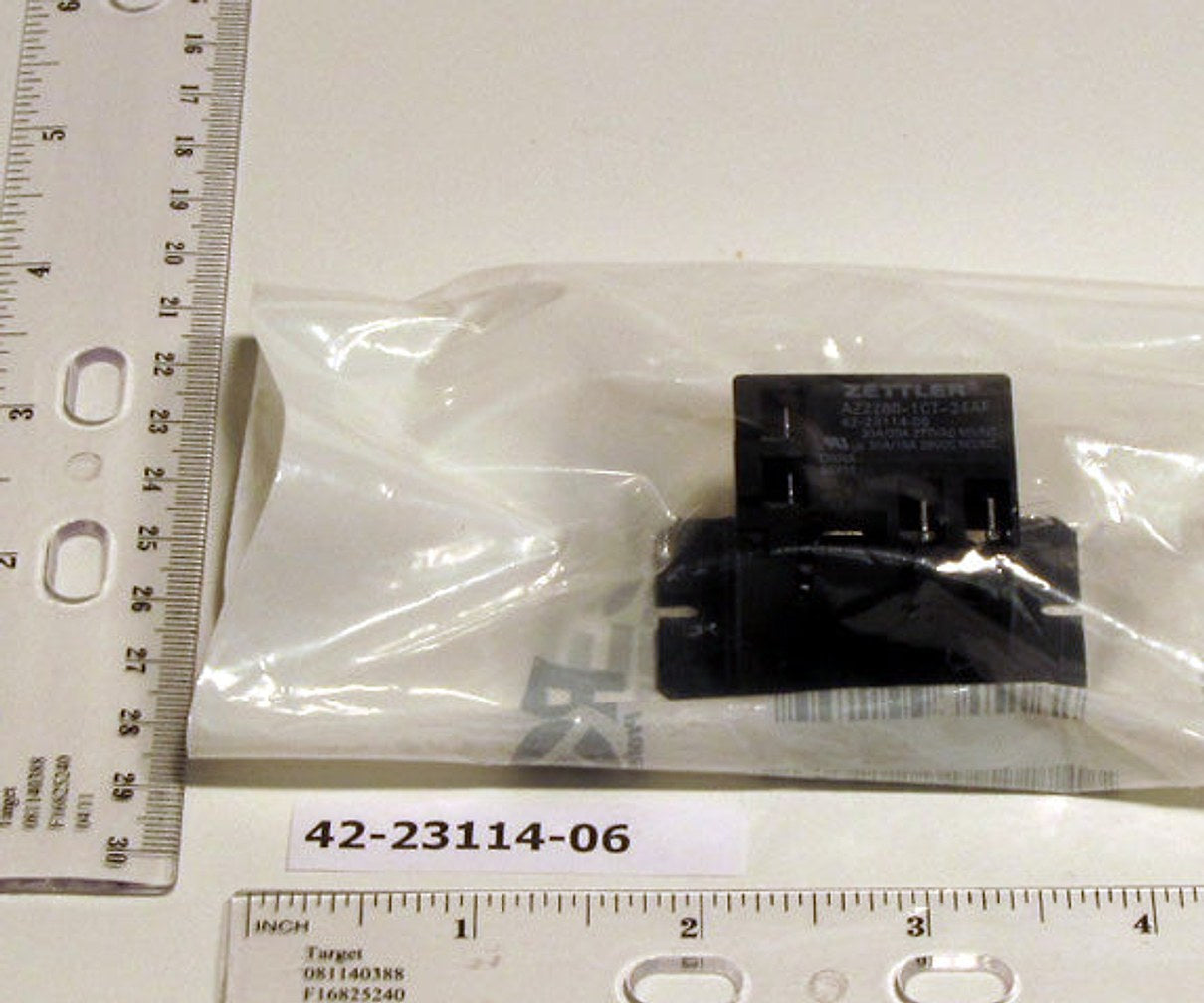

Rheem 42-23114-06 Control Relay is a compact, sealed-case relay engineered for dependable furnace control. This AC-operated unit uses a 24 VAC coil and provides SPDT NO/NC contacts for versatile switching in Rheem furnaces and compatible HVAC equipment.

Key specs support flexible furnace control, including 24 VAC coil and SPDT NO/NC operation, 120/230 VAC switching, and solid load handling across common furnace ratings.

• Coil voltage: 24 VAC (50/60 Hz) for reliable control
• Contact configuration: SPDT with NO/NC for flexibility
• Contact ratings: 120/230 VAC switching; 10/20 A at 277 VAC full-load; 33/60 A at 230/277 VAC locked rotor
• Terminals: 3/16" quick-connect (coil) and 1/4" quick-connect (contacts)
• Sealed case: Small, sealed enclosure for dust and moisture resistance
• Power compatibility: 1 or 1/4 HP at 120 V; 1/2 or 2 HP at 230 V
• Compatibility: Designed as a Rheem furnace part and fits compatible HVAC systems

Engineered for reliability, this control relay integrates smoothly into most Rheem furnace configurations and delivers long-term performance.
