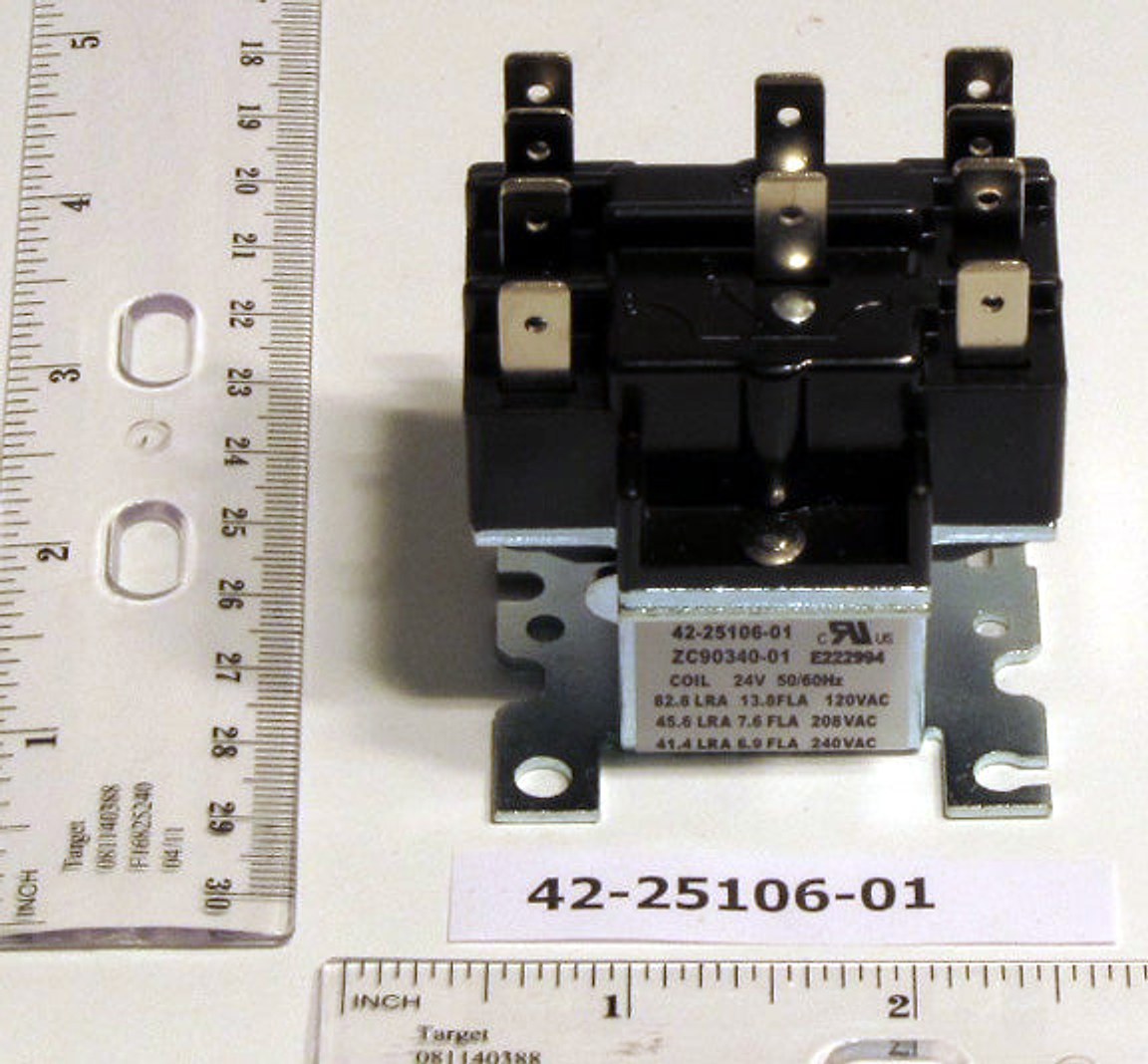

Rheem Furnace Parts 42-25106-01 Control Relay

Rheem Furnace Parts 42-25106-01 Control Relay is an open-coil, AC-operated relay designed for reliable furnace control. It uses a 24 Volt AC coil at 50/60 Hz and a DPDT contact configuration to switch control circuits with precision, delivering dependable performance in HVAC systems.

Designed to handle a range of loads, it features a 120/230 Volt contact voltage rating and multiple current levels: 13.8 A at 120 V, 6.9 A at 230 V (full load); 82.8 A at 120 V, 41.4 A at 230 V (locked rotor); and 15 A at 230/277 V (resistive). The unit's DPDT arrangement provides two normally open and normally closed contacts for flexible control, while 1/4 inch quick-connect terminals simplify wiring during installation.

Reliable, durable, and easy to install, this relay is a solid choice for replacement or upgrade in Rheem furnace assemblies.

Key Features

• Open Coil, AC Operated for steady furnace control
• Coil Voltage 24V AC at 50/60 Hz
• DPDT Contacts 2 NO/NC configurations for flexible switching
• Voltage & Load Range supports 120/230V loads; 13.8A @120V, 6.9A @230V
• Terminals 1/4 inch Quick Connect
